Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+18K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting up to 12 indoor units for versatile climate control. Paired with four MSZ-GX06NL and one MSZ-GX09NL wall-mounted air handlers, this setup ensures optimal heating and cooling for various room sizes. The MSZ-GX18NL air handler adds additional capacity for larger spaces, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit enhances performance and installation efficiency, making this package ideal for both residential and commercial applications.

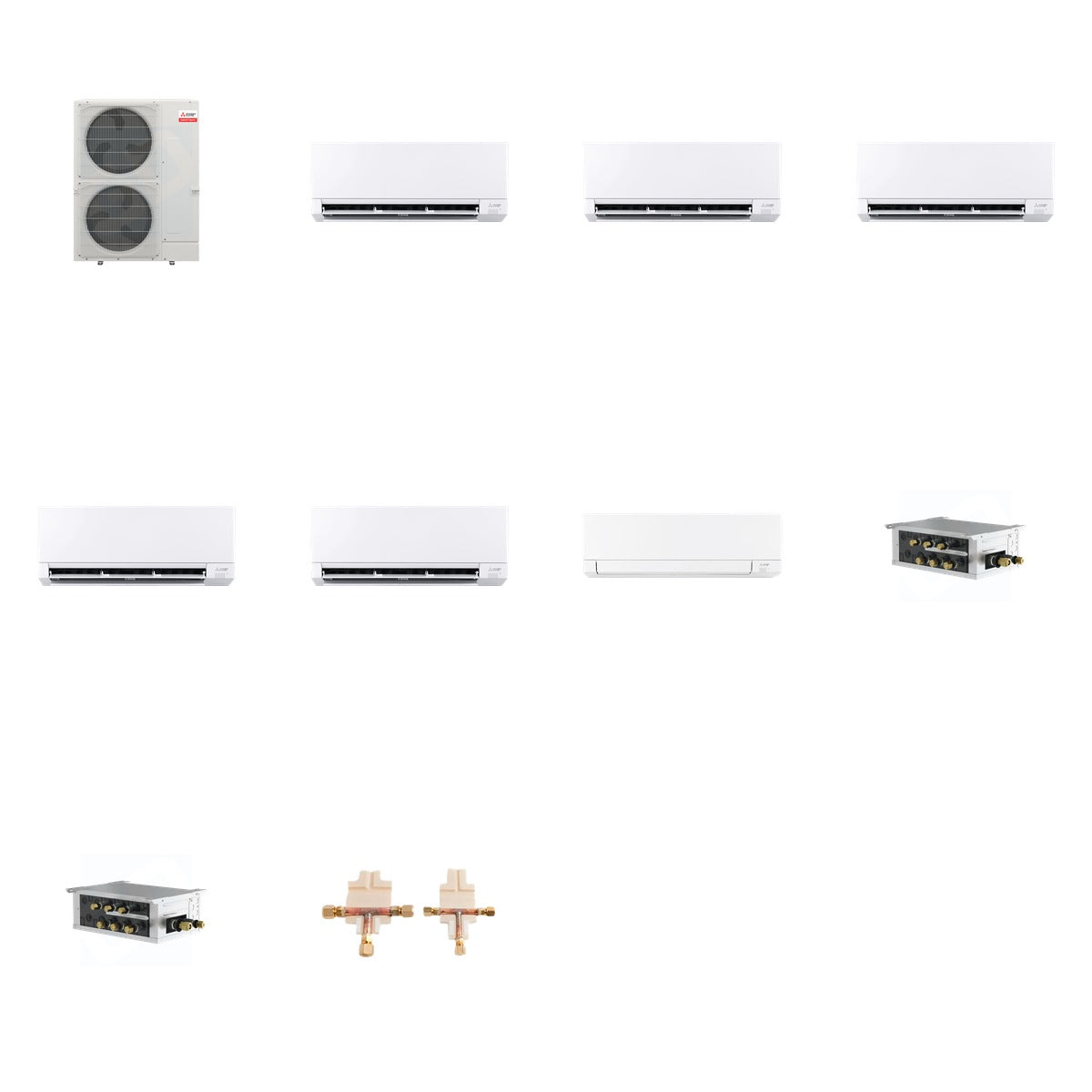

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8-12 zones, SEER2 up to 21.50
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, R454B refrigerant, SEER2 up to 28.4
• MSZ-GX18NL: 18,000 BTU, R454B refrigerant, SEER2 up to 22.5
• PAC-LMA50BC: Connects up to 5 indoor units, 208/230V
• PAC-LMA30BC: Connects up to 3 indoor units, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit is compatible with various Mitsubishi Electric indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
