Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+15K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump serves as the backbone, supporting up to eight indoor units, while the MSZ-GX06NL and MSZ-GX15NL wall-mounted air handlers provide precise temperature control for individual spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow, ensuring balanced performance across all connected units. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit ensures a secure and efficient refrigerant transition, making this collection ideal for both residential and commercial applications.

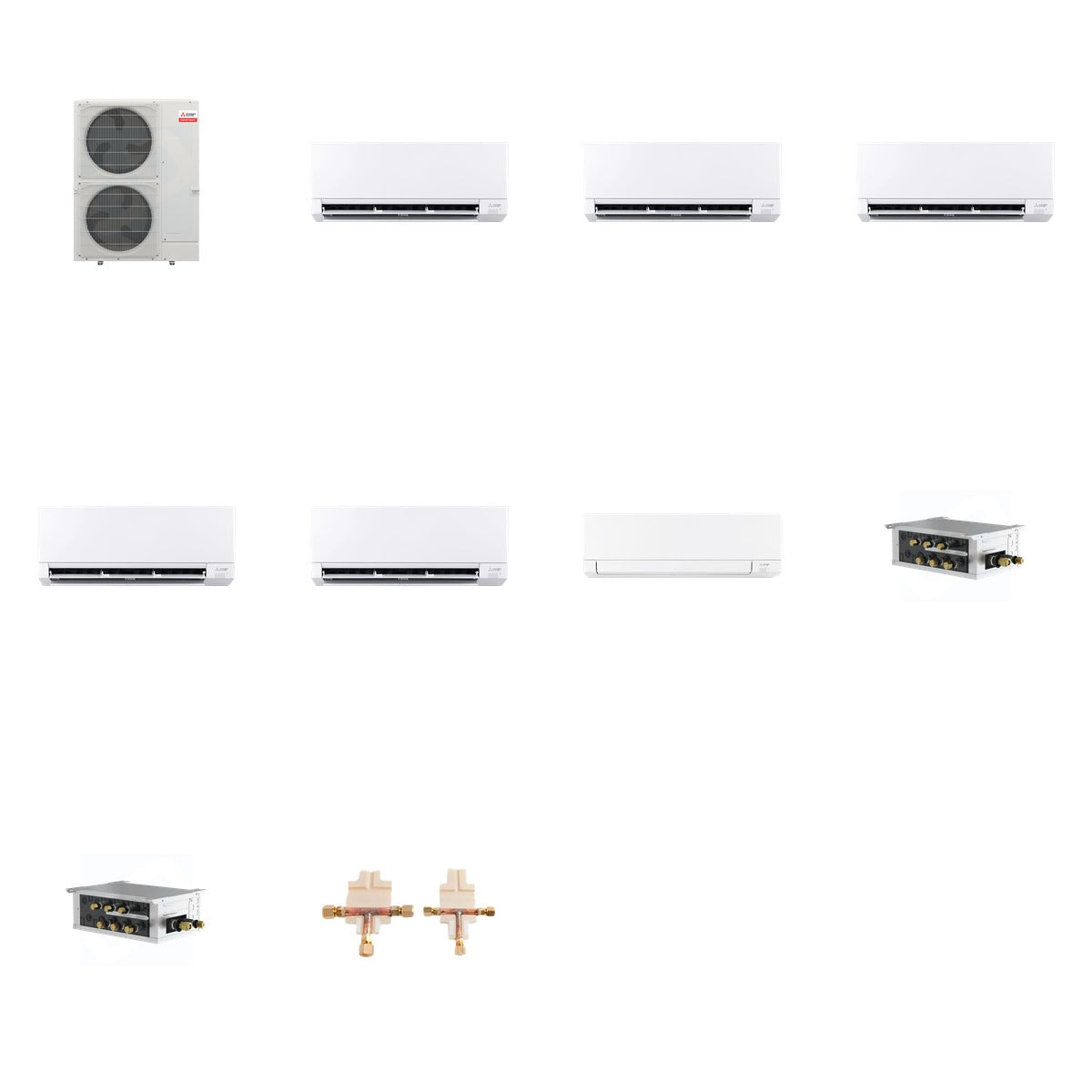

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, cooling/heating, 8 zones
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, 250 sq ft coverage, Wi-Fi enabled
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, 586 CFM airflow, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R410A/R454B

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial spaces. The components are compatible with Mitsubishi Electric's mini-split systems, ensuring seamless integration and optimal performance across various indoor configurations.
