Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+12K+15K+15K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of connecting to multiple indoor units for optimal climate control across various spaces. Complementing this are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL) that provide targeted heating and cooling, each equipped with advanced features like built-in Wi-Fi and energy-saving modes. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant management, along with a distribution kit (MSDD-50AR2-E) to ensure balanced airflow. This collection is perfect for both residential and commercial applications, offering flexibility and efficiency for any environment.

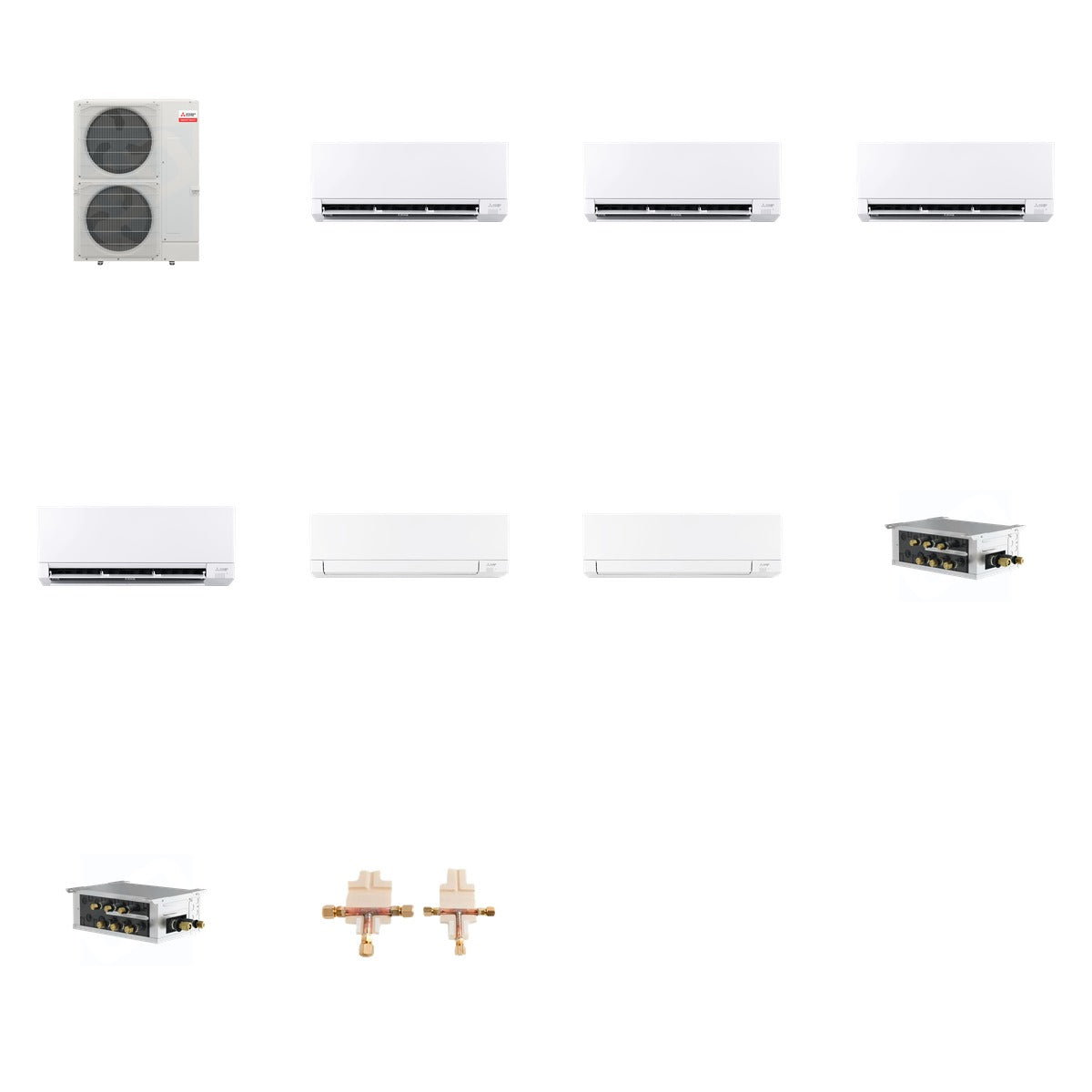

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8-12 zones, SEER2: 21.50
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2: Up to 28.4, Wi-Fi enabled
• MSZ-GX12NL: 12,000 BTU, R454B refrigerant, SEER2: Up to 28.4, Wi-Fi enabled
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, SEER2: Up to 28.4, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, suitable for both residential and commercial applications. The outdoor heat pump unit connects seamlessly with the wall-mounted air handlers, allowing for efficient heating and cooling across various spaces. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature control, making this setup perfect for diverse environments.
