Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+12K+12K+18K

Description

This comprehensive HVAC bundle is designed for efficient heating and cooling across multiple zones, making it ideal for both residential and commercial applications. The centerpiece is the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, which supports up to eight indoor units, ensuring optimal climate control in various spaces. Complementing this unit are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX18NL) that provide tailored comfort for different room sizes. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant management, as well as the MSDD-50AR2-E branch pipe distribution kit for seamless installation. Together, these components create a powerful, energy-efficient system that adapts to your specific needs.

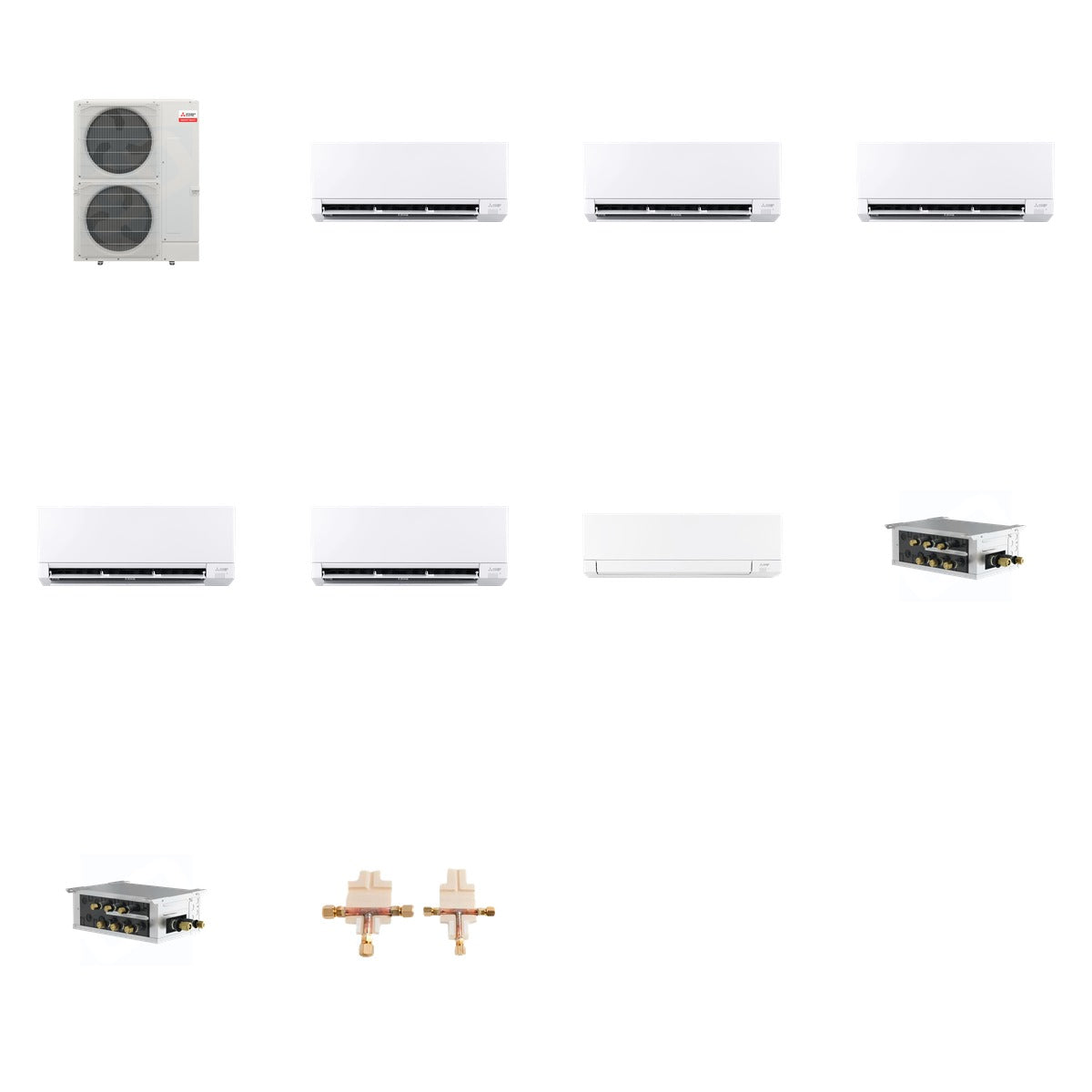

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2: 21.50
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2: Up to 28.4, Wi-Fi enabled
• MSZ-GX12NL: 12,000 BTU, R454B refrigerant, SEER2: Up to 28.4, Wi-Fi enabled
• MSZ-GX18NL: 18,000 BTU, R454B refrigerant, SEER2: 22.5, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A and R-454B

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor spaces. The outdoor unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers can be configured in both single and multi-zone setups. The branch boxes and distribution kit ensure effective refrigerant flow, enhancing system performance and comfort.
