Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+12K+12K+15K

Description

This comprehensive bundle features essential components for optimizing your HVAC system, particularly for multi-zone mini-split configurations. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the backbone, supporting up to eight indoor units, while the MSZ-GX series air handlers (6k, 12k, and 15k BTU) provide efficient heating and cooling for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow, ensuring balanced performance across multiple zones. Additionally, the MSDD-50AR2-E distribution kit enhances installation efficiency, making this bundle ideal for both residential and commercial applications.

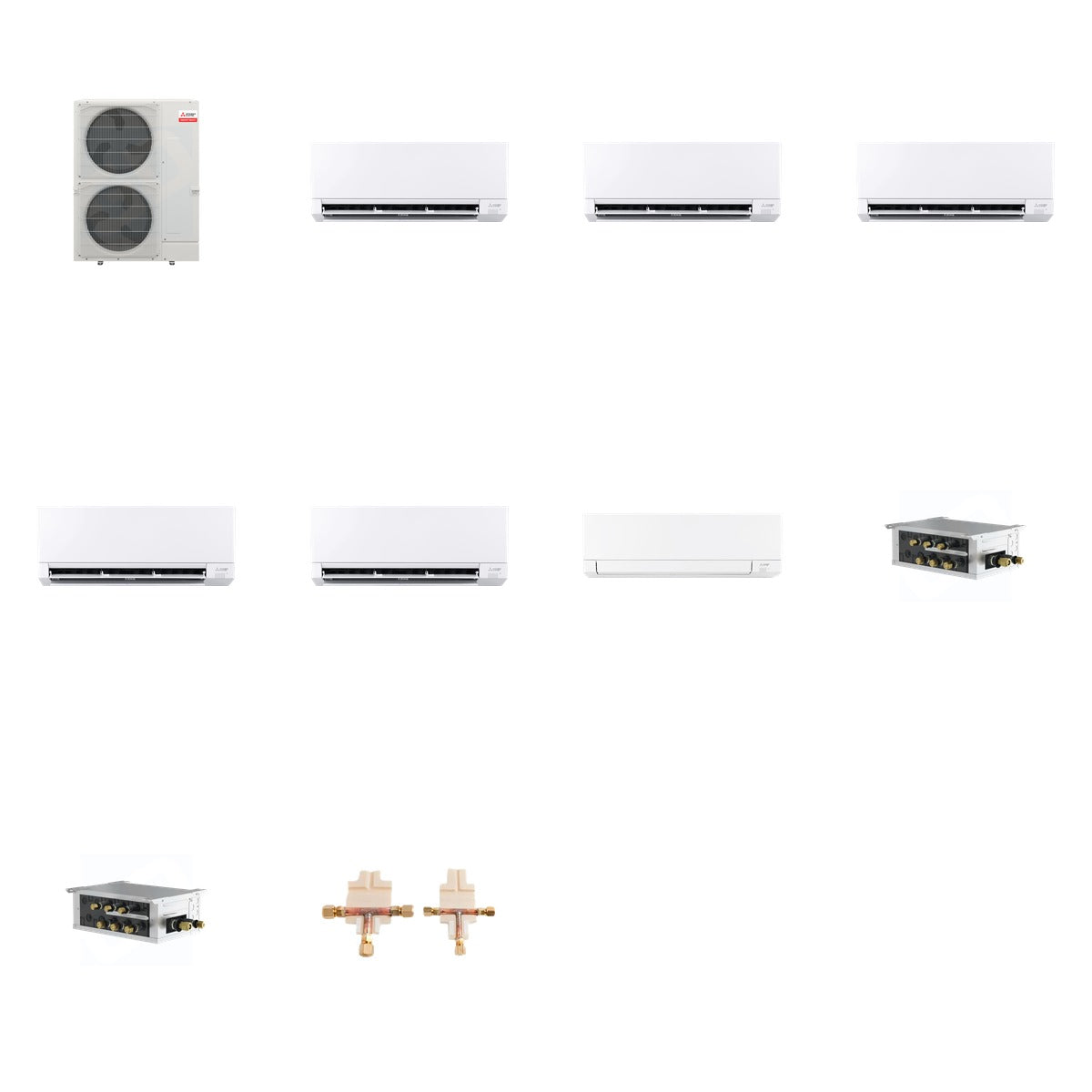

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, supports up to 12 zones
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, whisper-quiet operation
• MSZ-GX15NL: 15,000 BTU, advanced filtration, Econo Cool mode
• PAC-LMA50BC: 5 ports, electronic LEVs, voltage 208/230V
• PAC-LMA30BC: 3 ports, balanced refrigerant flow, voltage 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-454B

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing efficient heating and cooling solutions for residential and commercial spaces. The components are compatible with Mitsubishi Electric's MXZ outdoor units and can be used in various configurations to meet specific climate control needs.
