Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle is designed for optimal performance in multi-zone heating and cooling applications. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this system can efficiently support up to eight indoor zones, making it ideal for both residential and commercial settings. Complementing this powerhouse is a selection of wall-mounted air handlers, including the MSZ-FX09NL and MSZ-FX12NL, which provide advanced filtration and smart control features. The bundle also includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow and a distribution kit (MSDD-50AR2-E) to ensure balanced performance across all connected units. Together, these components create a versatile and efficient HVAC solution.

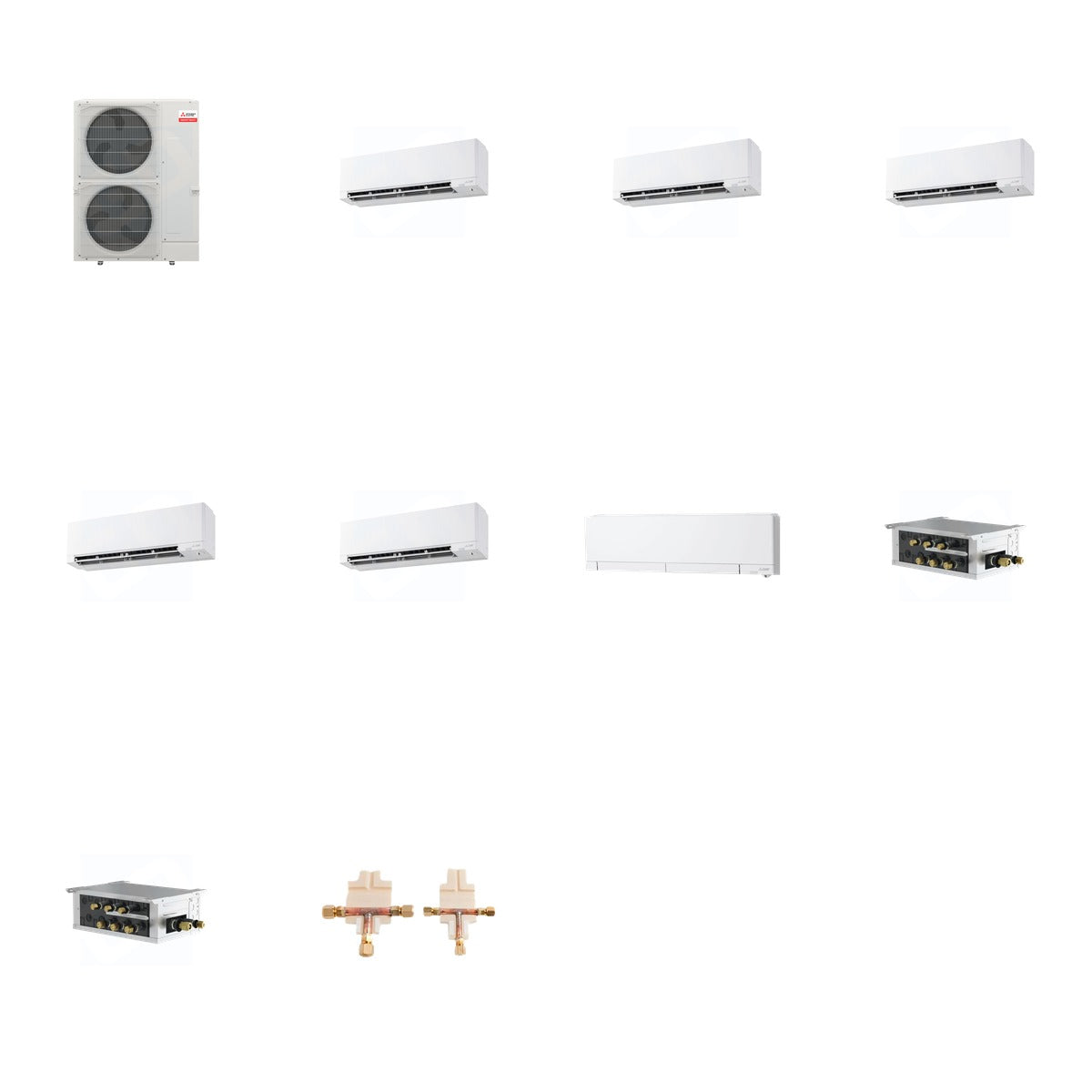

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, cooling capacity 42,000 BTU, heating capacity 48,000 BTU, SEER2 up to 21.50
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, minimum sound level 20 dB, Wi-Fi enabled
• MSZ-FX12NL: 12,000 BTU cooling, 13,200 BTU heating, SEER2 up to 35, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, compatible with MXZ model, electronic LEVs for refrigerant flow management
• PAC-LMA30BC: 3 ports, ensures balanced refrigerant flow, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A and R-454B

Use & Compatibility

This bundle is perfect for both residential and commercial HVAC systems requiring efficient multi-zone heating and cooling. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers are designed for seamless integration into single or multi-zone configurations. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature maintenance across all connected indoor units.
