Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+9K+9K

Description

This comprehensive bundle is designed for those looking to create an efficient multi-zone heating and cooling system. It includes the Mitsubishi Electric MXZ-SM48NL outdoor heat pump, which serves as the powerhouse for up to eight indoor units, ensuring optimal performance across various spaces. Complementing this unit are the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, providing versatile heating and cooling options for individual rooms. The bundle also features two branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow effectively, along with the MSDD-50AR2-E distribution kit for seamless installation. Together, these components offer an integrated solution for both residential and commercial applications, ensuring comfort and efficiency.

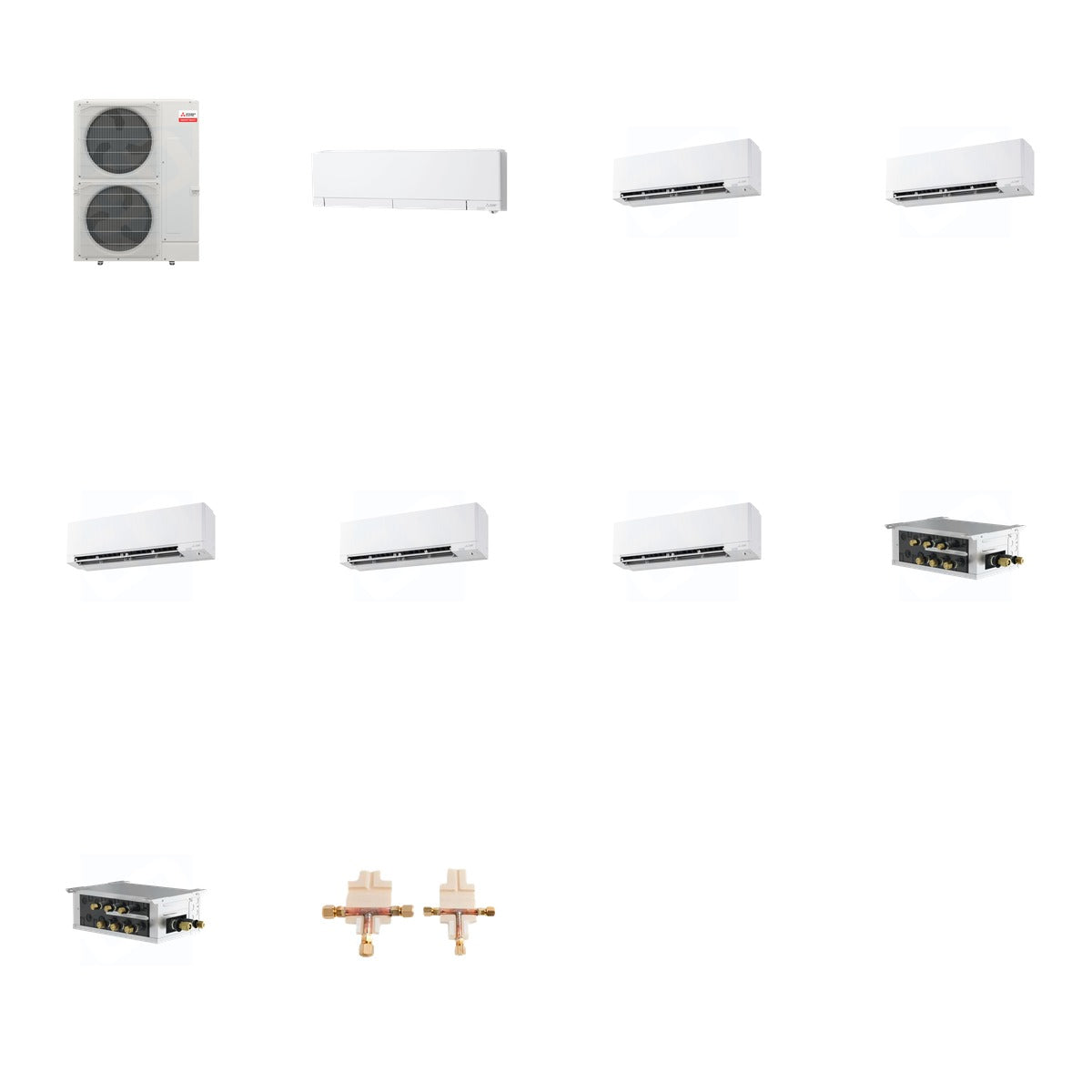

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 182 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, up to 2000 sq ft coverage
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2: up to 35, covers up to 250 sq ft
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, SEER2: up to 35, covers up to 350 sq ft
• PAC-LMA50BC: 5 ports, compatible with MXZ units, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for multi-zone heating and cooling applications, ideal for both residential and commercial settings. The outdoor heat pump connects seamlessly with the included wall-mounted units, while the branch boxes and distribution kit ensure efficient refrigerant management. Compatible with Mitsubishi Electric's M-Series and City Multi systems, this setup provides flexibility and comfort across various indoor environments.
