Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed for optimal performance in multi-zone heating and cooling applications. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this package supports up to eight indoor zones, making it perfect for both residential and commercial settings. The included wall-mounted air handlers, the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL, deliver high-efficiency heating and cooling with advanced filtration systems and smart technology. The bundle also includes two branch boxes, the PAC-LMA50BC and PAC-LMA30BC, which facilitate efficient refrigerant distribution, ensuring that every indoor unit operates at peak performance. This combination of units provides a complete solution for maintaining a comfortable climate across multiple spaces.

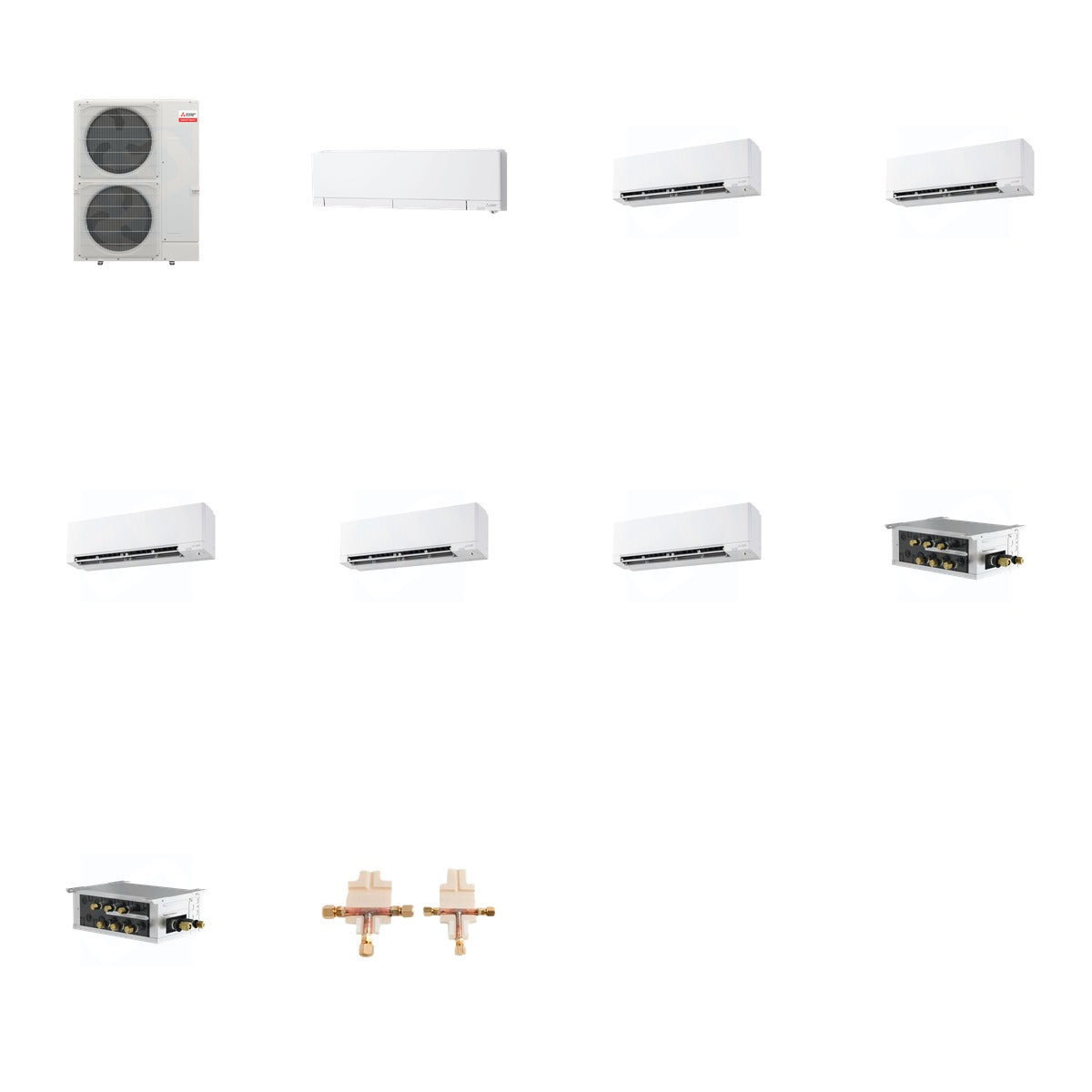

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 48,000 BTU
• Heating Capacity: Up to 18,000 BTU
• Refrigerant Type: R-454B
• SEER2 Rating: Up to 35
• HSPF2 Rating: Up to 13.3
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM48NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-FX Series): 39.27 W x 9.75 D x 12 H
• Weight: 36.4 lbs (MSZ-FX units)
• Branch Box Ports: 3 and 5

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor environments. The outdoor unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers are designed for seamless integration into both single-zone and multi-zone setups. Ideal for residential and commercial applications, this bundle ensures optimal climate control across multiple rooms.
