Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+12K+12K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the backbone of the system, supporting multiple indoor units for versatile climate control. Complementing this outdoor unit are the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL wall-mounted air handlers, which deliver exceptional performance and comfort in various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit facilitates seamless installation. Together, these components create a powerful and efficient multi-zone HVAC system.

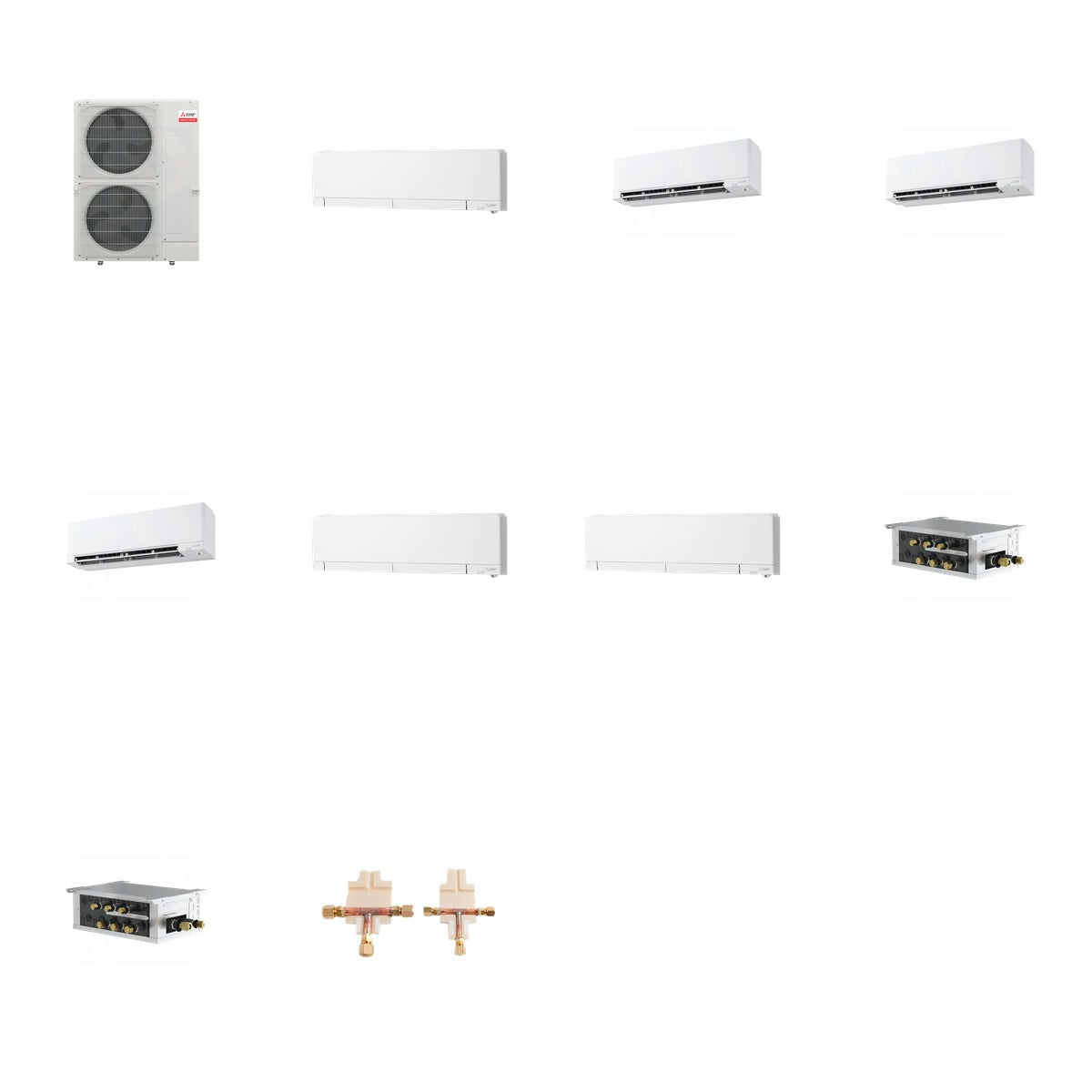

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU, R454B refrigerant
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, Heating Capacity: 9,000 BTU, R454B refrigerant
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, Heating Capacity: 12,000 BTU, R454B refrigerant
• MSZ-FX12NL: 12,000 BTU, SEER2: Up to 35, Heating Capacity: 13,200 BTU, R454B refrigerant
• PAC-LMA50BC: 5 ports, 208/230 Volts, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230 Volts, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor heat pump unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control. Ideal for both residential and commercial applications, this system is compatible with Mitsubishi Electric's M-Series and City Multi indoor units.
