Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K

Description

This comprehensive bundle features essential components for creating a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of supporting up to eight indoor units, making it ideal for both residential and commercial applications. Paired with the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, this setup ensures optimal heating and cooling for various room sizes. The included PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all connected units. Together, these products provide a complete solution for efficient climate control.

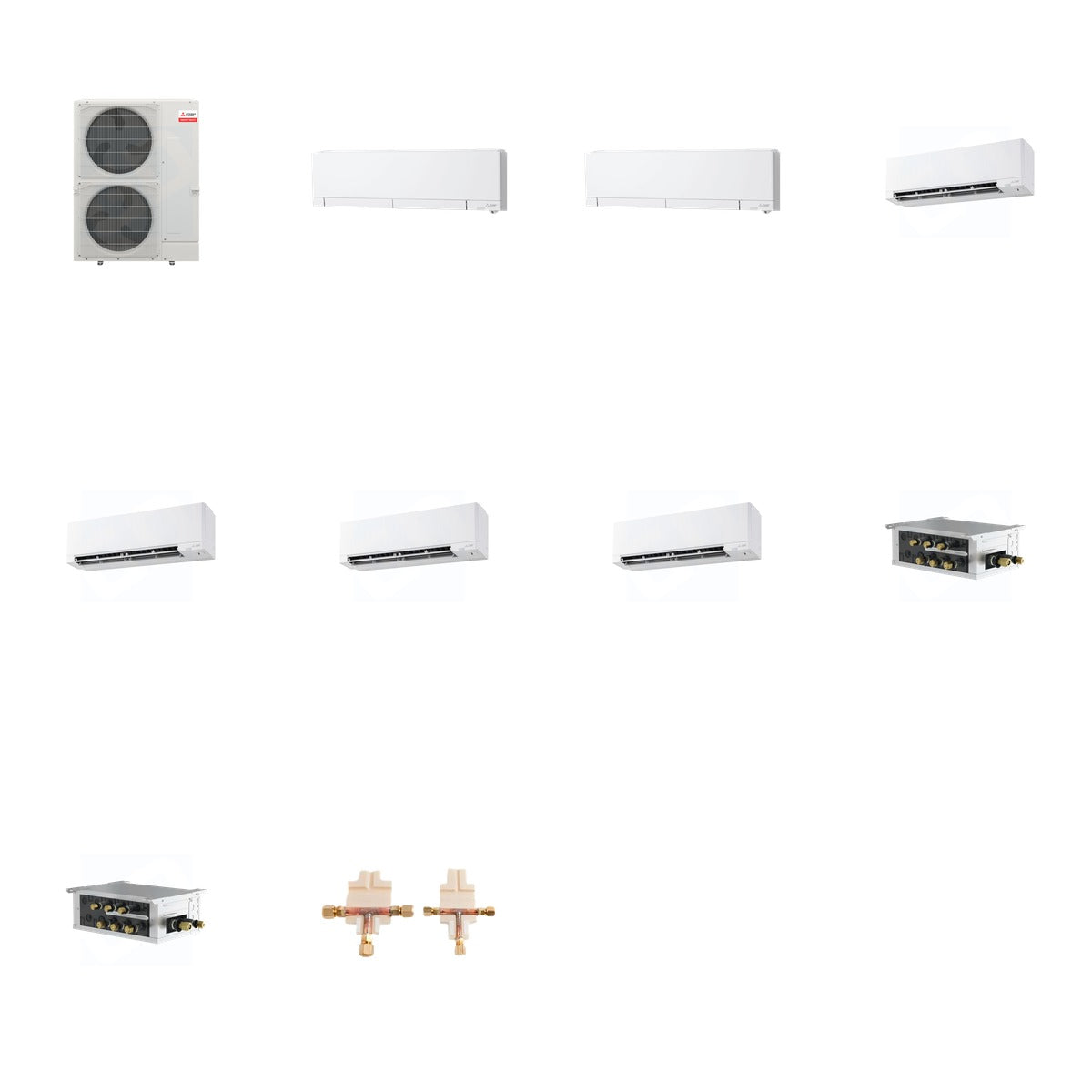

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 145.6 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, Heating Capacity: 9,000 BTU, Wi-Fi Enabled
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, Heating Capacity: 12,000 BTU, Wi-Fi Enabled
• PAC-LMA50BC: 5 ports, Voltage: 208/230V, Compatible with MXZ model
• PAC-LMA30BC: 3 ports, Voltage: 208/230V, Compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone mini-split HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series and City Multi indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control. Ideal for both residential and commercial applications, this setup guarantees comfort and energy efficiency.
