Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed for both residential and commercial applications, featuring a selection of high-performance Mitsubishi Electric units that work seamlessly together. The centerpiece is the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, which supports multiple indoor units for efficient climate control across various zones. Paired with the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers, this bundle ensures optimal heating and cooling for spaces ranging from small rooms to larger open areas. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate smooth refrigerant flow, while the MSDD-50AR2-E distribution kit enhances system efficiency. Together, these components create a versatile and effective HVAC solution for any environment.

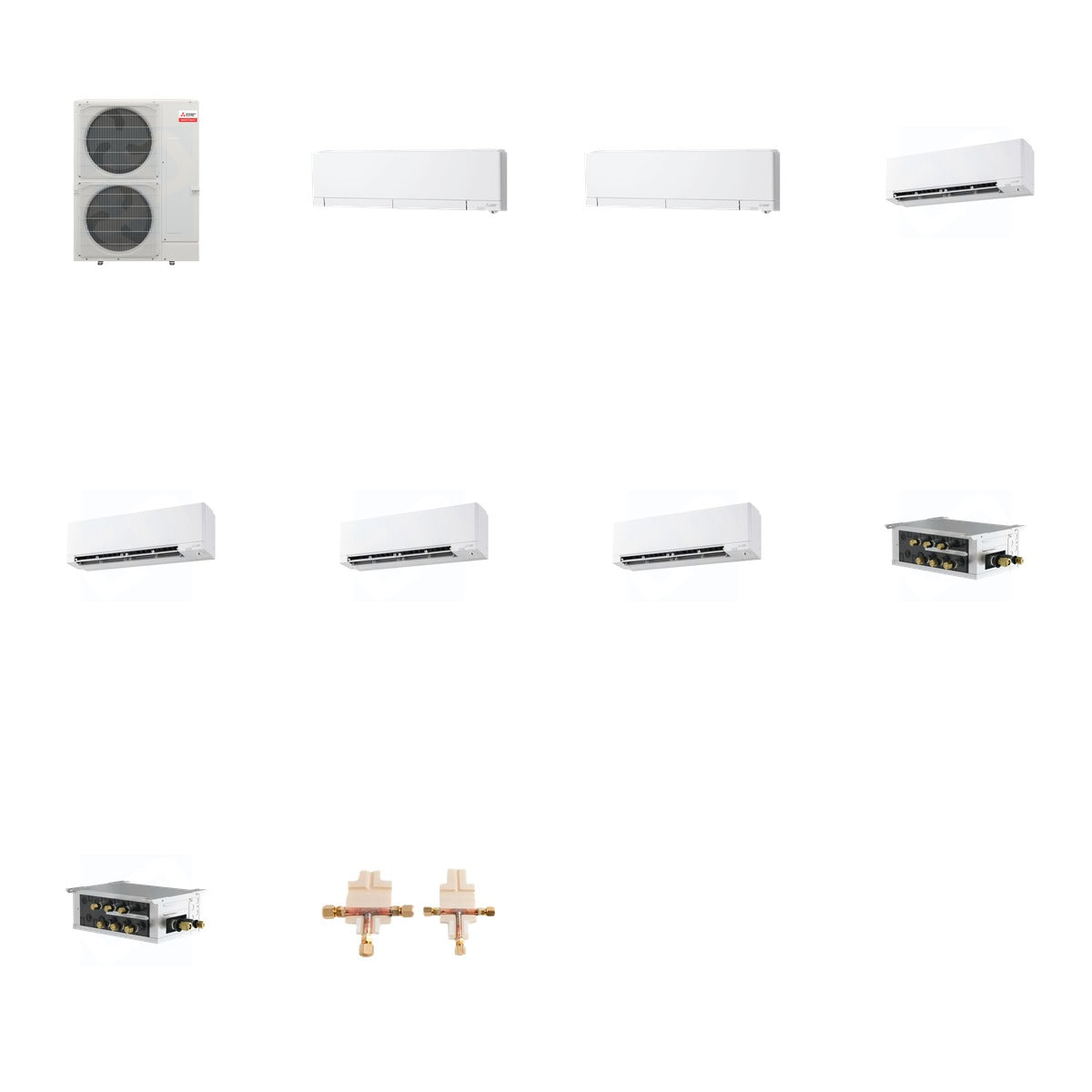

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20.0, R454B refrigerant
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, supporting both residential and commercial environments. The outdoor heat pump unit is compatible with various indoor units, allowing for tailored climate control in different zones. The branch boxes and distribution kit ensure efficient refrigerant management, making this system suitable for a wide range of installations.
