Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle features a selection of high-efficiency Mitsubishi Electric products designed to provide optimal heating and cooling solutions for both residential and commercial spaces. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting multiple indoor units for customizable climate control. Paired with wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL), this bundle ensures quiet operation and advanced filtration for improved air quality. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a reliable and efficient multi-zone system.

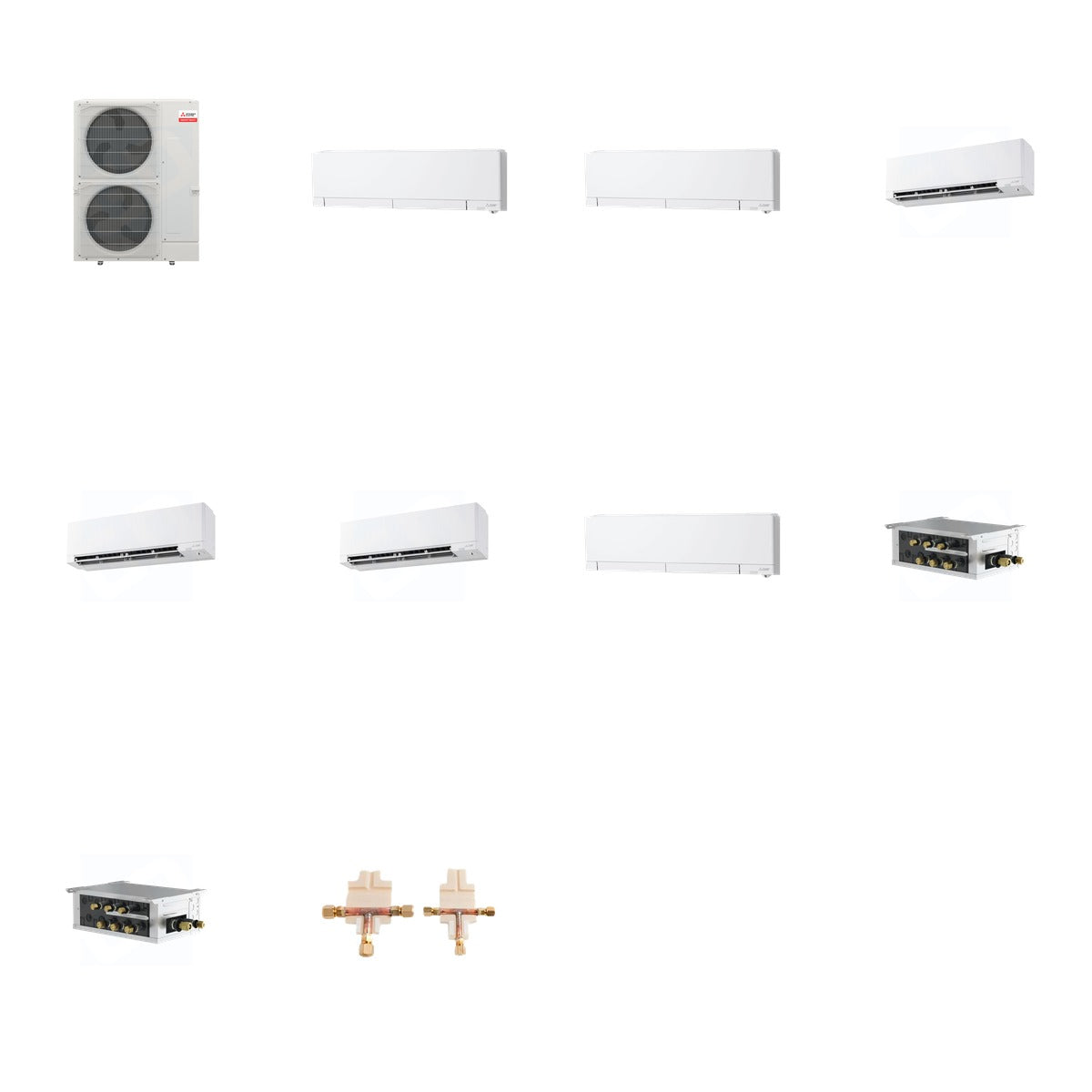

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant, 8 zones
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, R454B refrigerant, 250 sq ft coverage
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, R454B refrigerant, 350 sq ft coverage
• MSZ-FX12NL: 12,000 BTU, SEER2: Up to 35, R454B refrigerant, 450 sq ft coverage
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ units
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, providing flexibility and efficiency for various indoor environments. The outdoor heat pump unit is compatible with multiple indoor units, allowing for tailored climate control in different rooms. The branch boxes and distribution kit enhance refrigerant flow management, ensuring optimal performance across the system.
