Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+15K+15K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC products designed to provide efficient heating and cooling for multi-zone applications. The centerpiece is the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, which supports multiple indoor units and is ideal for both residential and commercial use. Complementing this unit are the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers, offering varying capacities to suit different room sizes. The bundle also includes essential components like the PAC-LMA50BC and PAC-LMA30BC branch boxes for optimal refrigerant management, as well as the MSDD-50AR2-E branch pipe distribution kit to ensure balanced performance across the system. Together, these products create a robust and flexible HVAC solution that meets diverse climate control needs.

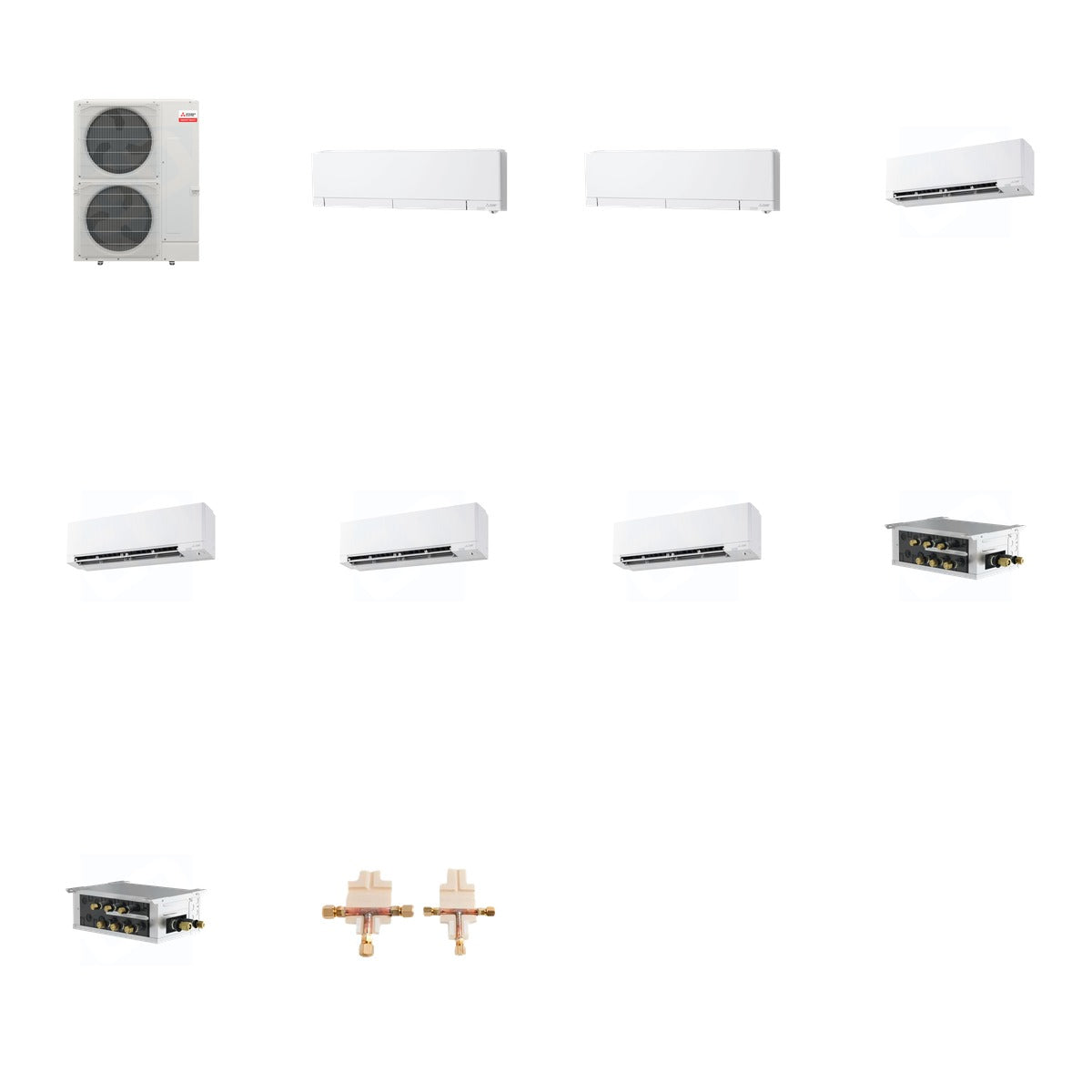

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 72.8 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, up to 12 zones
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20.0, R454B refrigerant
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, R-410A/R-454B compatible

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial applications. The outdoor heat pump unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure efficient refrigerant management and balanced performance across multiple indoor units.
