Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+12K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to deliver efficient heating and cooling for both residential and commercial applications. The MXZ-SM48NL outdoor heat pump unit serves as the backbone of this system, allowing for multi-zone configurations with up to eight indoor units. Complementing this are the MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers, each equipped with advanced filtration systems and smart technology for optimal comfort. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure efficient refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance and installation ease. Together, these components create a versatile and energy-efficient climate control solution.

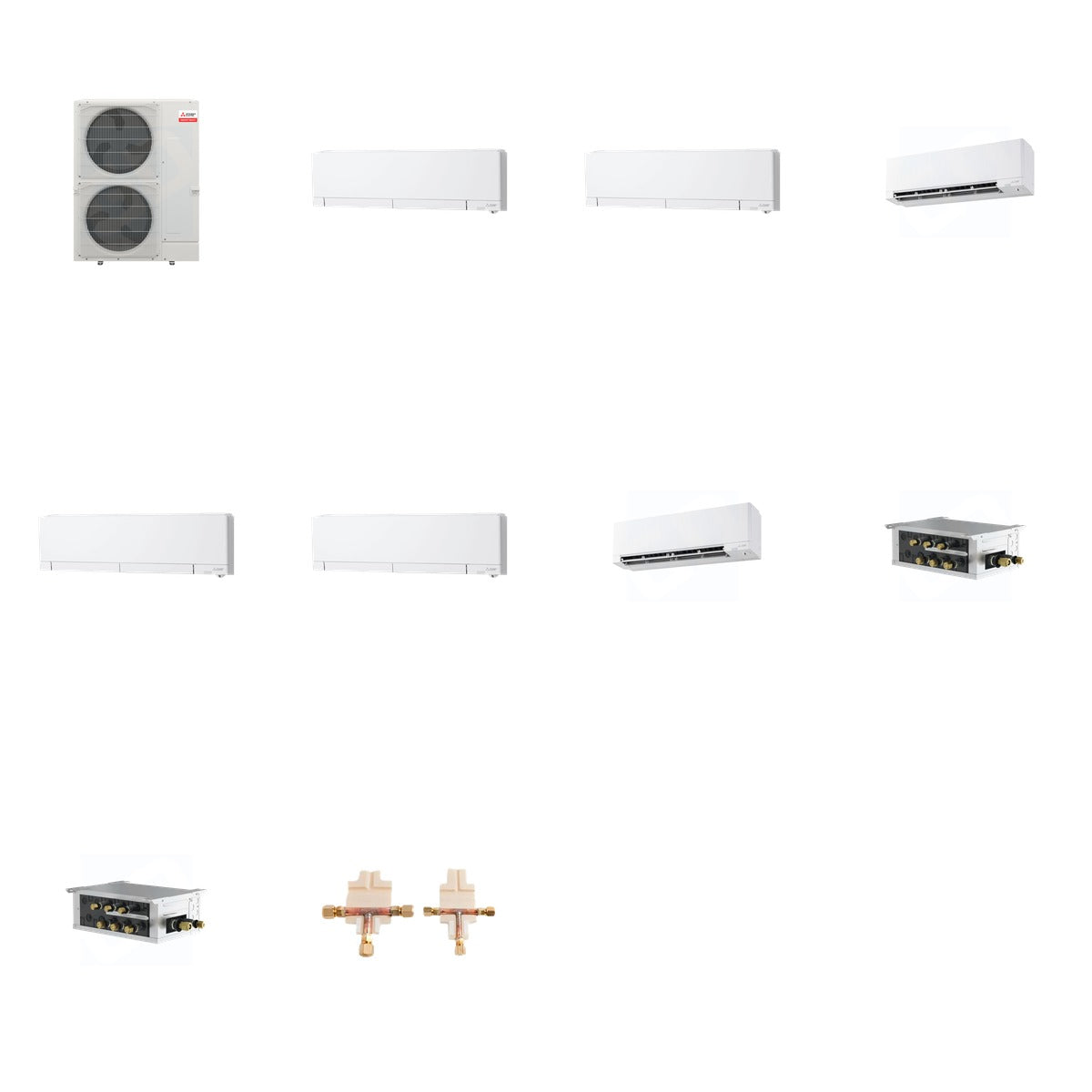

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant, connects up to 12 zones
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, R454B refrigerant, room capacity: up to 250 sq ft
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, R454B refrigerant, room capacity: up to 350 sq ft
• MSZ-FX12NL: 12,000 BTU, SEER2: Up to 35, R454B refrigerant, room capacity: up to 450 sq ft
• MSZ-FX15NL: 15,000 BTU, SEER2: Up to 20.0, R454B refrigerant, room capacity: ideal for larger spaces
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, making them ideal for both residential and commercial applications. Each indoor unit can be controlled individually, allowing for personalized comfort in different zones.
