Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+12K+12K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, providing heating and cooling capabilities for up to eight zones. Paired with the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL wall-mounted air handlers, this setup ensures optimal climate control across various spaces, accommodating different room sizes and preferences. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these products deliver superior comfort, energy efficiency, and smart technology integration.

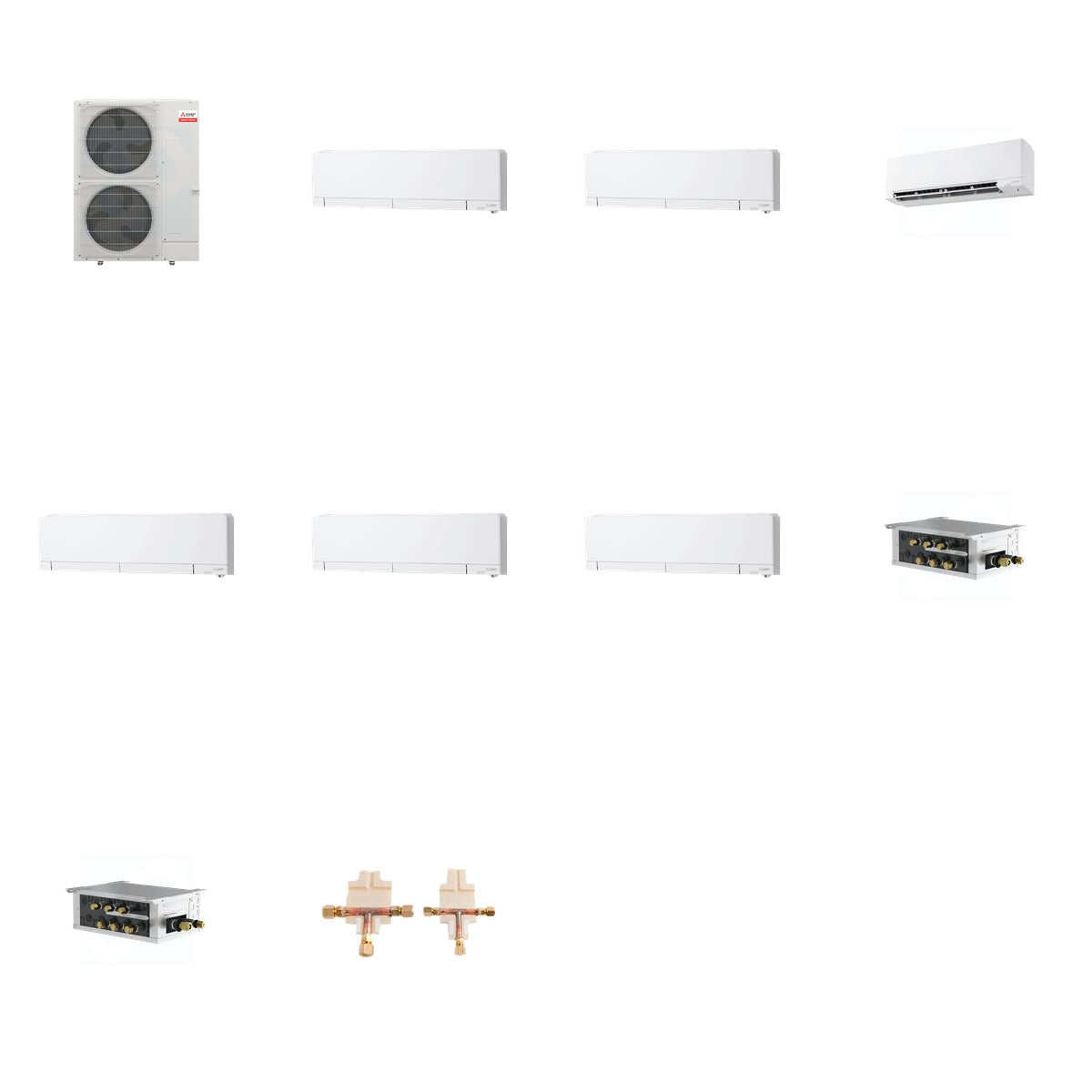

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 6,000 BTU, 9,000 BTU, 12,000 BTU
• Refrigerant Type: R454B
• SEER2 Ratings: Up to 35
• Heating Capacity: Up to 12,000 BTU
• Voltage: 208/230 Volts
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): 39.27 W x 12 H x 9.75 D
• Branch Box Ports: 3 and 5

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing heating and cooling solutions for multiple zones. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers are suitable for both single-zone and multi-zone configurations. The branch boxes and distribution kit ensure effective refrigerant management, making this setup ideal for a variety of indoor environments.
