Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+12K

Description

This comprehensive bundle features essential components for optimizing your HVAC system with Mitsubishi Electric's advanced technology. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of supporting multiple indoor units across various zones. Paired with the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL wall-mounted air handlers, this setup ensures efficient heating and cooling tailored to your space's needs. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures balanced performance across all connected units. Together, these components create a versatile and efficient multi-zone system suitable for both residential and commercial applications.

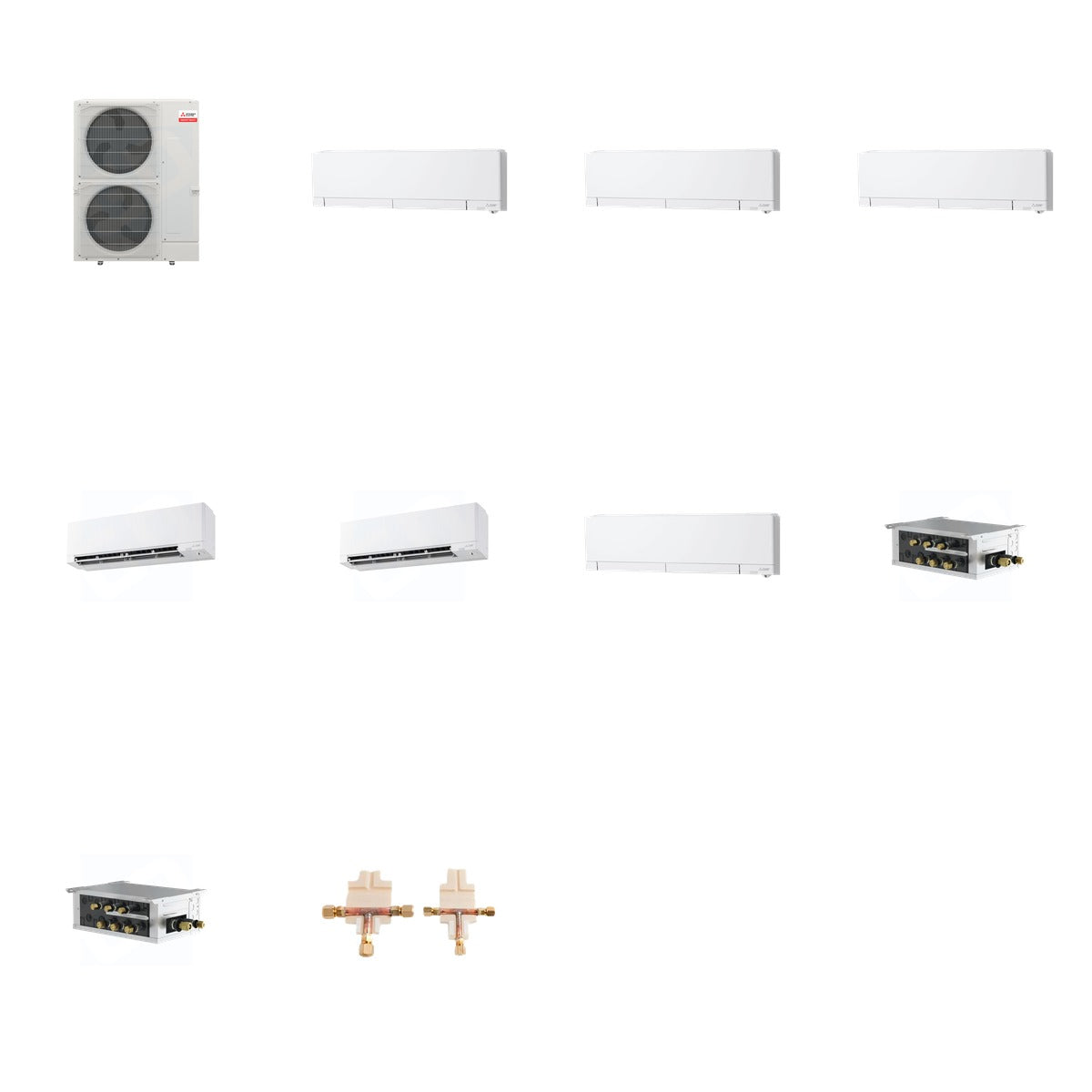

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Oxygen-free copper, flare connections, R-410A/R-454B compatible

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for both residential and commercial spaces. The outdoor heat pump unit connects seamlessly with the wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across all zones. Ideal for environments requiring customized climate solutions.
