Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+15K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this system supports multiple indoor units, making it ideal for multi-zone applications. The included wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL) offer advanced features such as quiet operation, smart device control, and superior air filtration. Additionally, the bundle includes essential accessories like the PAC-LMA50BC and PAC-LMA30BC branch boxes for optimal refrigerant management, as well as the MSDD-50AR2-E branch pipe distribution kit for seamless installation. Together, these components create a powerful and versatile climate control solution.

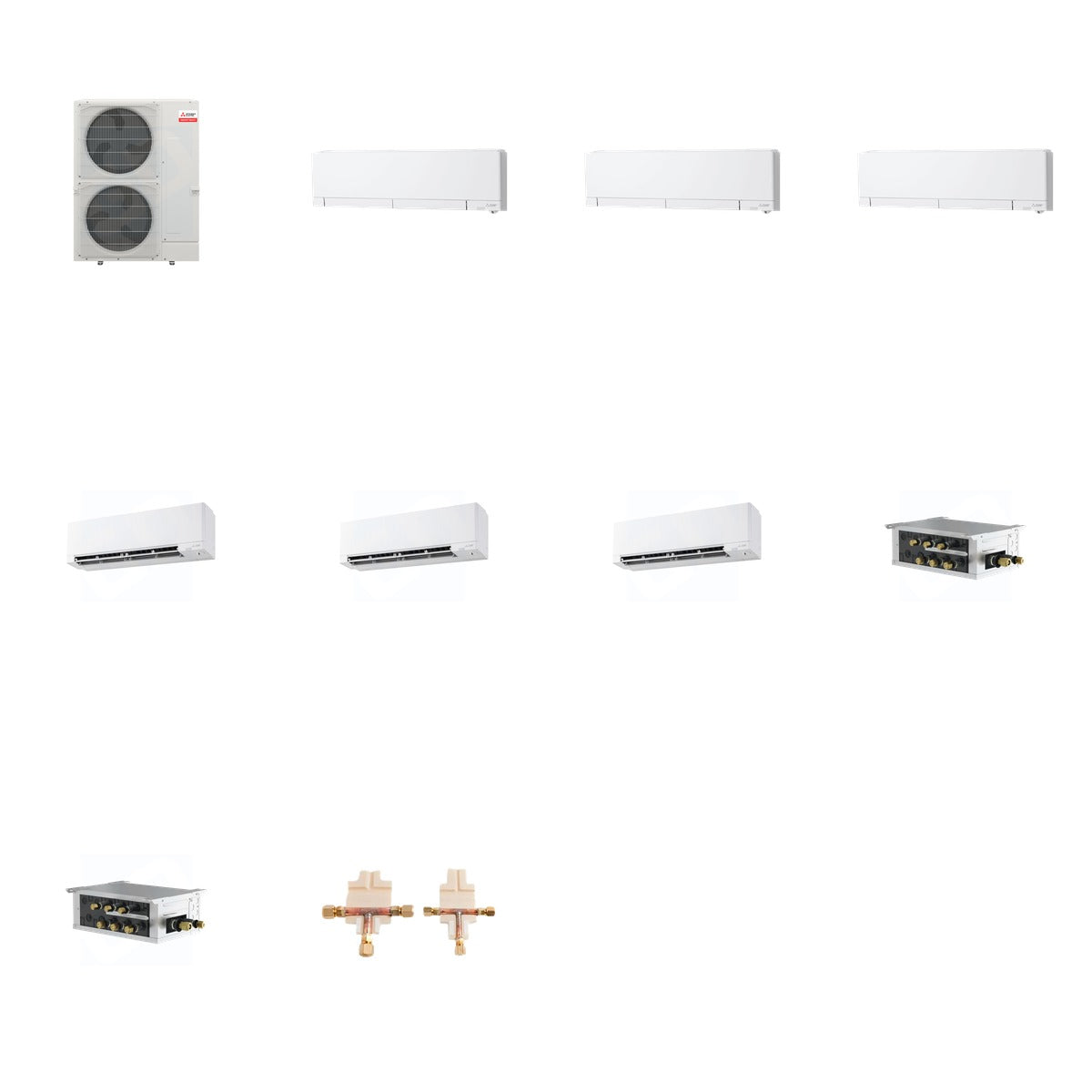

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, HSPF2 up to 13.3, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, HSPF2 up to 13.3, Wi-Fi enabled
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20.0, HSPF2 up to 10.5, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, supports up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, allowing for flexible configurations. The included branch boxes and distribution kit ensure optimal refrigerant flow and temperature management, making this bundle suitable for both residential and commercial applications.
