Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed for optimal performance in multi-zone mini-split systems. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to eight indoor zones while efficiently managing heating and cooling with its inverter-driven compressor. Complementing this unit are three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL), each equipped with advanced filtration and smart control features for personalized comfort. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, enhancing system efficiency. Lastly, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant flow, making this bundle a perfect choice for both residential and commercial applications.

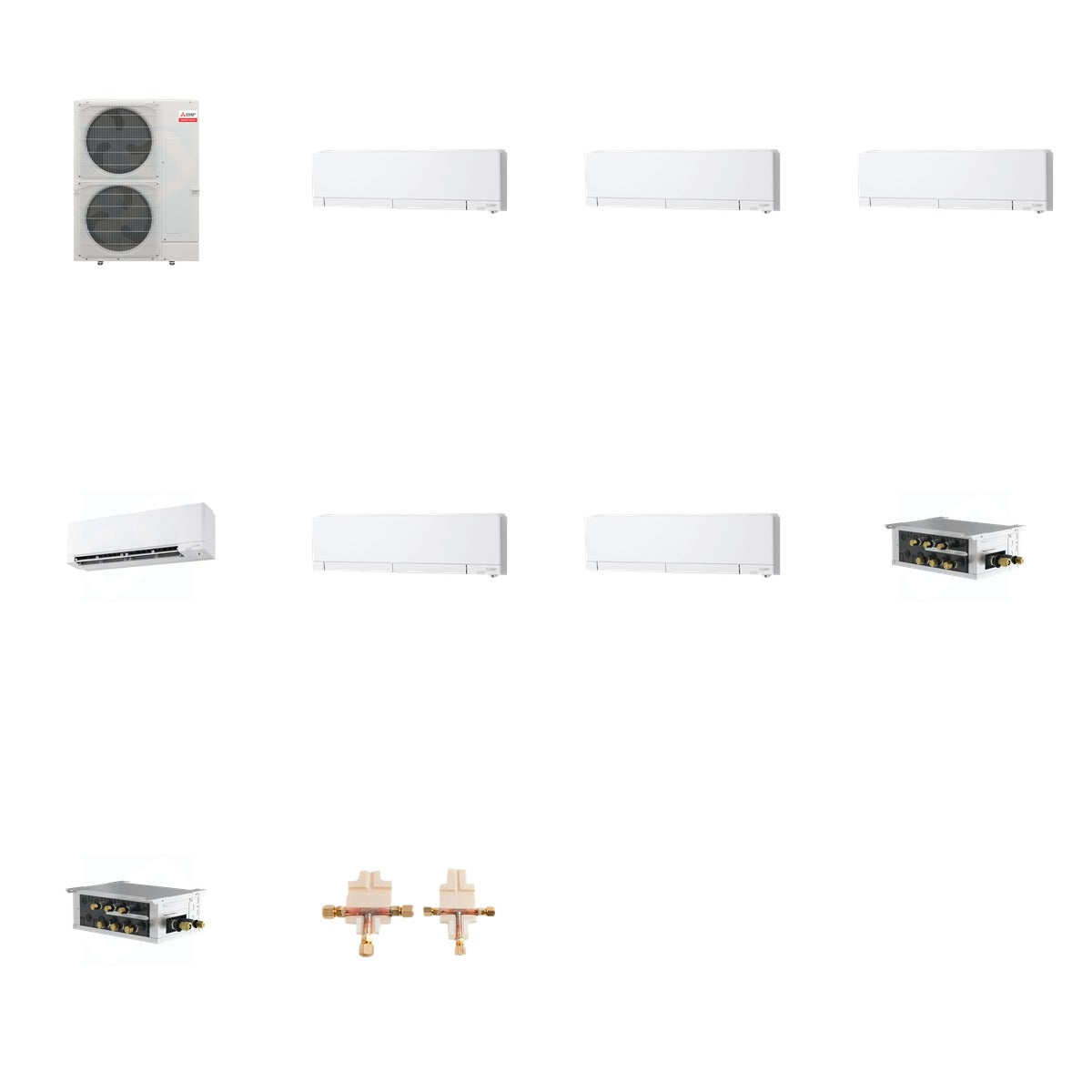

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2: 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2: Up to 35, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, SEER2: Up to 35, Wi-Fi enabled
• MSZ-FX12NL: 12,000 BTU, R454B refrigerant, SEER2: Up to 35, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring seamless integration and optimal performance across multiple indoor units.
