Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K

Description

This comprehensive HVAC bundle is designed for optimal performance and efficiency in multi-zone heating and cooling applications. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports up to eight indoor zones, making it ideal for both residential and commercial spaces. Complementing this powerhouse is a selection of wall-mounted air handlers, including the MSZ-FX06NL and MSZ-FX09NL, which provide advanced filtration and smart device control for enhanced comfort. The included PAC-LMA50BC and PAC-LMA30BC branch boxes ensure efficient refrigerant distribution, while the MSDD-50AR2-E branch pipe kit guarantees seamless installation and operation. Together, these components create a robust and flexible HVAC solution tailored to meet diverse climate control needs.

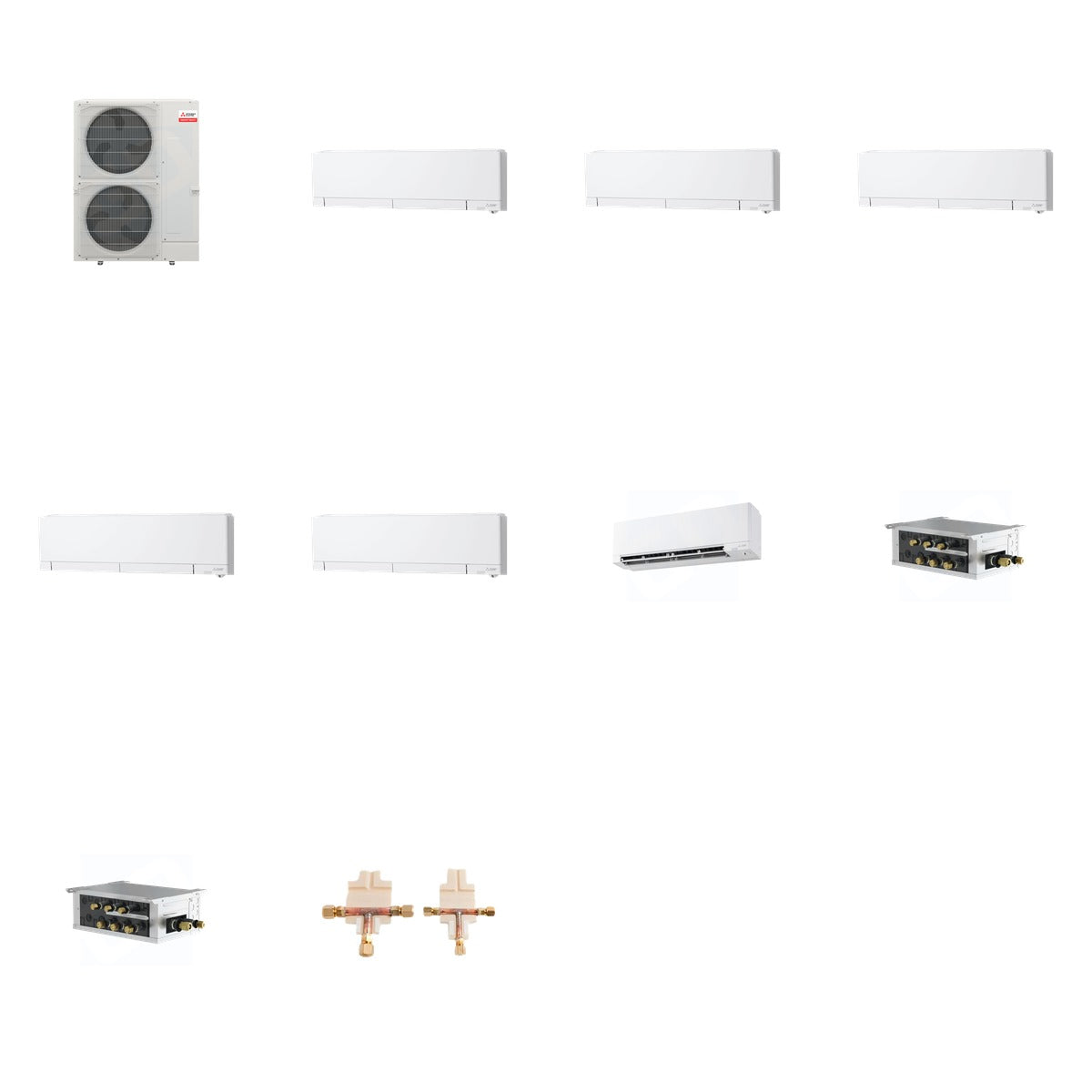

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 421.5 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, up to 2000 sq ft coverage
• MSZ-FX06NL: 6,000 BTU, SEER2: up to 35, heating capacity: 9,000 BTU, up to 250 sq ft coverage
• MSZ-FX09NL: 9,000 BTU, SEER2: up to 35, heating capacity: 12,000 BTU, up to 350 sq ft coverage
• PAC-LMA50BC: 5 ports, compatible with MXZ outdoor units, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial applications. The outdoor heat pump unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit facilitate efficient refrigerant management across multiple indoor units.
