Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+15K+15K

Description

This comprehensive bundle includes essential components for creating an efficient multi-zone HVAC system. Featuring the Mitsubishi Electric MXZ-SM48NL outdoor heat pump, this setup supports up to eight indoor units, making it ideal for both residential and commercial applications. The included MSZ-FX06NL and MSZ-FX15NL wall-mounted air handlers provide flexible cooling and heating options, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution. Completing the bundle is the MSDD-50AR2-E branch pipe distribution kit, which facilitates seamless connections between the outdoor unit and multiple indoor units. Together, these products deliver reliable performance, energy efficiency, and enhanced comfort for any space.

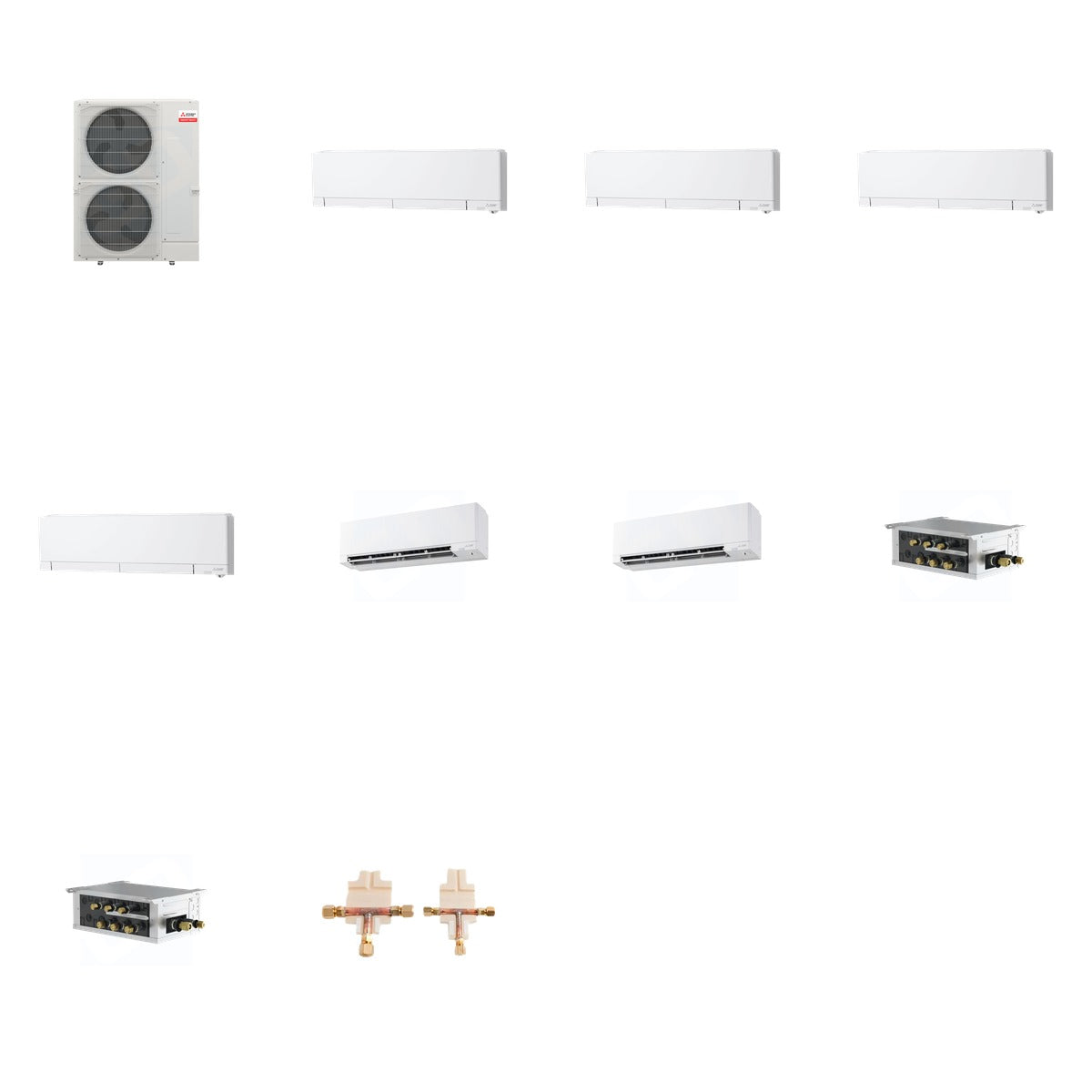

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 428.9 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2 up to 21.50, cooling capacity 42,000 BTU, heating capacity 48,000 BTU
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 35, heating capacity 9,000 BTU, sound level 20-42 dB
• MSZ-FX15NL: 15,000 BTU, R454B refrigerant, SEER2 up to 20.0, heating capacity 18,000 BTU, sound level 26-49 dB
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models, electronic LEVs for refrigerant flow
• PAC-LMA30BC: 3 ports, 208/230V, connects up to three indoor units, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B, includes insulation

Use & Compatibility

This bundle is designed for multi-zone mini-split HVAC systems, providing efficient heating and cooling across various spaces. The outdoor unit is compatible with multiple indoor units, allowing for tailored climate control in residential and commercial settings. Ideal for new installations or system upgrades, these components work seamlessly together to ensure optimal performance and energy efficiency.
