Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K+15K+15K

Description

This comprehensive HVAC bundle features essential components from Mitsubishi Electric, designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the backbone, capable of connecting up to eight indoor units, while the MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL air handlers provide versatile climate control for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow, ensuring balanced temperatures across all zones. Finally, the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency and performance, making this bundle ideal for both residential and commercial applications.

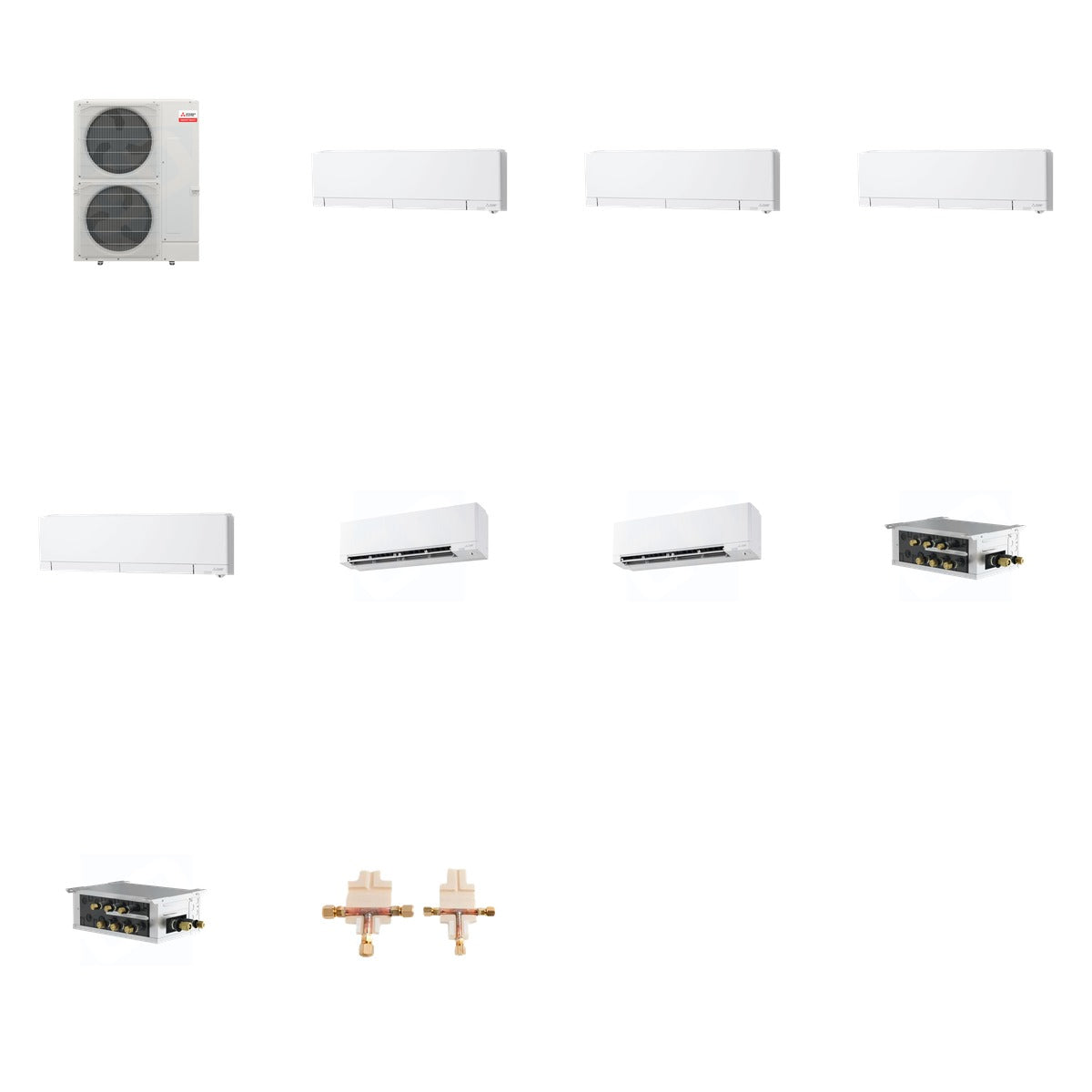

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 48,000 BTU
• Heating Capacity: Up to 18,000 BTU
• Refrigerant Type: R-454B
• SEER2 Rating: Up to 35
• HSPF2 Rating: Up to 13.3
• Voltage: 208/230 Volts
• Dimensions (Outdoor Unit): 41-11/32" W x 13" D x 52-11/16" H
• Dimensions (Indoor Units): 39.27" W x 9.75" D x 12" H
• Branch Box Ports: 3 and 5
• Material: Oxygen-Free Copper (for distribution kit)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and City Multi indoor units, ensuring seamless integration and optimal performance across various configurations.
