Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+12K+12K+12K+12K

Description

This comprehensive bundle includes everything you need for an efficient and effective multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to eight indoor zones, while the MSZ-FX06NL and MSZ-FX12NL wall-mounted air handlers provide tailored comfort for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, ensuring optimal performance across all connected units. The MSDD-50AR2-E branch pipe distribution kit further enhances system efficiency, making this bundle a perfect choice for both residential and commercial applications.

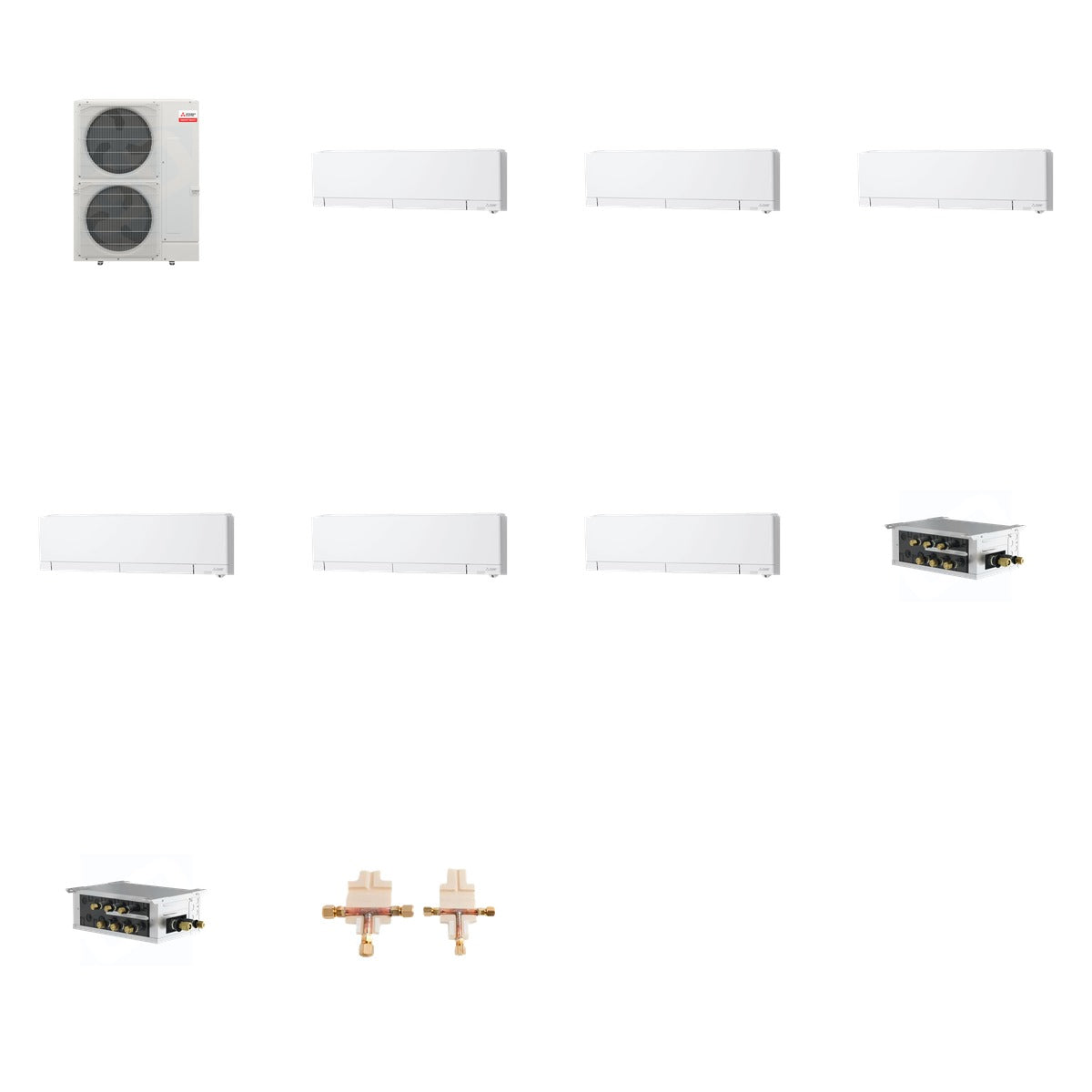

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 145.6 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2 up to 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 35, 20 dB minimum sound level
• MSZ-FX12NL: 12,000 BTU, R454B refrigerant, SEER2 up to 35, 20 dB minimum sound level
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for both residential and commercial spaces. The outdoor heat pump connects seamlessly with the included wall-mounted air handlers and branch boxes, ensuring optimal refrigerant flow and temperature control across multiple zones.
