Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+12K+12K

Description

The Mitsubishi Electric HVAC bundle offers a comprehensive solution for efficient heating and cooling across multiple zones. Featuring a powerful outdoor heat pump unit and versatile indoor units, this bundle is designed to meet the demands of both residential and commercial applications. With advanced refrigerant management and customizable airflow options, it ensures optimal comfort and energy efficiency. The included branch boxes facilitate seamless connections between the outdoor unit and indoor units, making installation straightforward while maximizing performance.

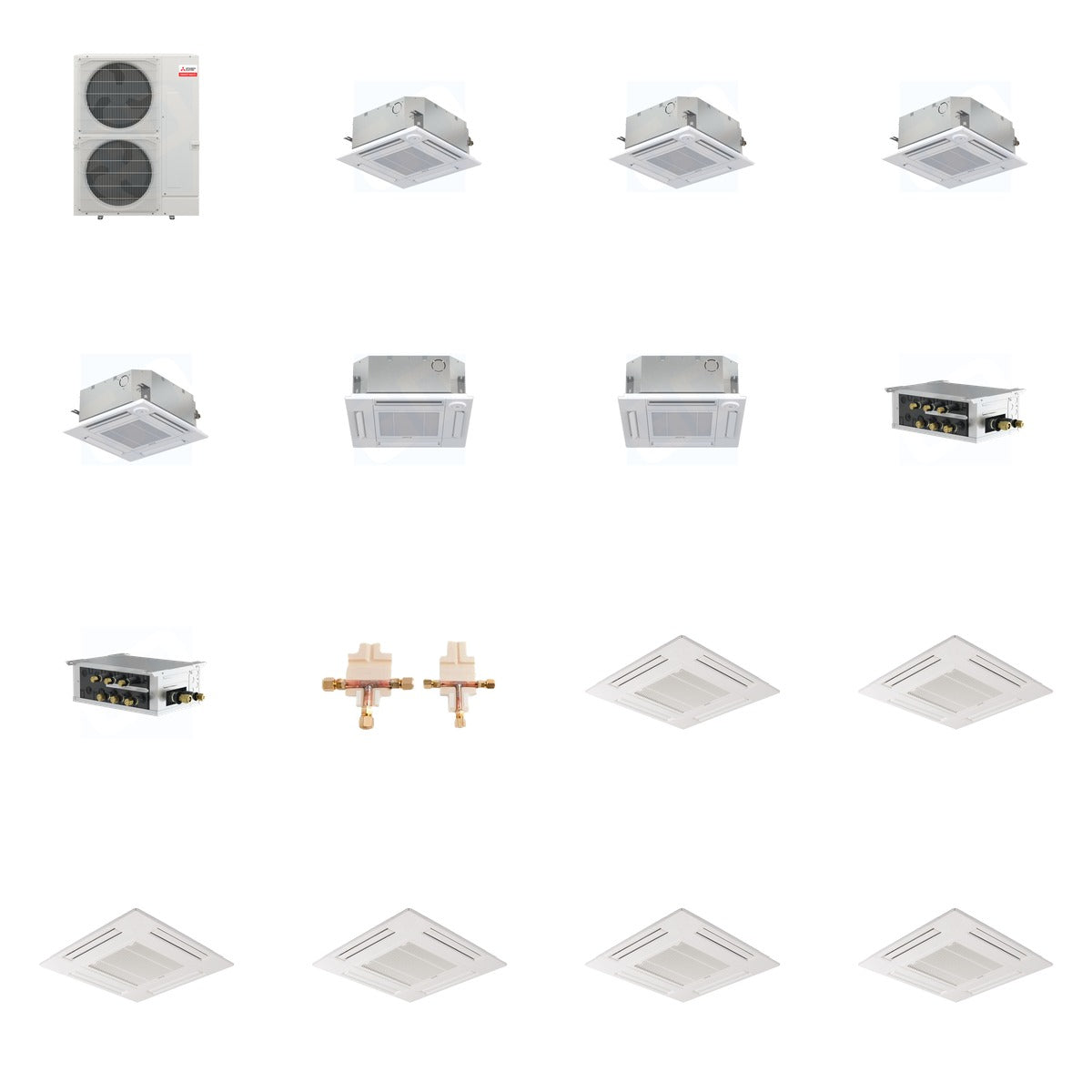

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x4)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Units: 9,000 BTU (x4), 12,000 BTU (x2)
• Refrigerant Type: R-454B
• SEER2: Up to 21.50
• Voltage: 208/230 Volts
• Dimensions: Outdoor Unit - 41-11/32 W x 13 D x 52-11/16 H
• Indoor Unit Dimensions: 22-7/16 x 22-7/16 x 8-4/16 inches
• Branch Box Ports: 3 and 5

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, compatible with M-Series and City Multi indoor units. The outdoor heat pump unit connects to multiple indoor units via the included branch boxes, ensuring efficient refrigerant distribution and temperature control across various spaces.
