Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle allows for multi-zone climate control, accommodating up to eight indoor units. The included MLZ-KX09NL and MLZ-KX12NL ceiling cassette indoor units offer versatile installation options and advanced features like Wi-Fi connectivity and adjustable airflow. To optimize refrigerant distribution, the PAC-LMA50BC and PAC-LMA30BC branch boxes are included, ensuring balanced performance across multiple zones. The MSDD-50AR2-E branch pipe distribution kit further enhances system efficiency, while the MLP-449WU grille completes the installation for optimal air distribution.

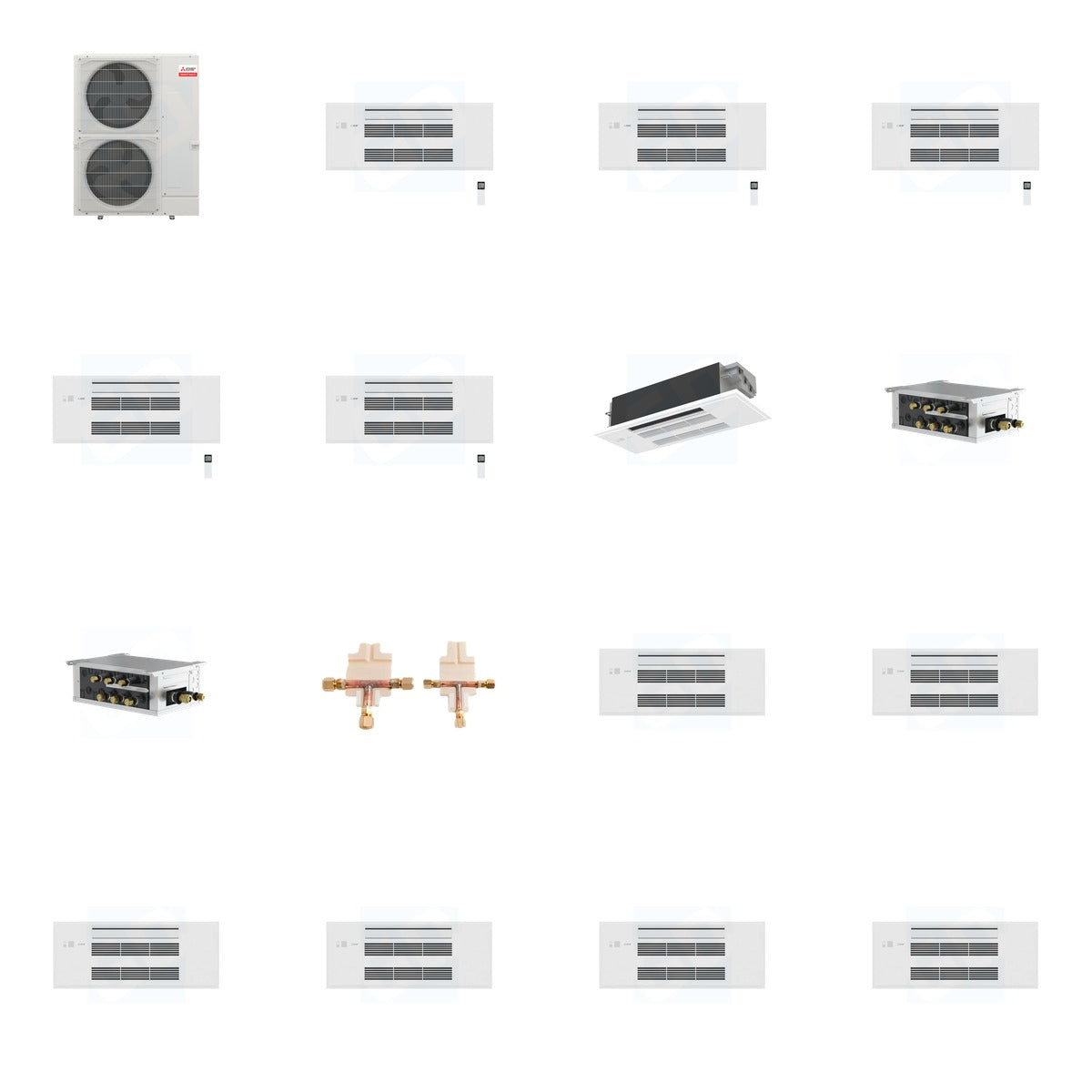

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 350.8 lb (Mitsubishi 225 lb + Mitsubishi 16.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MLZ-KX09NL: 9,000 BTU, Heating Capacity: 12,000 BTU, Airflow: 201-325 CFM
• MLZ-KX12NL: 12,000 BTU, Heating Capacity: 15,400 BTU, Airflow: 212-332 CFM
• PAC-LMA50BC: 5 ports, Voltage: 208/230V
• PAC-LMA30BC: 3 ports, Voltage: 208/230V
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper construction
• MLP-449WU: Compatible with MLZ Series Indoor Units

Use & Compatibility

This bundle is ideal for multi-zone HVAC installations, providing efficient heating and cooling across various indoor environments. The outdoor unit connects seamlessly with the included ceiling cassette indoor units and branch boxes, ensuring optimal refrigerant flow and temperature control. Compatible with Mitsubishi Electric's M- and P-Series indoor units, this system is perfect for both residential and commercial applications.
