Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+12K+12K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, specifically designed for optimal heating and cooling performance in both residential and commercial settings. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to eight indoor zones with its efficient inverter-driven compressor. Complementing this are the MLZ-KX09NL and MLZ-KX12NL ceiling cassette indoor units, providing versatile air distribution and user-friendly controls. The bundle also includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow, along with the MSDD-50AR2-E distribution kit for seamless installation. Finally, the MLP-449WU grille ensures proper airflow and aesthetics for the indoor units. Together, these components create a cohesive and efficient HVAC solution.

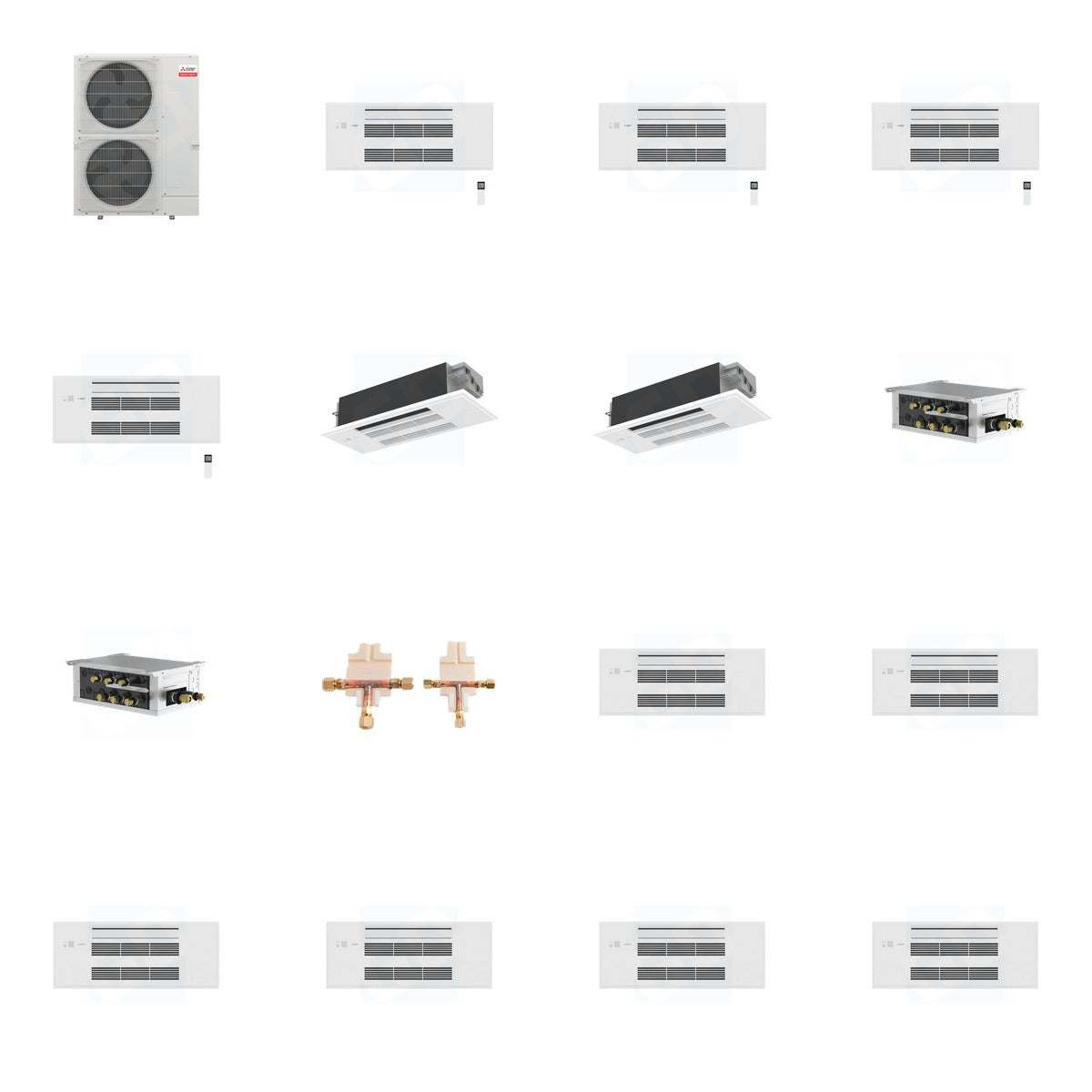

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 381.4 lb (Mitsubishi 225 lb + Mitsubishi 13.3 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling/Heating capacity: Up to 2000 sq ft
• MLZ-KX09NL: 9,000 BTU, R454B refrigerant, Cooling/Heating capacity: Up to 350 sq ft, Noise Level: 26-38 dB(A)
• MLZ-KX12NL: 12,000 BTU, R454B refrigerant, Cooling/Heating capacity: 15400 BTU, Noise Level: 26-40 dB(A)
• PAC-LMA50BC: 5 ports, Compatible with MXZ model, Voltage: 208/230V
• PAC-LMA30BC: 3 ports, Compatible with R454B refrigerant, Voltage: 208/230V
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B, Oxygen-free copper construction
• MLP-449WU: Designed for MLZ Series, Ensures proper airflow

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, suitable for both residential and commercial applications. The outdoor heat pump connects seamlessly with the indoor cassette units, while the branch boxes and distribution kit ensure efficient refrigerant management. Compatible with Mitsubishi Electric's M- and P-Series indoor units, this setup provides flexible comfort across various environments.
