Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+12K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone climate control system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, delivering both heating and cooling capabilities to up to twelve indoor units. Paired with multiple ceiling cassette indoor units, including the MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL, this bundle ensures optimal temperature management across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant flow, while the MSDD-50AR2-E distribution kit enhances system performance. Additionally, the grilles (MLP-448WU and MLP-449WU) optimize airflow, ensuring maximum efficiency and comfort in any environment.

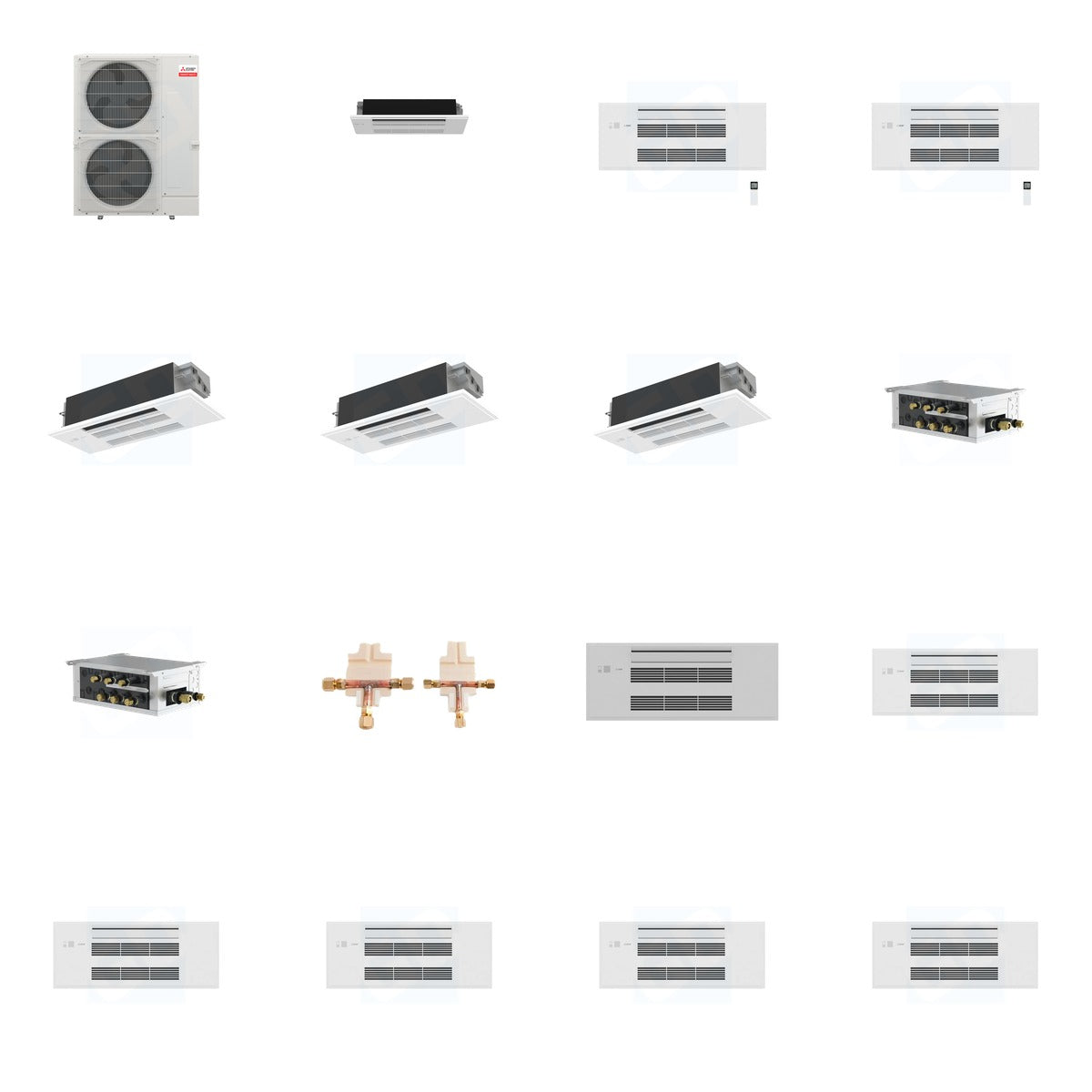

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 439.8 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 50 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling capacity: 42,000 BTU, Heating capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, R-454B refrigerant, Cooling capacity: 6,000 BTU, Heating capacity: 7,200 BTU
• MLZ-KX09NL: 9,000 BTU, R-454B refrigerant, Cooling capacity: 9,000 BTU, Heating capacity: 12,000 BTU
• MLZ-KX12NL: 12,000 BTU, R-454B refrigerant, Cooling capacity: 12,000 BTU, Heating capacity: 15,400 BTU
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, Oxygen-free copper construction
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is designed for both residential and commercial applications, providing efficient heating and cooling solutions for various indoor environments. The outdoor heat pump unit is compatible with multiple indoor unit series, while the branch boxes and distribution kit ensure optimal refrigerant flow for consistent temperature control across all connected zones.
