Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to create an efficient and effective multi-zone heating and cooling system. The centerpiece is the MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, which supports multiple indoor units, making it ideal for both residential and commercial applications. Paired with a variety of one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX18NL), this bundle ensures optimal temperature control across different spaces. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced pressure throughout the system. Completing the package are essential grilles (MLP-448WU and MLP-449WU) that enhance air distribution and system performance.

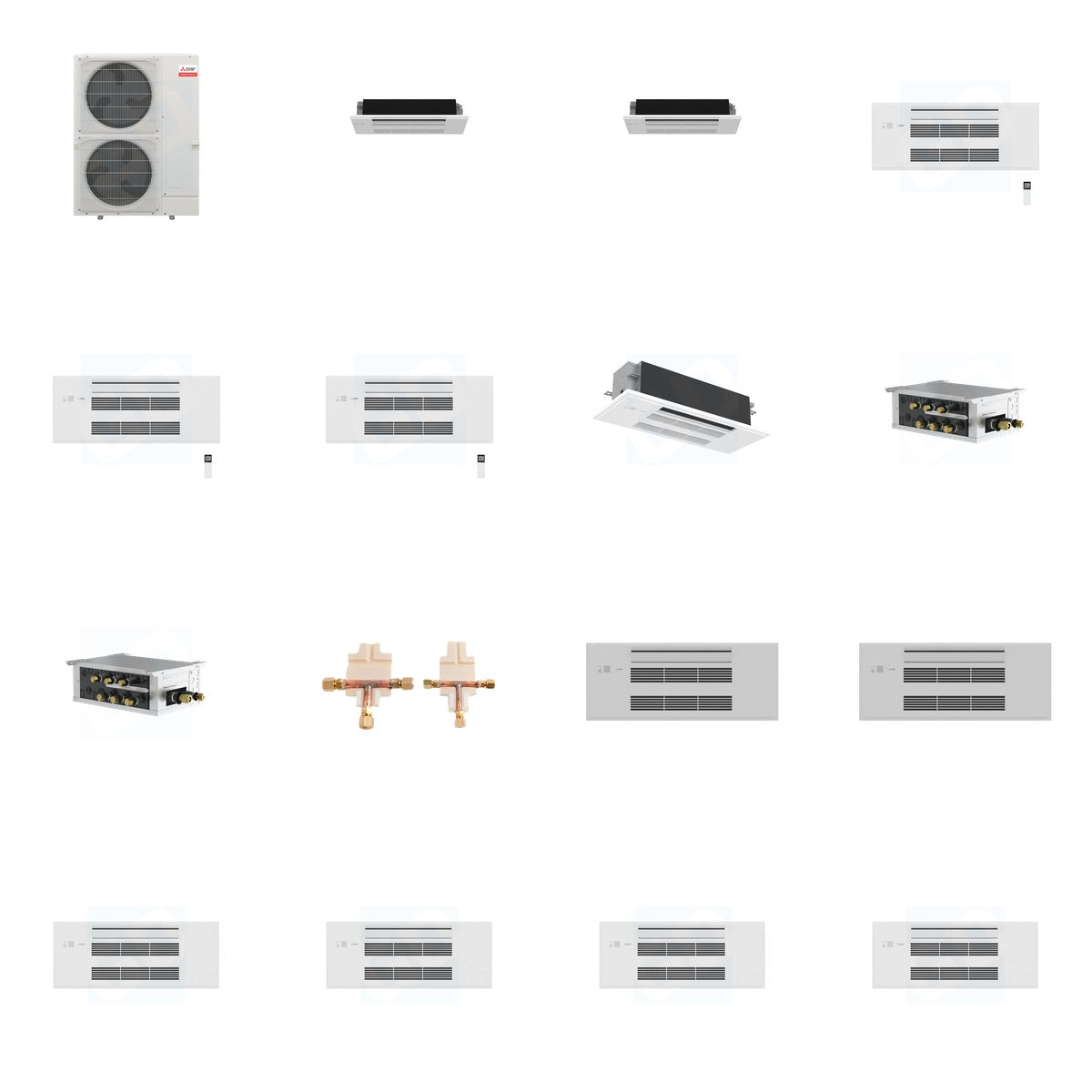

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 375.4 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 10.0 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 40 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, CFM: 152-198, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, CFM: 201-325, Wi-Fi enabled
• MLZ-KX18NL: 18,000 BTU, CFM: 212-417, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230 Volts, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230 Volts, compatible with R454B
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, weight: 7.9 lbs
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 inches, weight: 7.9 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial spaces. The outdoor heat pump unit connects seamlessly with the indoor ceiling cassettes, while the branch boxes and distribution kit ensure optimal refrigerant flow and system performance. The included grilles enhance air circulation, making this bundle a comprehensive solution for modern climate control needs.
