Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle includes essential components for creating a highly efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of connecting up to eight indoor units, making it ideal for both residential and commercial applications. Paired with the MLZ-KX series ceiling cassette indoor units, this bundle offers versatile installation options and optimal air distribution. The inclusion of branch boxes and distribution kits ensures seamless refrigerant management, while the grilles enhance airflow efficiency, making this bundle a complete solution for any climate control needs.

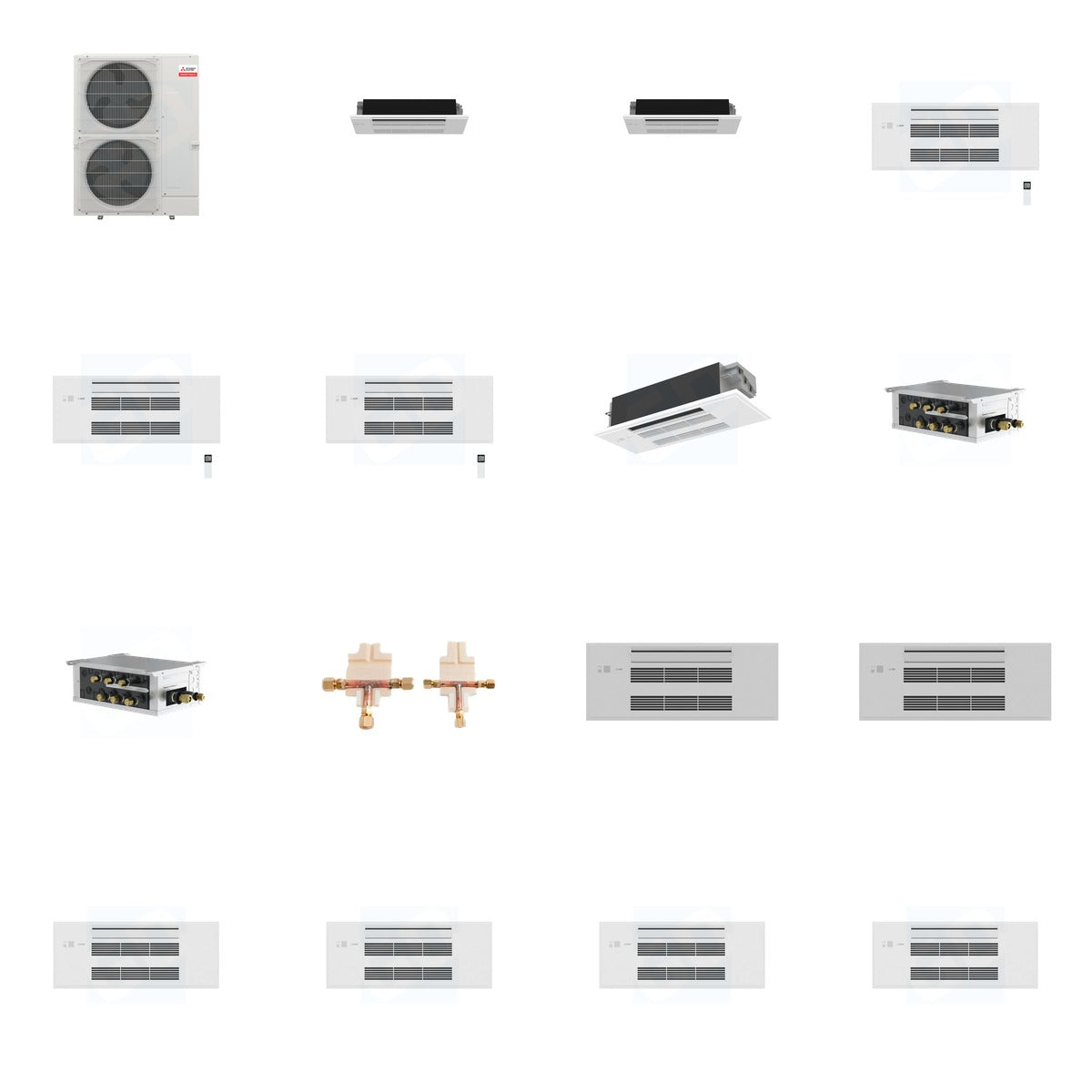

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 406.1 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 10.0 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 40 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, Wi-Fi enabled, fits 16-inch joists
• MLZ-KX09NL: 9,000 BTU, Wi-Fi enabled, fits 16-inch joists
• MLZ-KX12NL: 12,000 BTU, Wi-Fi enabled, fits 16-inch joists
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, designed for MLZ-KY Series
• MLP-449WU: Designed for MLZ Series, simple installation

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor heat pump connects to various indoor units, including ceiling cassettes, ensuring optimal climate control in diverse environments. Ideal for residential and commercial applications, the components work seamlessly together to maintain comfort and efficiency.
