Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K

Description

This comprehensive HVAC bundle is designed for optimal multi-zone climate control, featuring high-efficiency Mitsubishi Electric components that work seamlessly together. The centerpiece is the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, capable of supporting up to eight indoor zones while providing both heating and cooling. Complementing this unit are three MLZ-KX06NL and three MLZ-KX09NL ceiling cassette indoor units, which are perfect for distributing conditioned air in various spaces. The bundle also includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for refrigerant management, a distribution kit (MSDD-50AR2-E) to ensure balanced flow, and grilles (MLP-448WU and MLP-449WU) for optimal airflow. Together, these components create an efficient and versatile HVAC solution for both residential and commercial applications.

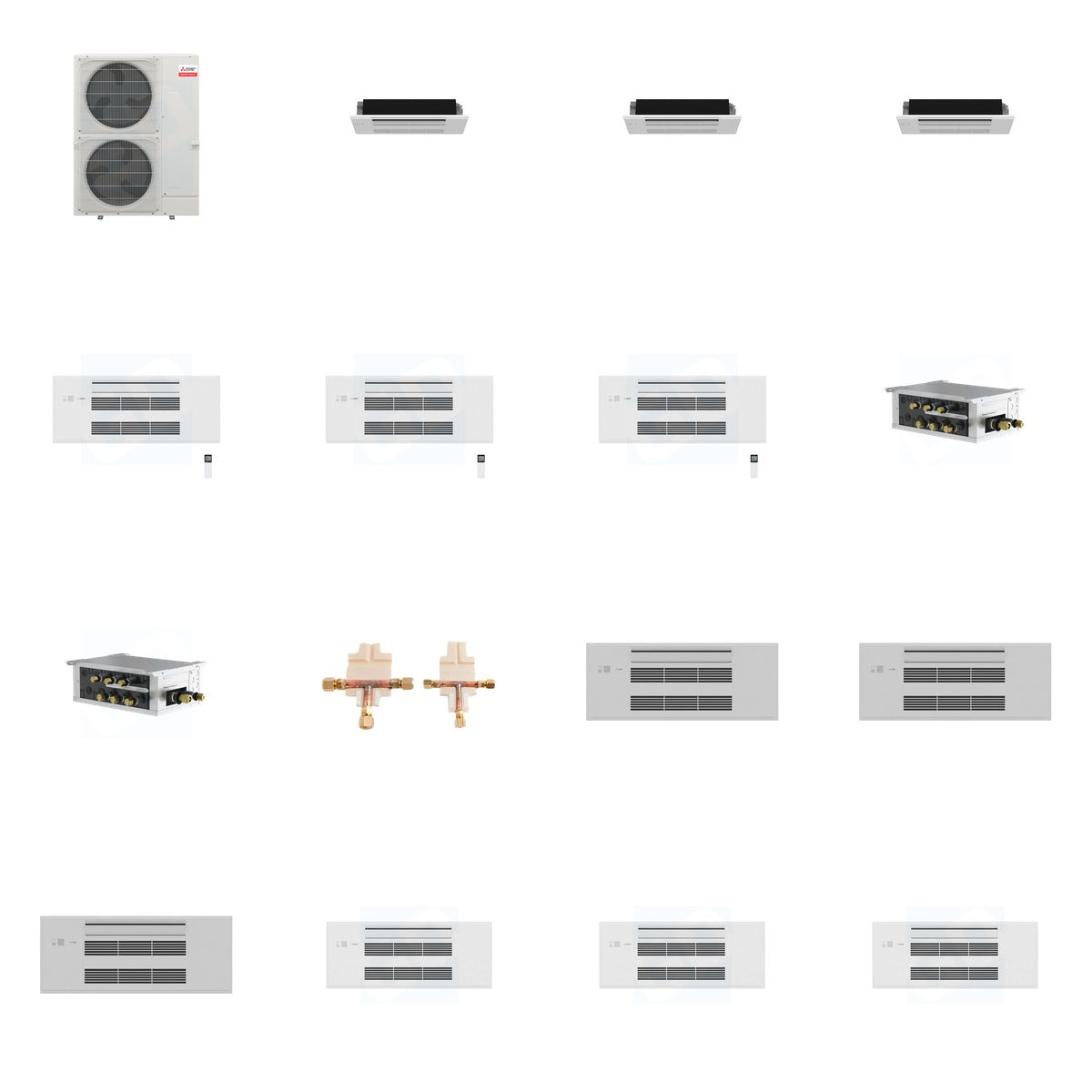

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 403.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 10.0 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, up to 350 sq ft, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, connects up to three indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• Grilles: MLP-448WU and MLP-449WU for optimal airflow and distribution

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor heat pump unit connects to various indoor units, while the branch boxes and distribution kit ensure balanced refrigerant flow, making it suitable for a wide range of applications.
