Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+12K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports multiple indoor units, allowing for customized climate control across various zones. The included ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL) offer versatile installation options and efficient operation, making them ideal for different room sizes. Additionally, the branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure balanced refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. With essential grilles (MLP-448WU and MLP-449WU) for optimal airflow, this bundle is your complete solution for effective climate management.

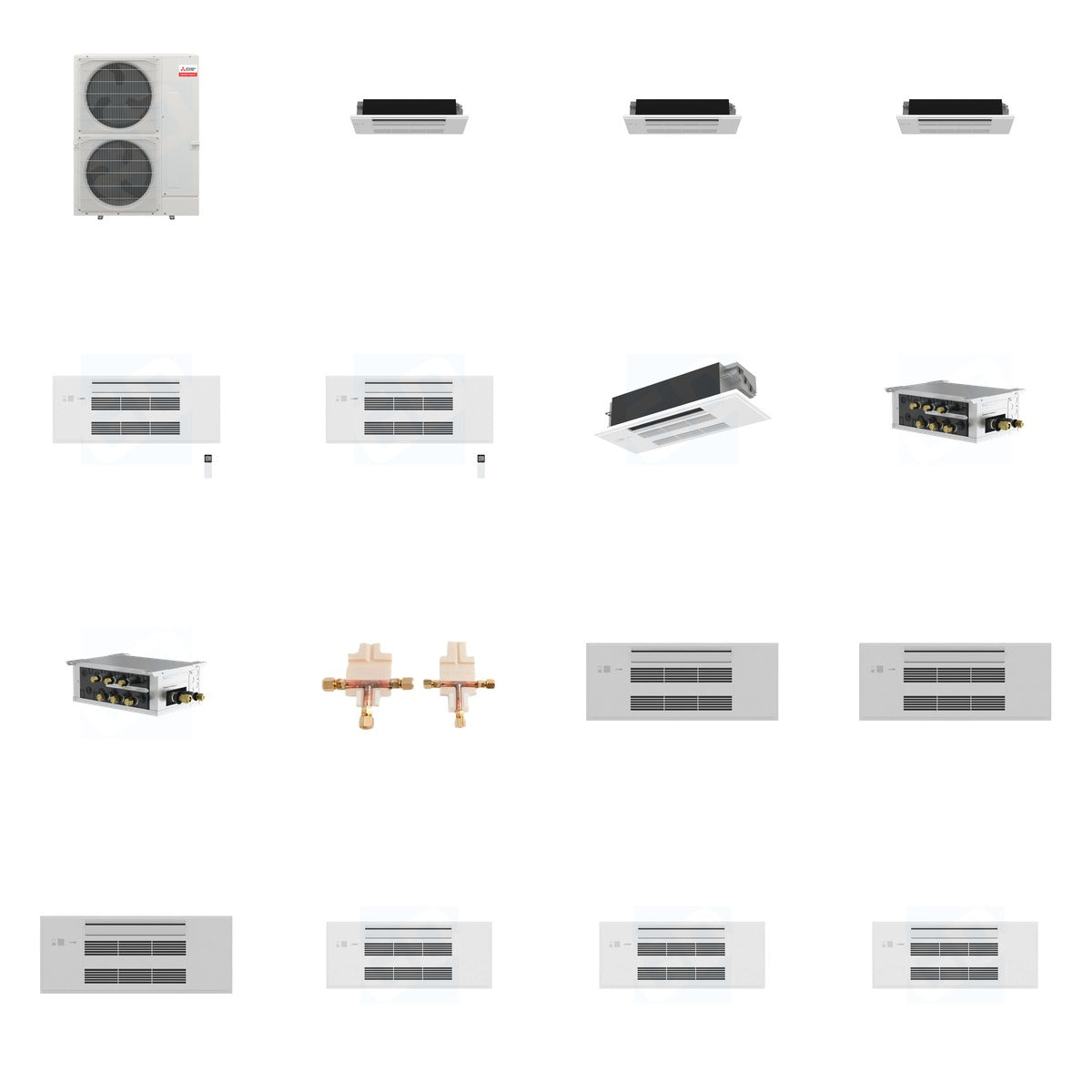

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 433.8 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, R454B refrigerant, Room Capacity: up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU, R454B refrigerant, Room Capacity: up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU, R454B refrigerant, Room Capacity: up to 500 sq ft
• PAC-LMA50BC: 5 ports, Voltage: 208/230V
• PAC-LMA30BC: 3 ports, Voltage: 208/230V
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor heat pump unit is compatible with various indoor units, allowing for flexible configurations to suit different room sizes and layouts. The branch boxes and distribution kit ensure efficient refrigerant management, making this bundle ideal for residential and commercial applications.
