Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+12K+18K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products designed to create an efficient and versatile multi-zone climate control system. The bundle includes the MXZ-SM48NL outdoor heat pump unit, which serves as the powerhouse for up to eight indoor units, along with a variety of ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, MLZ-KX18NL) that provide flexible heating and cooling options for different room sizes. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC, PAC-LMA30BC) for optimal refrigerant distribution, along with branch pipe distribution kits (MSDD-50AR2-E) and grilles (MLP-448WU, MLP-449WU) to ensure efficient airflow. This combination of products is perfect for both residential and commercial applications, providing reliable temperature control and energy efficiency.

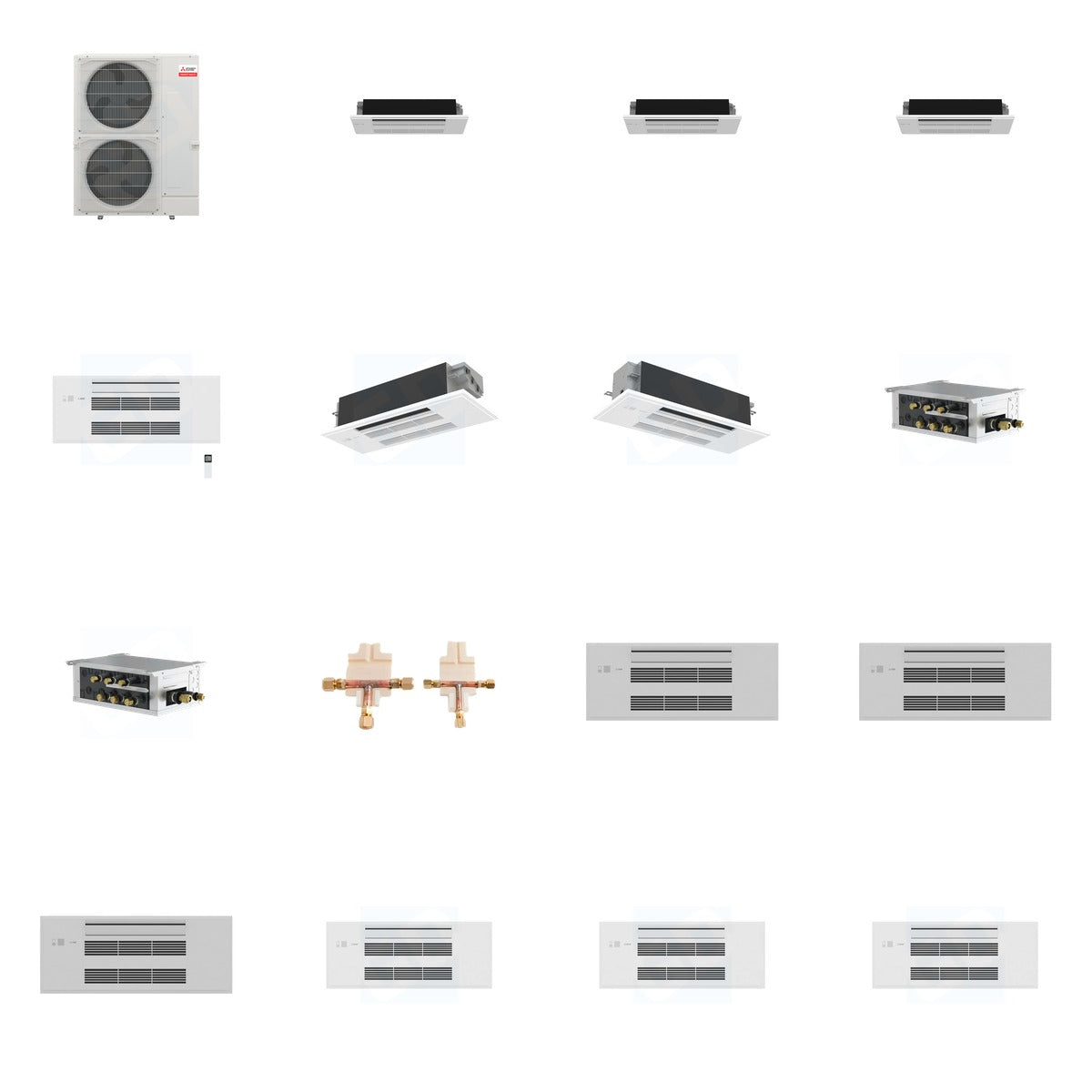

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 433.8 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 3.3 lb + Mitsubishi 34 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, 8 zones
• MLZ-KX06NL: 6,000 BTU, R454B refrigerant, 200 sq ft coverage
• MLZ-KX09NL: 9,000 BTU, R454B refrigerant, 350 sq ft coverage
• MLZ-KX12NL: 12,000 BTU, R454B refrigerant, 15400 BTU heating capacity
• MLZ-KX18NL: 18,000 BTU, R454B refrigerant, 19,000 BTU heating capacity
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Grille for MLZ-KY, 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille for MLZ Series, dimensions vary

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit connects to various indoor units, allowing for tailored climate control in multiple rooms. Each component is designed to work seamlessly together, ensuring optimal performance and energy efficiency.
