Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+12K+12K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient multi-zone climate control system. The centerpiece is the MXZ-SM48NL outdoor heat pump, which supports up to eight indoor units, making it ideal for both residential and commercial applications. Complementing this are three one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL), each providing versatile heating and cooling capabilities for various room sizes. The bundle also includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant flow management, along with the MSDD-50AR2-E branch pipe distribution kit to ensure balanced performance across all connected units. Completing the setup are the MLP-448WU and MLP-449WU grilles, which enhance air circulation and system efficiency. Together, these components deliver a reliable and effective solution for maintaining comfortable indoor environments.

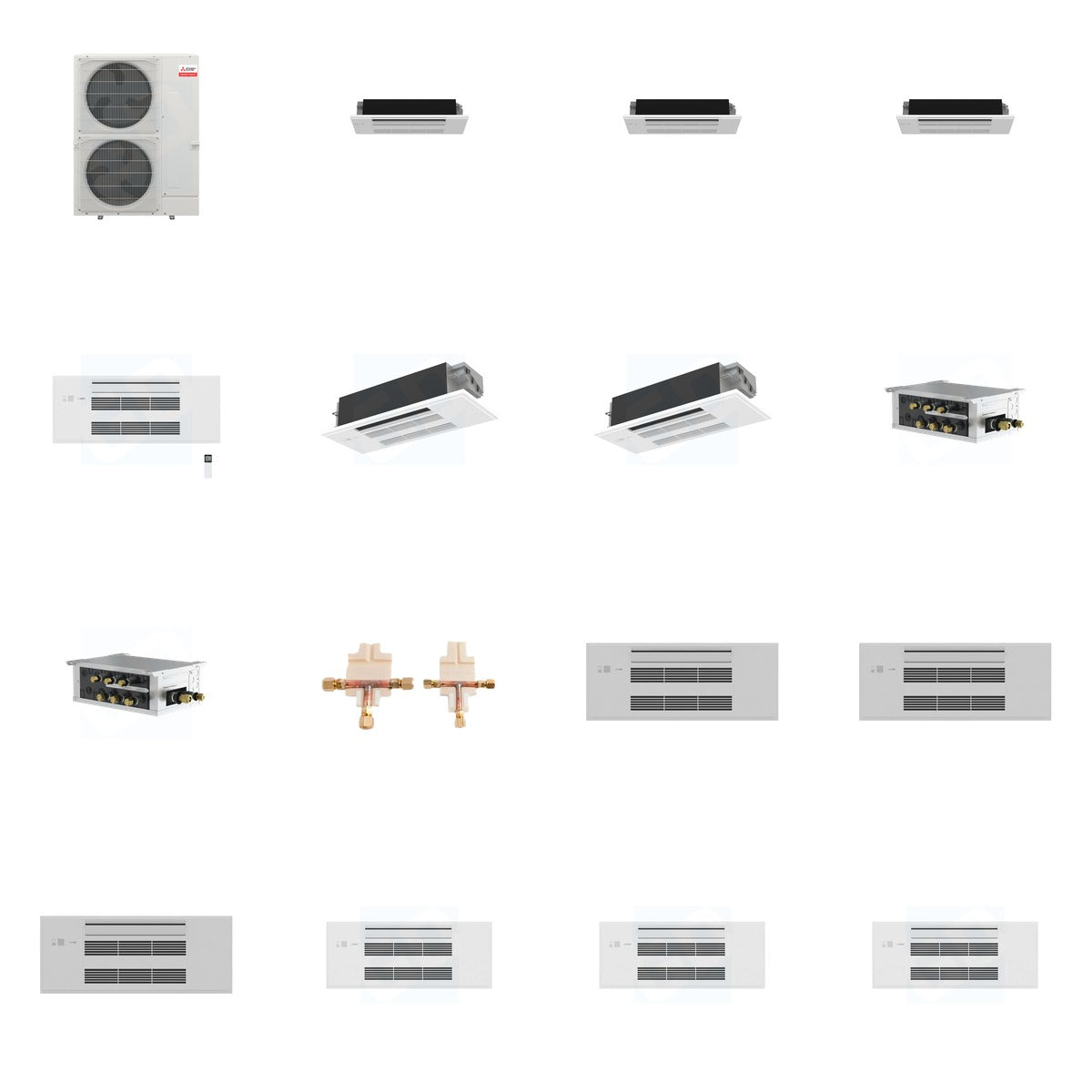

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 464.4 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 3.3 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 6,000 BTU, 9,000 BTU, 12,000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Number of Zones: Up to 12 with City Multi or 8 with branch box
• Airflow: Up to 325 CFM (varies by unit)
• Noise Level: As low as 26 dB(A)
• Dimensions: Varies by unit; e.g., MXZ-SM48NL: 41-11/32 W x 13 D x 52-11/16 H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor heat pump connects seamlessly with the indoor ceiling cassette units, providing efficient heating and cooling across various room sizes. The included branch boxes and distribution kit ensure optimal refrigerant flow, enhancing system performance and reliability.
