Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+18K

Description

This comprehensive HVAC bundle features essential components designed for optimal performance in multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting up to eight indoor units, while the MLZ-KX06NL and MLZ-KX18NL ceiling cassettes provide efficient heating and cooling for various spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate refrigerant flow management, ensuring balanced temperature control across connected units. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit ensures reliable refrigerant distribution, and the MLP-449WU and MLP-448WU grilles optimize airflow for enhanced system efficiency. This bundle is ideal for both residential and commercial applications, providing a complete solution for modern HVAC needs.

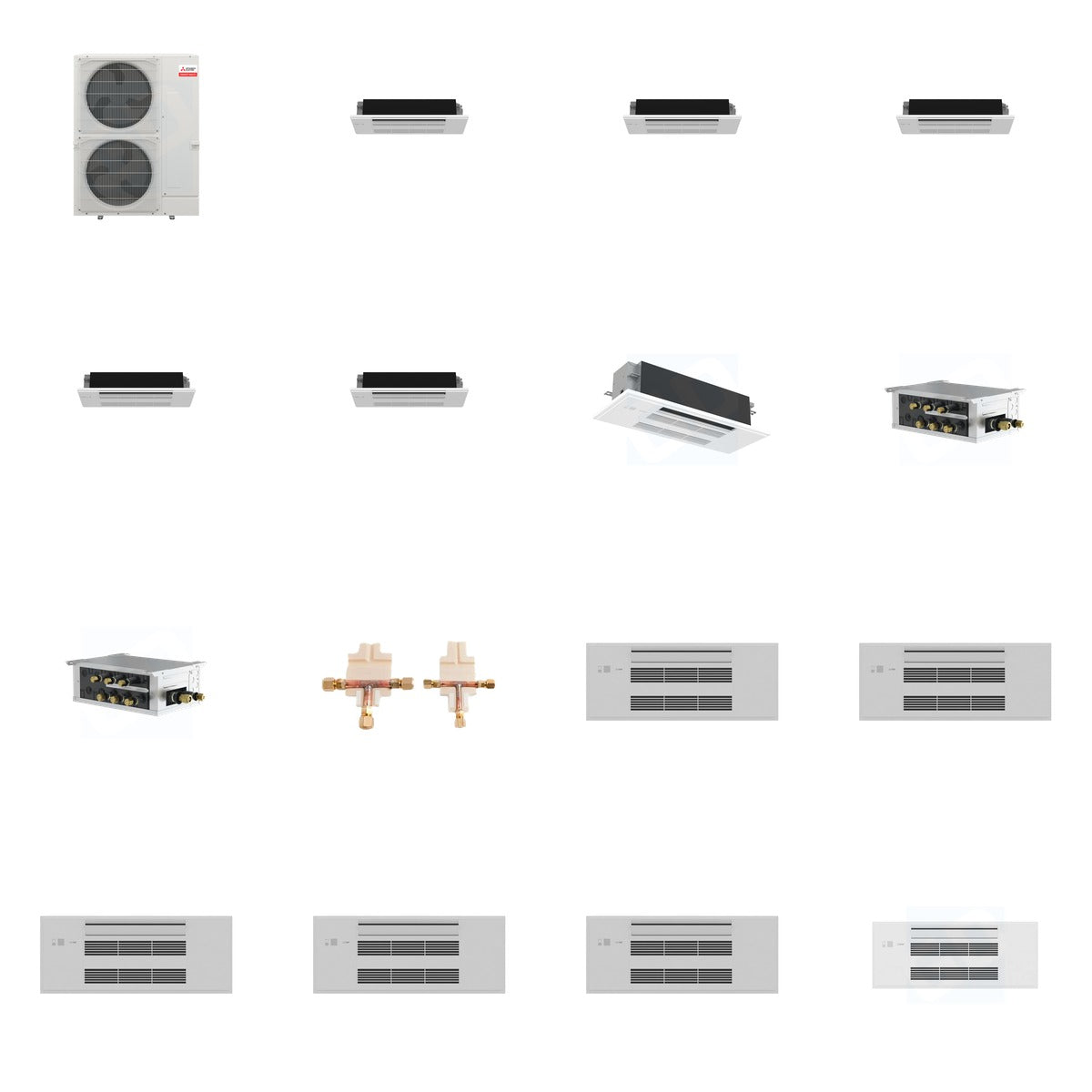

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

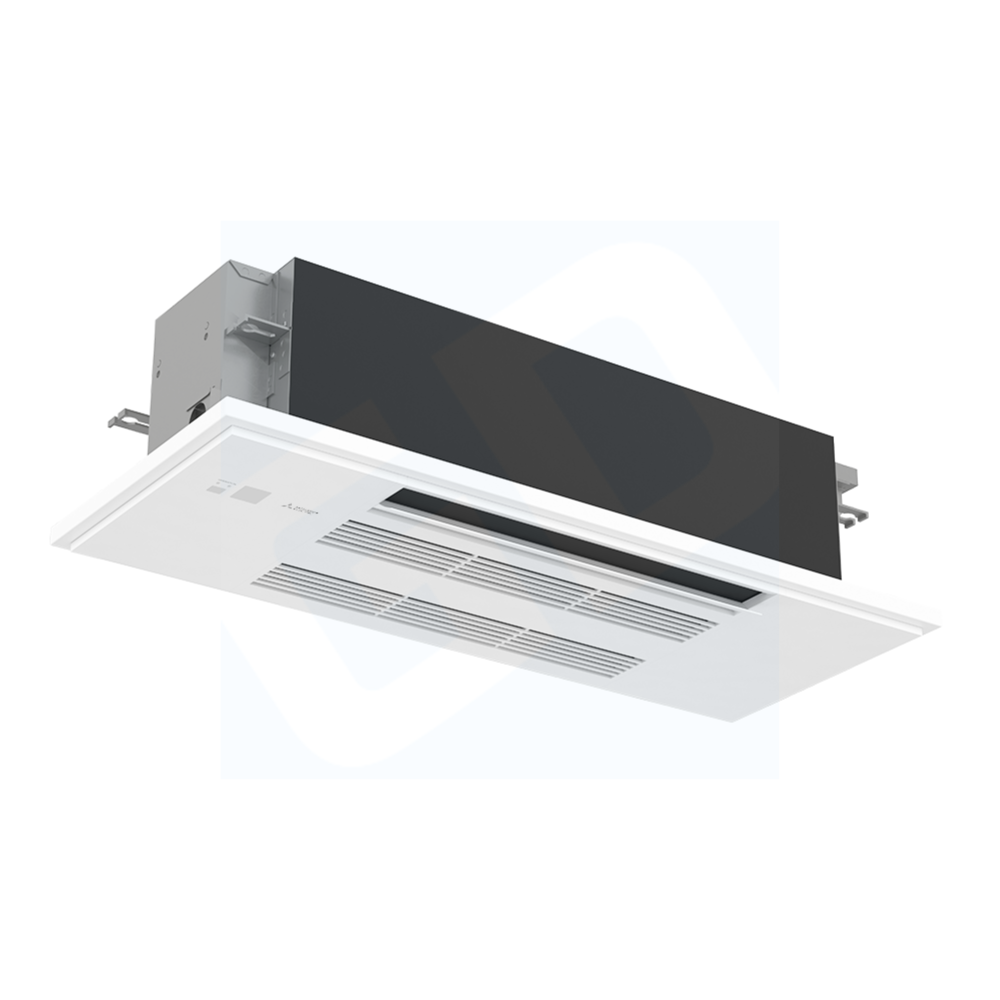

• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x1)

Key Details

• Weight of Bundle: 458.4 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 10 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, Cooling Capacity: 6,000 BTU, Heating Capacity: 7,200 BTU
• MLZ-KX18NL: 18,000 BTU, Cooling Capacity: 16,400 BTU, Heating Capacity: 19,000 BTU
• PAC-LMA50BC: 5 ports, Voltage: 208/230V
• PAC-LMA30BC: 3 ports, Voltage: 208/230V
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, making it suitable for both residential and commercial HVAC systems. The outdoor heat pump unit connects seamlessly with the indoor ceiling cassettes and branch boxes, ensuring efficient refrigerant distribution and temperature control across multiple zones.
