Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K

Description

This comprehensive HVAC bundle features essential components designed to optimize your multi-zone heating and cooling systems. At its core is the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, which provides powerful heating and cooling capabilities for up to eight zones. Complementing this outdoor unit are five ceiling cassette indoor units (MLZ-KX06NL and MLZ-KX12NL) that ensure efficient air distribution in various indoor spaces. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) allows for seamless refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all connected units. This bundle is ideal for both residential and commercial applications, providing a complete solution for your climate control needs.

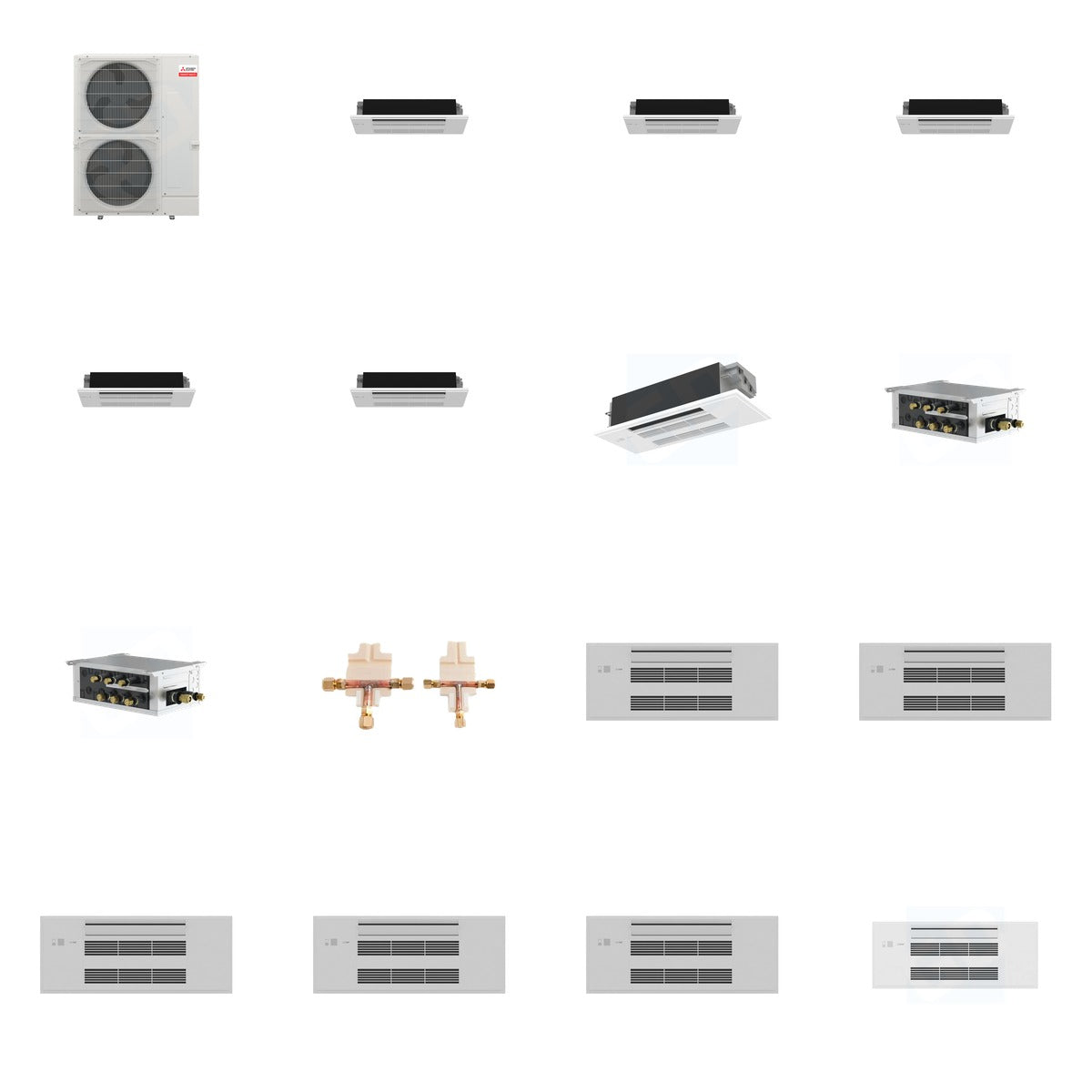

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x1)

Key Details

• Weight of Bundle: 489.1 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 10 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, R-454B refrigerant, Airflow: 152-198 CFM, Noise Level: 29-36 dB(A)
• MLZ-KX12NL: 12,000 BTU, R-454B refrigerant, Airflow: 212-332 CFM, Noise Level: 27-40 dB(A)
• PAC-LMA50BC: 5 ports, Voltage: 208/230V, Suction Connection: 5/8 inch
• PAC-LMA30BC: 3 ports, Voltage: 208/230V, Liquid Connection: 3/8 inch
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B refrigerants, Oxygen-Free Copper material
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs
• MLP-449WU: Designed for MLZ Series, Simple installation process

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the ceiling cassettes are ideal for installation in residential and commercial spaces. The branch boxes and distribution kit ensure efficient refrigerant management, making this bundle a perfect choice for optimizing climate control in various environments.
