Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+12K+12K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system, ideal for both residential and commercial applications. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, delivering robust heating and cooling capabilities to multiple indoor units. Complementing this are the MLZ-KX06NL and MLZ-KX12NL one-way ceiling cassette indoor units, designed for seamless integration and optimal air distribution in various spaces. The bundle also includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow, ensuring balanced performance across all connected units. With the addition of the MSDD-50AR2-E branch pipe distribution kit and the necessary grilles (MLP-448WU and MLP-449WU), this package provides everything needed for a complete and efficient HVAC setup.

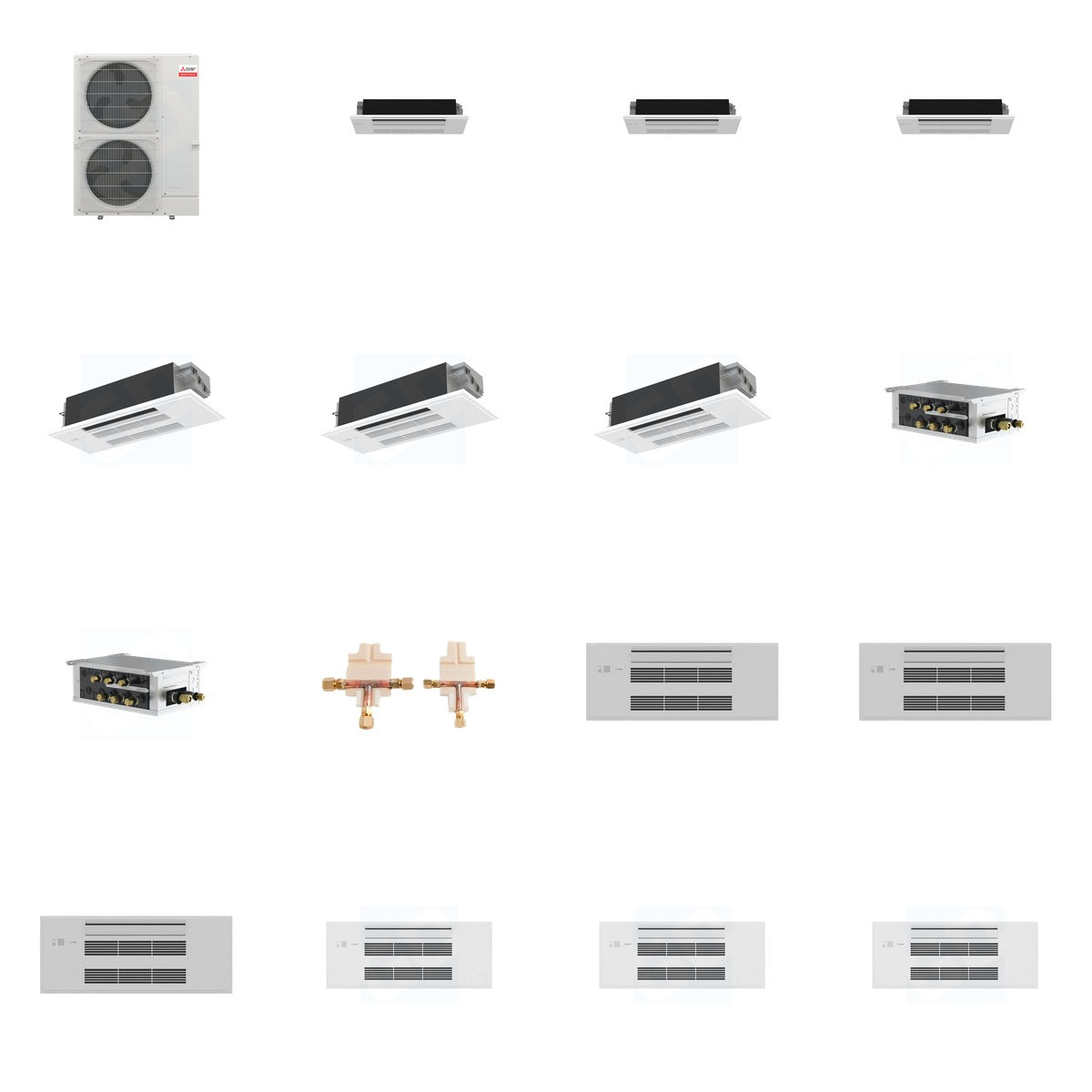

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 495.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating Capacity: 48,000 BTU, Cooling Capacity: 42,000 BTU
• MLZ-KX06NL: 6,000 BTU, R-454B refrigerant, Airflow: 152-198 CFM, Noise Level: 29-36 dB(A)
• MLZ-KX12NL: 12,000 BTU, R-454B refrigerant, Airflow: 212-332 CFM, Noise Level: 26-40 dB(A)
• PAC-LMA50BC: 5 ports, 208/230V, 1 phase, 60 Hz
• PAC-LMA30BC: 3 ports, 208/230V, 1 phase, 60 Hz
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper, compatible with R-410A/R-454B
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs
• MLP-449WU: Compatible with MLZ Series, Weight: 7.9 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the ceiling cassettes are perfect for spaces up to 200 square feet. The branch boxes facilitate refrigerant management, ensuring optimal performance and temperature control throughout the system.
