Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 5-Zone Wall-Mounted Mini Split Heat Pump System - 6K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, designed to efficiently manage multiple indoor zones with its advanced refrigerant flow management. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL), this setup ensures optimal heating and cooling for various room sizes, making it ideal for both residential and commercial applications. The included PAC-LMA50BC branch box facilitates seamless connections between the outdoor unit and indoor handlers, enhancing system efficiency and performance.

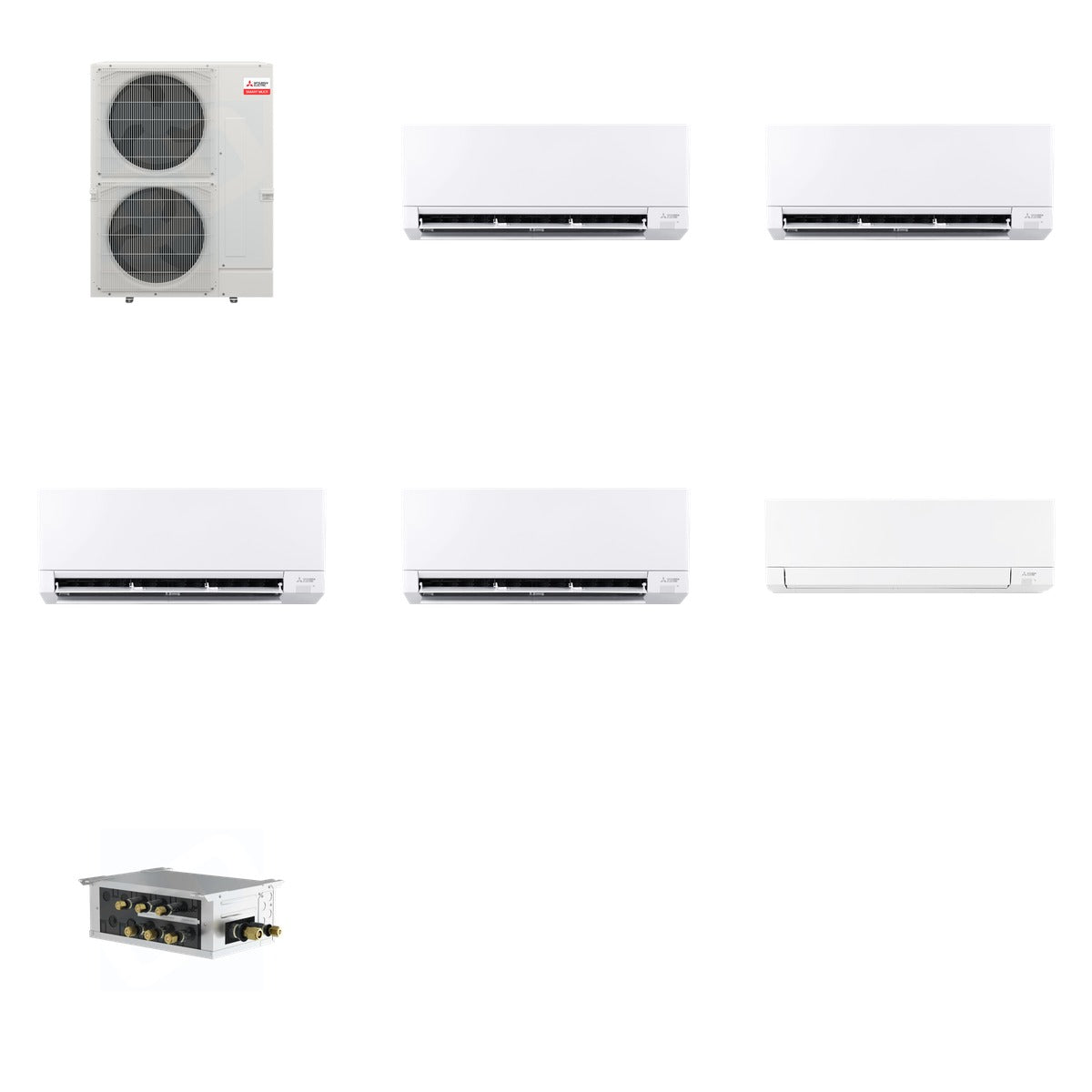

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 342 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2 up to 21.50, dimensions 41-11/32"W x 13"D x 52-11/16"H
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 28.4, dimensions 31 19/48"W x 11 37/48"H x 9 31/48"D
• MSZ-GX12NL: 12,000 BTU, R454B refrigerant, SEER2 up to 28.4, dimensions 31.39"W x 11.77"H x 9.65"D
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, SEER2 up to 28.4, dimensions 31.40"W x 11.77"H x 9.65"D
• PAC-LMA50BC: 5 ports, compatible with MXZ models, dimensions 17 3/4"W x 6 3/4"H x 11 1/16"D

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial spaces. The outdoor heat pump unit connects to various indoor air handlers, allowing for customized climate control across multiple rooms. Compatible with M-Series and City Multi indoor units, this system is versatile and efficient.
