Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+15K+15K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient multi-zone heating and cooling system. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to eight indoor zones with its advanced inverter technology and R454B refrigerant. Complementing this are the SLZ-AF12NL and SLZ-AF15NL ceiling-mounted air handlers, which provide flexible air management and individual control in both single and multi-zone applications. The PAC-LMA50BC branch box ensures optimal refrigerant flow between the outdoor unit and indoor units, while the SLP-18FAU grille enhances air distribution, making this bundle ideal for both residential and commercial settings.

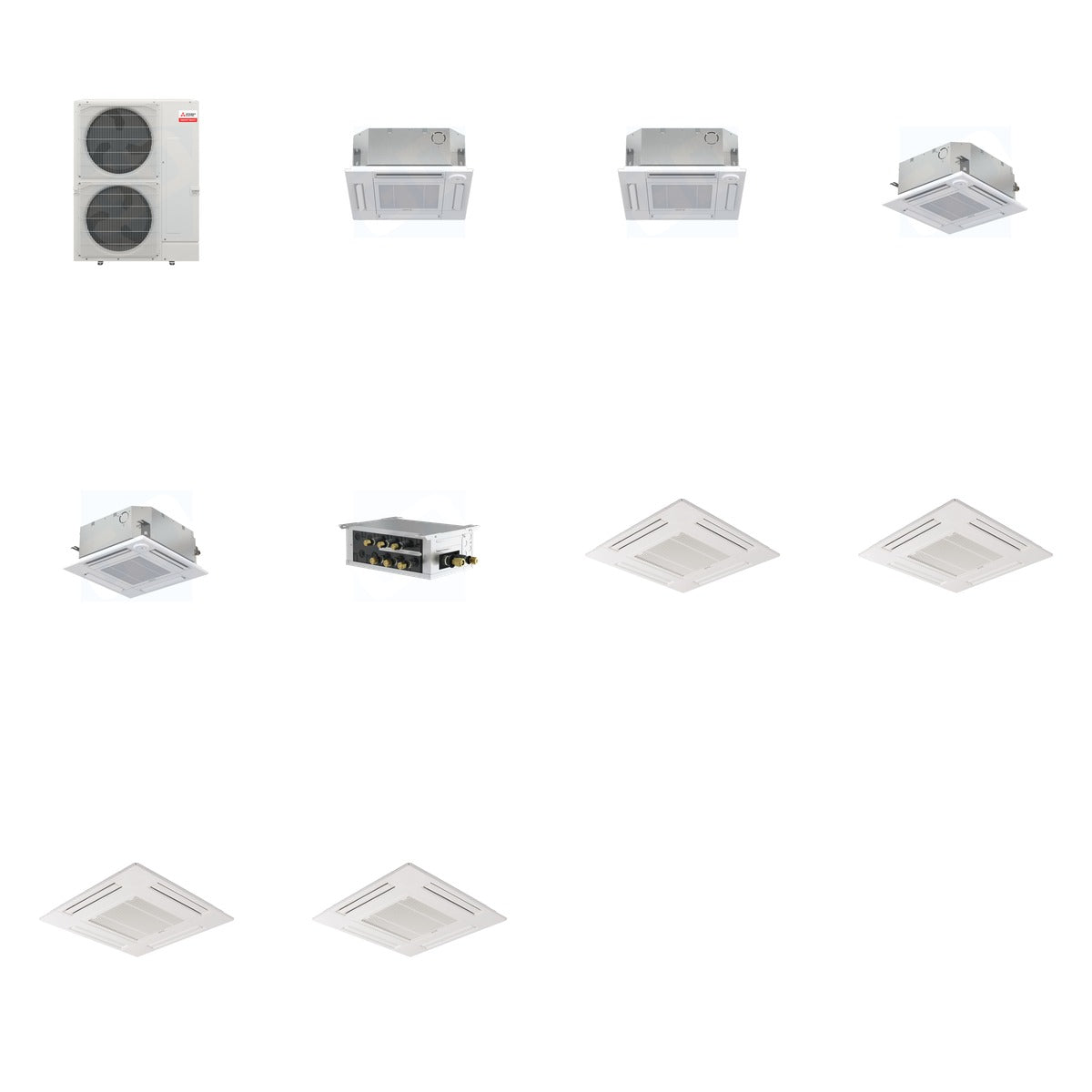

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 392 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 28 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 12,000 BTU (x2), 15,000 BTU (x2)
• Refrigerant Type: R-454B
• SEER2 Rating: Up to 21.50
• Heating Minimum Temp: -24°F
• Cooling Minimum Temp: 5°F
• Electrical: 208/230 V
• Branch Box Ports: 5
• Dimensions (MXZ-SM48NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SLZ-AF12NL): 22-7/16 x 22-7/16 x 8-4/16 inches
• Dimensions (SLZ-AF15NL): 22-7/16 x 22-7/16 x 8-3/16 inches
• Grille Dimensions: 24.60 x 24.60 x 0.40 inches

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The MXZ-SM48NL outdoor unit is compatible with M- and P-Series indoor units, while the SLZ-AF12NL and SLZ-AF15NL air handlers offer flexible installation options for various ceiling types. The included branch box and grilles ensure seamless integration and optimal air distribution across all connected zones.
