Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K+15K

Description

This comprehensive HVAC bundle features high-performance components from Mitsubishi Electric, designed to deliver efficient heating and cooling for both residential and commercial applications. The MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting multiple indoor units across various zones. Complementing this unit are three SLZ-AF12NL and one SLZ-AF15NL mini-split air handlers, providing flexible air management and precise temperature control. Additionally, the PAC-LMA50BC branch box ensures optimal refrigerant flow, while the SLP-18FAU grilles enhance air distribution. Together, these components create a versatile and efficient multi-zone climate control system.

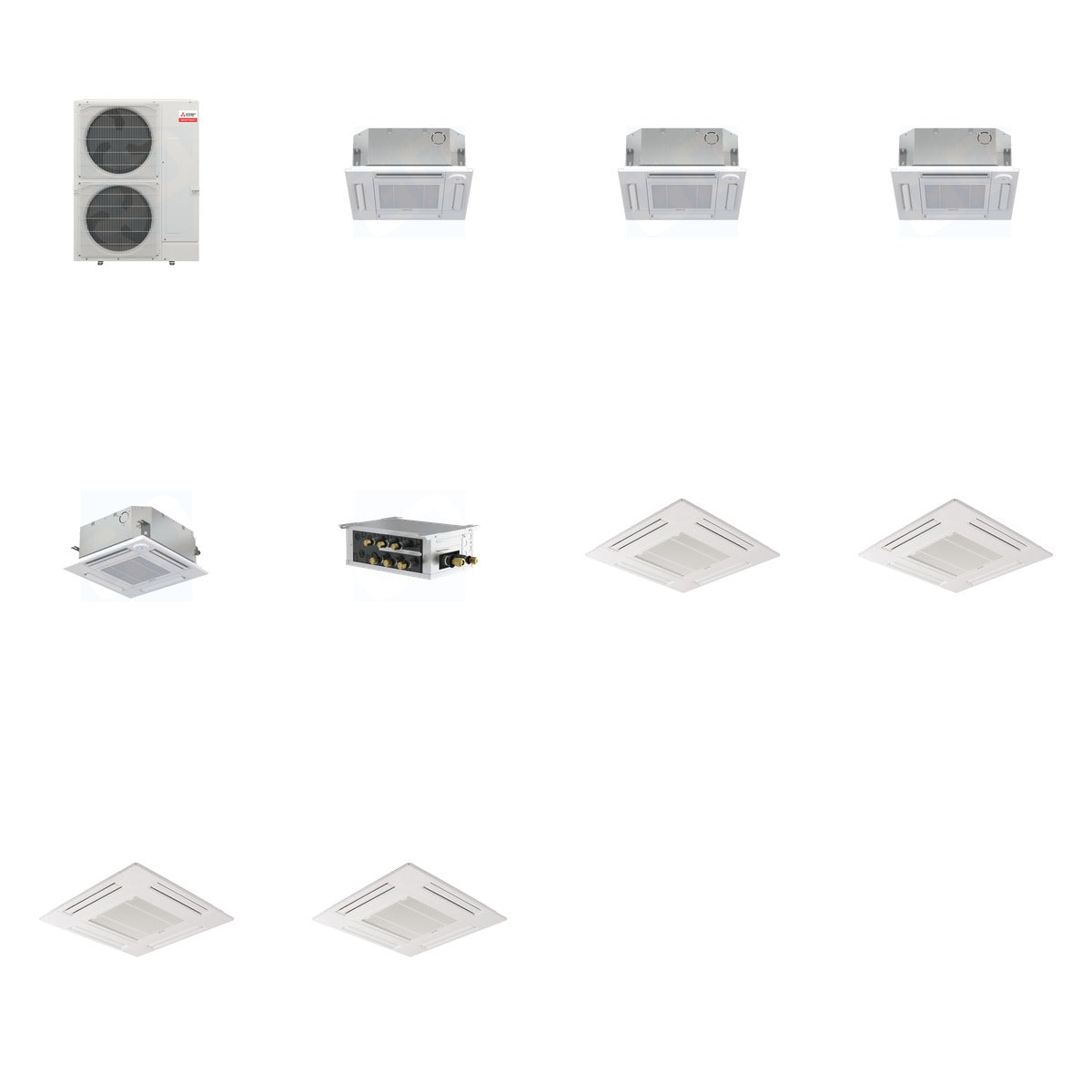

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF15NL - M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Grille for SLZ-AF Series (Qty x4)

Key Details

• Weight of Bundle: 392 lb (Mitsubishi 225 lb + Mitsubishi 99 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 28 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling Minimum Temp: 5°F, Heating Minimum Temp: -24°F
• SLZ-AF12NL: 12,000 BTU, R-454B refrigerant, Input Voltage: 208/230 V, Airflow: 230-335 CFM
• SLZ-AF15NL: 15,000 BTU, R-454B refrigerant, Cooling Capacity: 15,000 BTU, Heating Capacity: 18,000 BTU
• PAC-LMA50BC: 5 ports, Voltage: 208/230 V, Suction Connection Size: 5/8 Inch
• SLP-18FAU: Compatible with SLZ-KF09-18 models, Weight: 3 lbs

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, suitable for both residential and commercial environments. The components are compatible with various Mitsubishi Electric indoor units, allowing for flexible installation and efficient climate control across multiple spaces.
