Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K+12K

Description

The Mitsubishi Electric HVAC bundle offers a comprehensive solution for efficient heating and cooling across multiple zones. Featuring the MXZ-SM48NL outdoor heat pump unit, this bundle is designed to support various indoor units, making it ideal for both residential and commercial applications. The included SLZ-AF12NL air handlers provide flexible installation options and advanced air management capabilities, while the PAC-LMA50BC branch box ensures optimal refrigerant flow to maximize system efficiency. Completing the bundle, the SLP-18FAU grille enhances air distribution for a comfortable environment. Together, these components create a powerful and adaptable climate control system tailored to meet diverse needs.

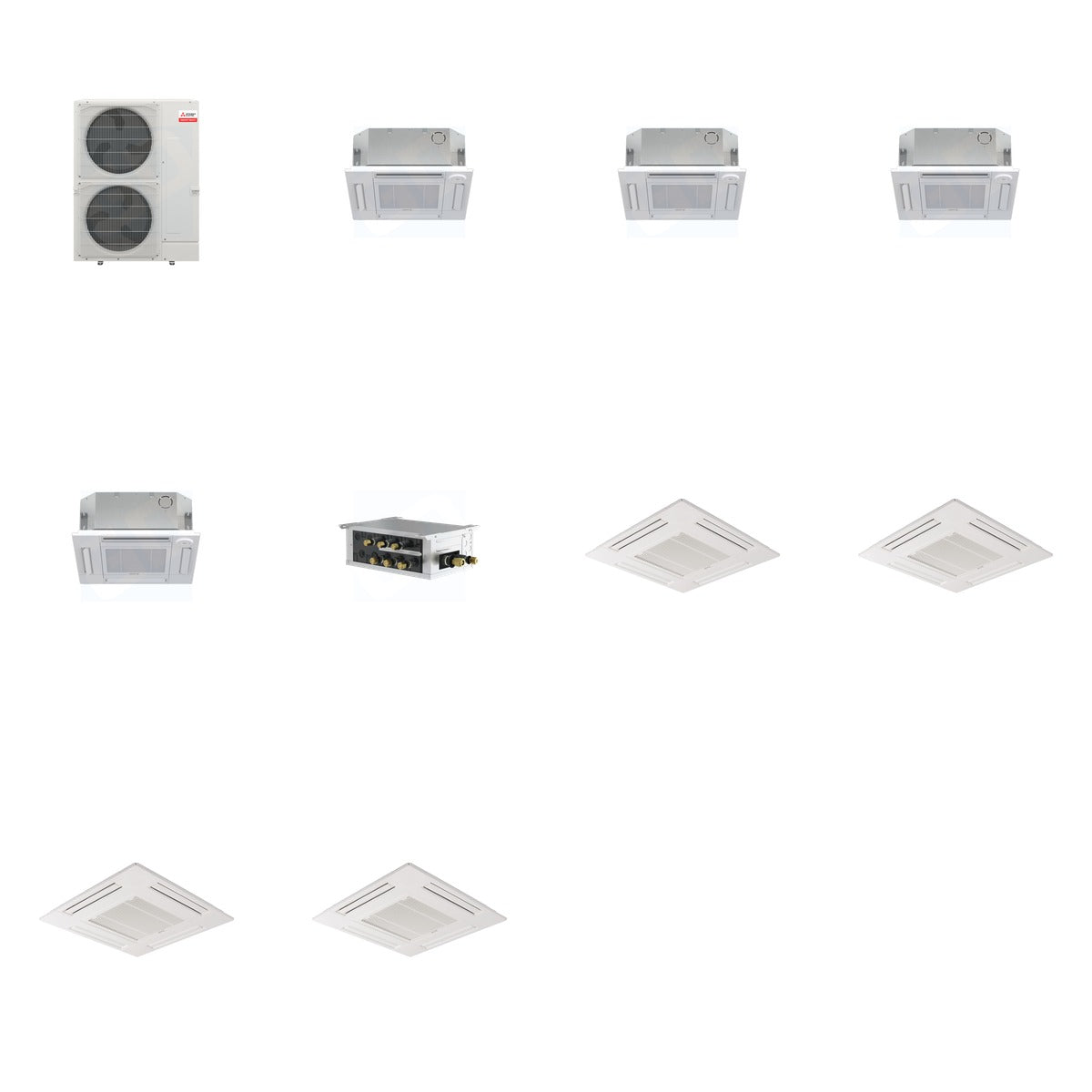

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 392 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 7 lb + Mitsubishi 28 lb)
• Cooling Capacity: Up to 42,000 BTU/h
• Heating Capacity: Up to 48,000 BTU/h
• Refrigerant Type: R454B
• SEER2: 21.50 / 19.50 / 17.50
• Voltage: 208/230 V
• Dimensions (MXZ-SM48NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SLZ-AF12NL): 22-7/16 x 22-7/16 x 8-4/16 inches
• Branch Box Ports: 5
• Weight (PAC-LMA50BC): 16 lbs

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, compatible with Mitsubishi Electric's M-, P-Series, and City Multi indoor units. The MXZ-SM48NL outdoor unit connects to multiple indoor air handlers, while the PAC-LMA50BC branch box facilitates efficient refrigerant management. Ideal for both residential and commercial applications, this system provides flexible installation options and advanced control features.
