Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+15K+15K

Description

This comprehensive HVAC bundle features high-efficiency components designed for optimal performance in multi-zone heating and cooling applications. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of supporting up to 12 zones, making it ideal for both residential and commercial settings. Paired with two wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX15NL, this bundle ensures effective climate control for spaces ranging from 250 to 2000 square feet. The inclusion of the PAC-LMA30BC 3-Port Branch Box allows for seamless integration of multiple indoor units, ensuring balanced refrigerant distribution and consistent temperature maintenance across all zones.

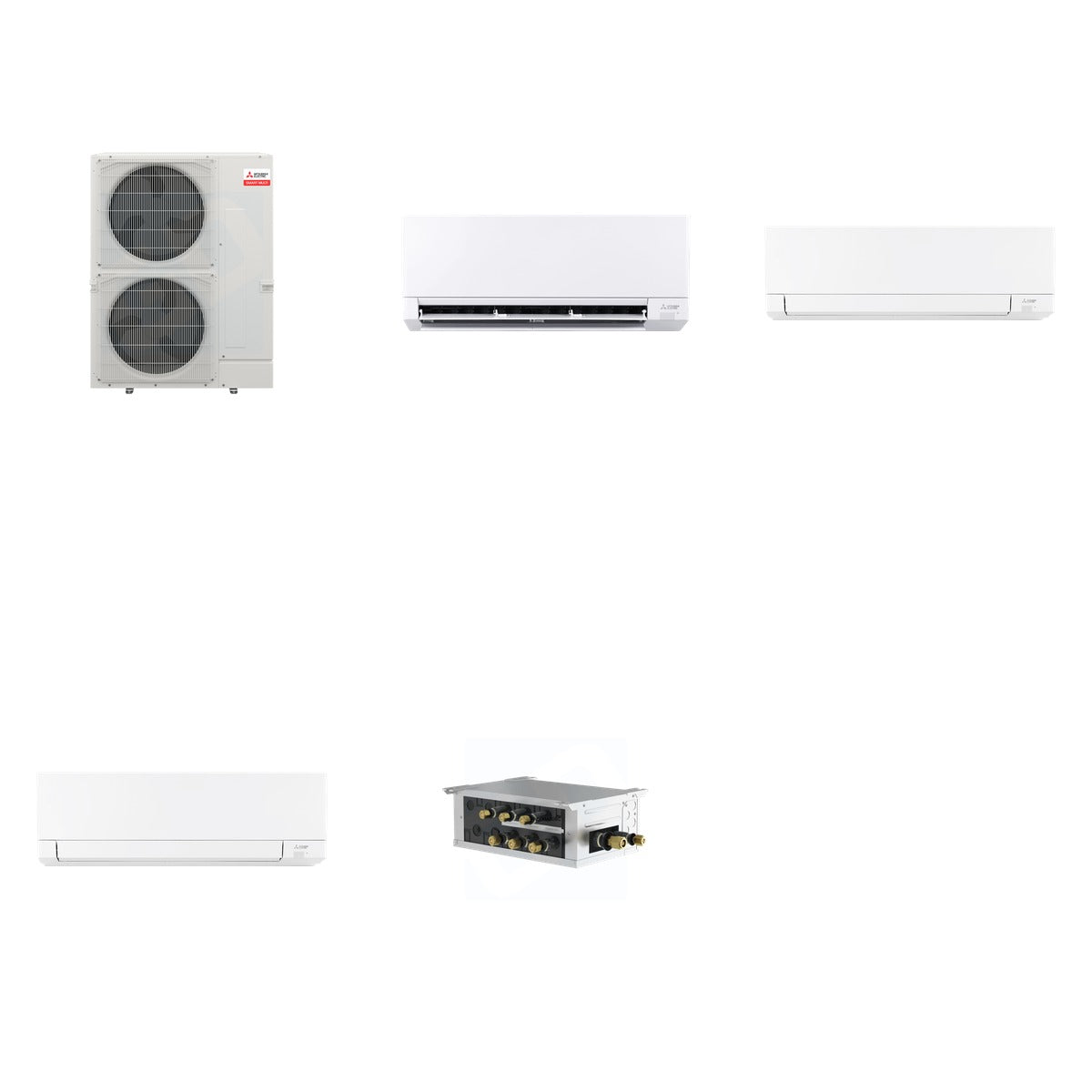

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 296 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MSZ-GX06NL: 6,000 BTU, SEER2: Up to 28.4, R454B refrigerant
• MSZ-GX15NL: 15,000 BTU, SEER2: Not specified, R454B refrigerant
• PAC-LMA30BC: Supports 3 indoor units, R454B refrigerant
• Voltage: 208/230V for all units
• Dimensions: MXZ-SM48NL - 41-11/32 x 13 x 52-11/16 in; MSZ-GX06NL - 11.78 x 31.40 x 9.65 in; MSZ-GX15NL - 11.77 x 31.40 x 9.65 in; PAC-LMA30BC - 17.75 x 11.06 x 6.75 in

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions across various indoor environments. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers are perfect for single or multi-zone configurations, ensuring optimal comfort in homes and commercial spaces alike.
