Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 12K+15K+24K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, paired with three advanced wall-mounted air handlers: the MSZ-GX12NL, MSZ-GX15NL, and MSZ-GX24NL. This combination is designed for optimal performance in multi-zone systems, providing efficient heating and cooling across various spaces. The MXZ-SM48NL serves as a powerful outdoor unit capable of supporting up to twelve indoor units, while the air handlers offer sleek designs, whisper-quiet operation, and smart features like built-in Wi-Fi. Together, these components ensure maximum comfort and energy efficiency for both residential and commercial applications.

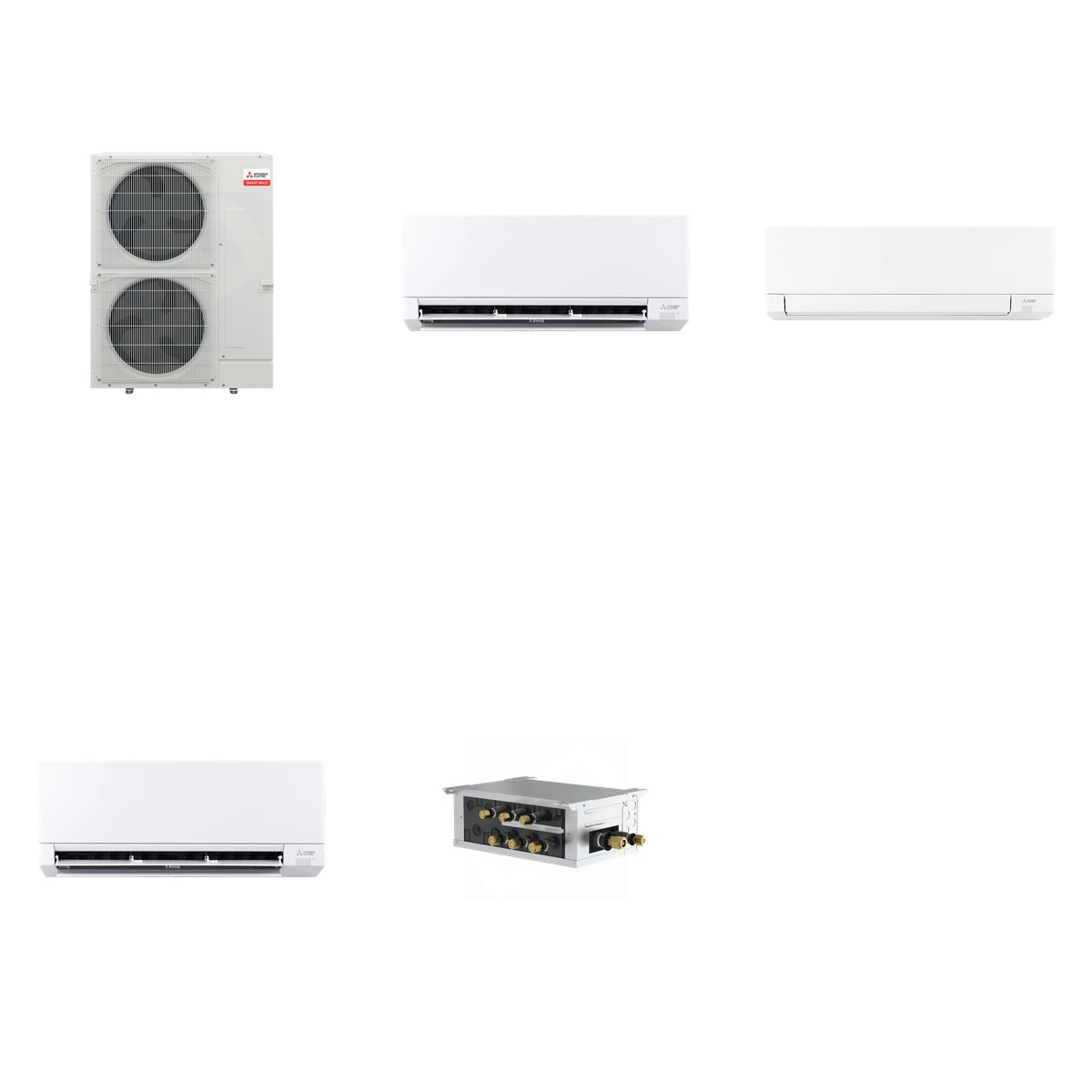

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 302 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant, dimensions: 41-11/32" W x 13" D x 52-11/16" H
• MSZ-GX12NL: 12,000 BTU, SEER2: Up to 28.4, dimensions: 31.39" W x 9.65" D x 11.77" H
• MSZ-GX15NL: 15,000 BTU, SEER2: Up to 28.4, dimensions: 31.40" W x 9.65" D x 11.77" H
• MSZ-GX24NL: 24,000 BTU, SEER2: Up to 28.4, dimensions: 43-5/16" W x 10-1/8" D x 12-13/16" H
• PAC-LMA30BC: Connects 3 indoor units, dimensions: 17-3/4" W x 11-1/16" D x 6-3/4" H

Use & Compatibility

This bundle is ideal for residential and commercial HVAC systems requiring efficient heating and cooling across multiple zones. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers are designed for seamless integration into multi-zone setups.
