Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 3-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+18K+18K

Description

This comprehensive HVAC bundle is designed for optimal climate control in both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports multiple indoor units, making it ideal for multi-zone applications. The included PLA-AE12NL and PLA-AE18NL ceiling cassette air handlers provide efficient heating and cooling, equipped with advanced features like the 3D i-see Sensor for precise temperature management. The PAC-LMA30BC branch box ensures balanced refrigerant distribution among the indoor units, while the PLP-41EAEU grilles enhance airflow and system efficiency. Together, these components create a powerful and flexible HVAC solution that meets modern environmental standards.

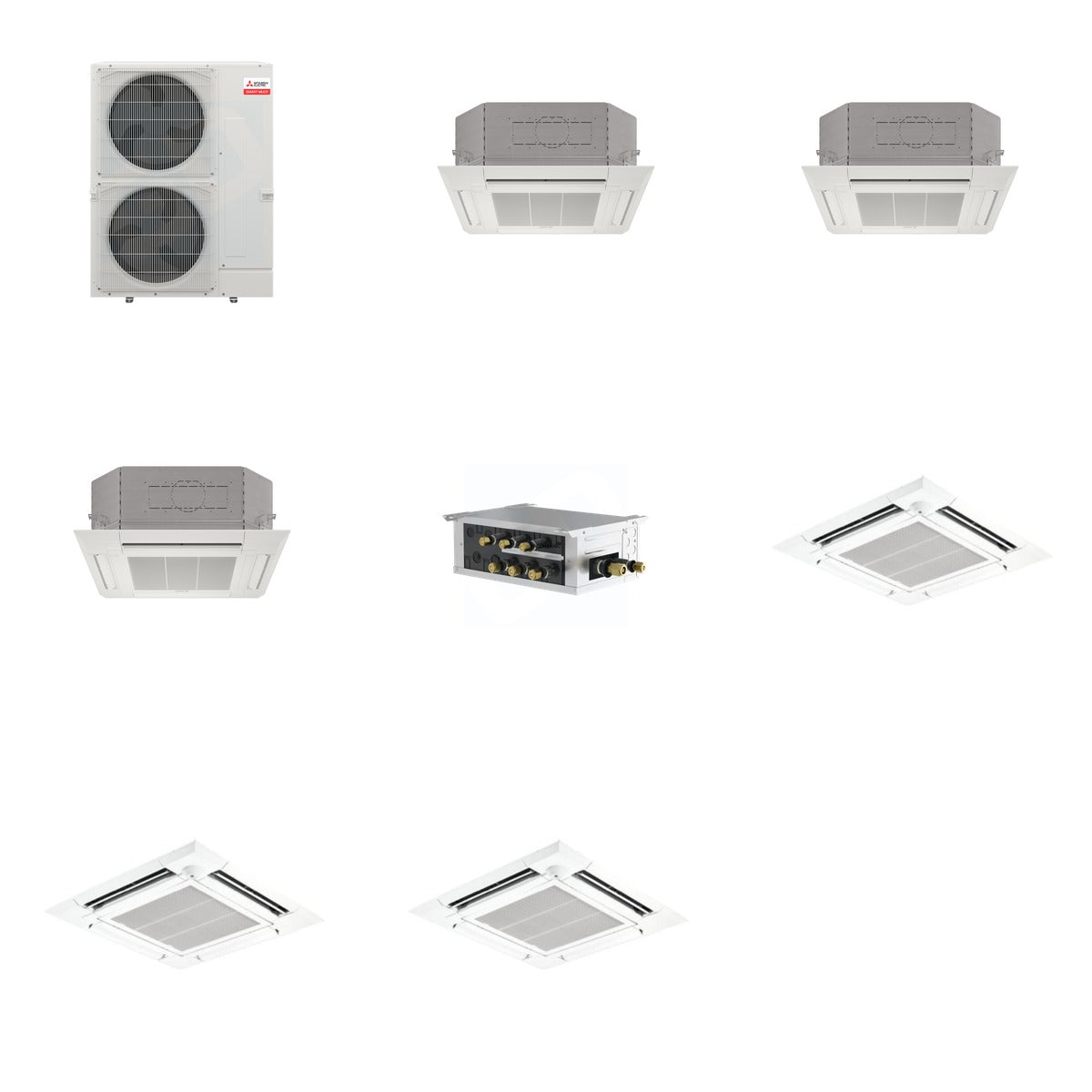

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

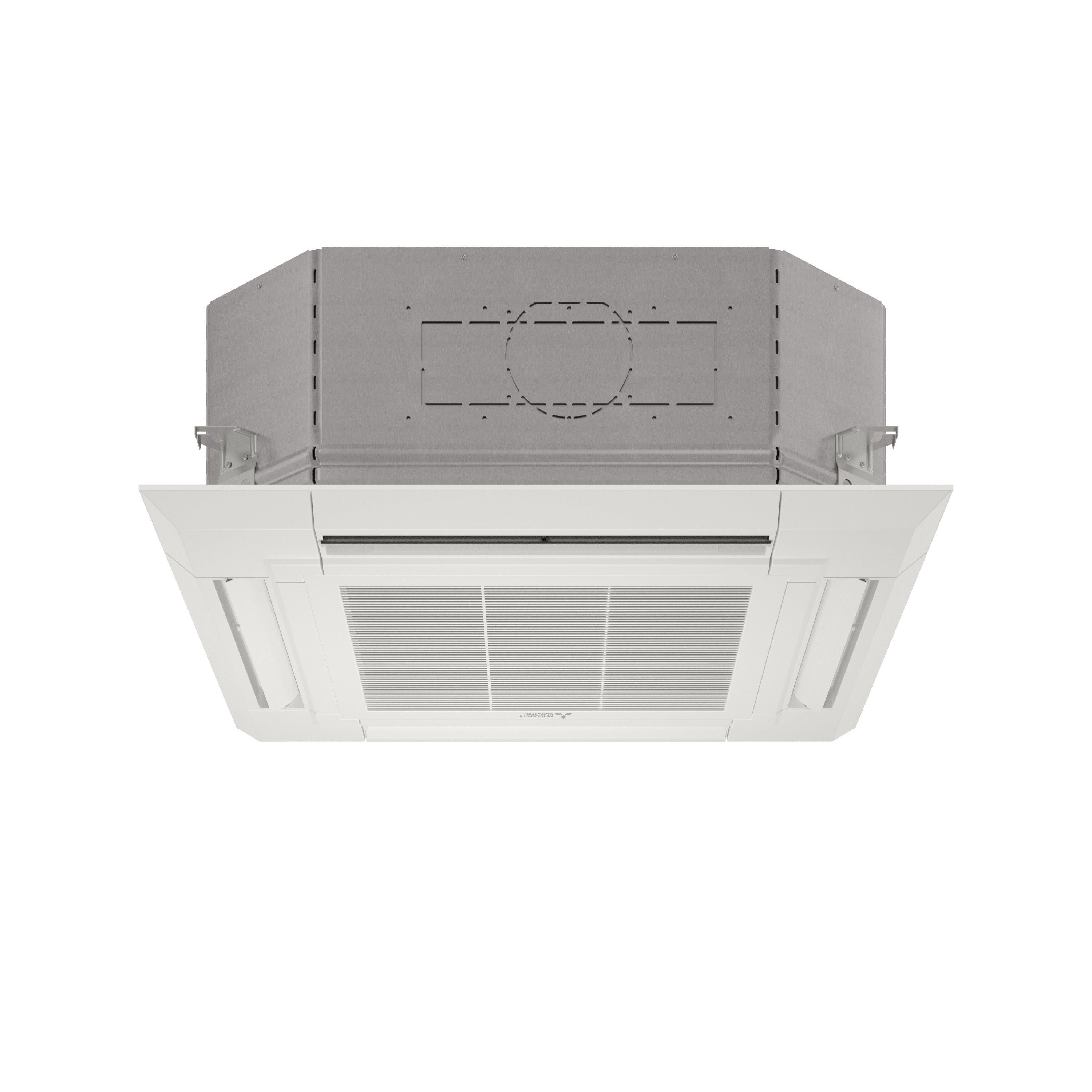

• MITSUBISHI ELECTRIC PLA-AE12NL - Mitsubishi Electric PLA-AE12NL R454B: 12,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PLA-AE18NL - Mitsubishi Electric PLA-AE18NL Ceiling Cassette Heating and Cooling (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Mitsubishi Electric PLP-41EAEU Ceiling Cassette Grille (Qty x3)

Key Details

• Weight of Bundle: 401 lb (Mitsubishi 225 lb + Mitsubishi 46 lb + Mitsubishi 92 lb + Mitsubishi 5 lb + Mitsubishi 33 lb)
• Cooling Capacity: 42,000 BTU (MXZ-SM48NL), 12,000 BTU (PLA-AE12NL), 18,000 BTU (PLA-AE18NL)
• Heating Capacity: 48,000 BTU (MXZ-SM48NL), 13,500 BTU (PLA-AE12NL), 23,000 BTU (PLA-AE18NL)
• Refrigerant Type: R454B
• SEER2 Rating: Up to 24.7 (PLA-AE18NL)
• Voltage: 208/230 V
• Dimensions (MXZ-SM48NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (PLA-AE12NL): 33-1/16 W x 33-1/16 D x 11-3/4 H
• Dimensions (PLA-AE18NL): 33-1/16 W x 33-1/16 D x 10-3/16 H
• Weight: 46 lbs (PLA-AE12NL, PLA-AE18NL), 15 lbs (PLP-41EAEU)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The components are compatible with Mitsubishi Electric's M-Series and P-Series indoor units, making them suitable for a variety of residential and commercial applications.
