Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful outdoor heat pump unit and multiple indoor units, this package is perfect for multi-zone applications. The Mitsubishi Electric MXZ-SM48NL serves as the backbone of the system, supporting up to eight indoor zones, while the SLZ-AF series units offer versatile installation options and customizable airflow. With advanced refrigerant technology and built-in condensate management, this bundle ensures optimal performance and comfort in any environment.

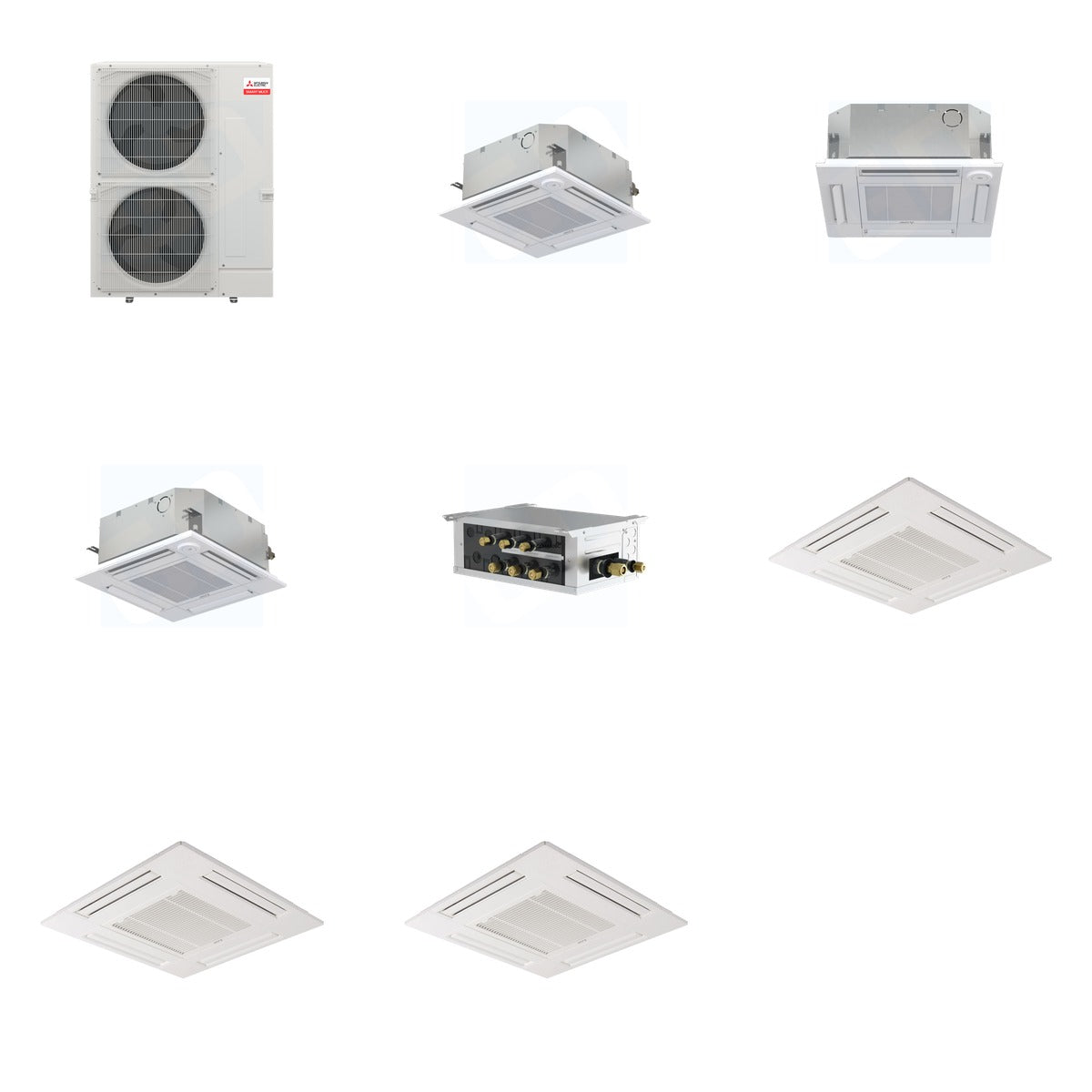

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 350 lb (Mitsubishi 225 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 5 lb + Mitsubishi 21 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling Minimum Temp: 5°F
• SLZ-AF09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V, 25 dB minimum sound level
• SLZ-AF12NL: 12,000 BTU, R454B refrigerant, 208/230V, WiFi enabled
• SLZ-AF15NL: 15,000 BTU cooling, 18,000 BTU heating, 208/230V, 27 dB minimum sound level
• PAC-LMA30BC: Connects up to 3 indoor units, R454B compatible, dimensions: 17.75 x 11.06 x 6.75 inches
• SLP-18FAU: Grille for SLZ-AF series, dimensions: 24.60 x 24.60 inches

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor heat pump unit is compatible with multiple indoor units, allowing for flexible installation configurations. Perfect for both residential and commercial applications, this system ensures optimal comfort and energy efficiency.
