Mitsubishi Multi-Zone 48000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+36K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed for efficient heating and cooling across multiple zones. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of connecting to up to eight indoor units, while the SVZ-AP18NL and SVZ-AP36NL ducted air handlers provide flexible installation options and optimal comfort for varying room sizes. The PAC-LMA30BC branch box ensures balanced refrigerant distribution, making this bundle ideal for both residential and light commercial applications. Together, these components deliver reliable performance, energy efficiency, and advanced technology for a superior indoor climate experience.

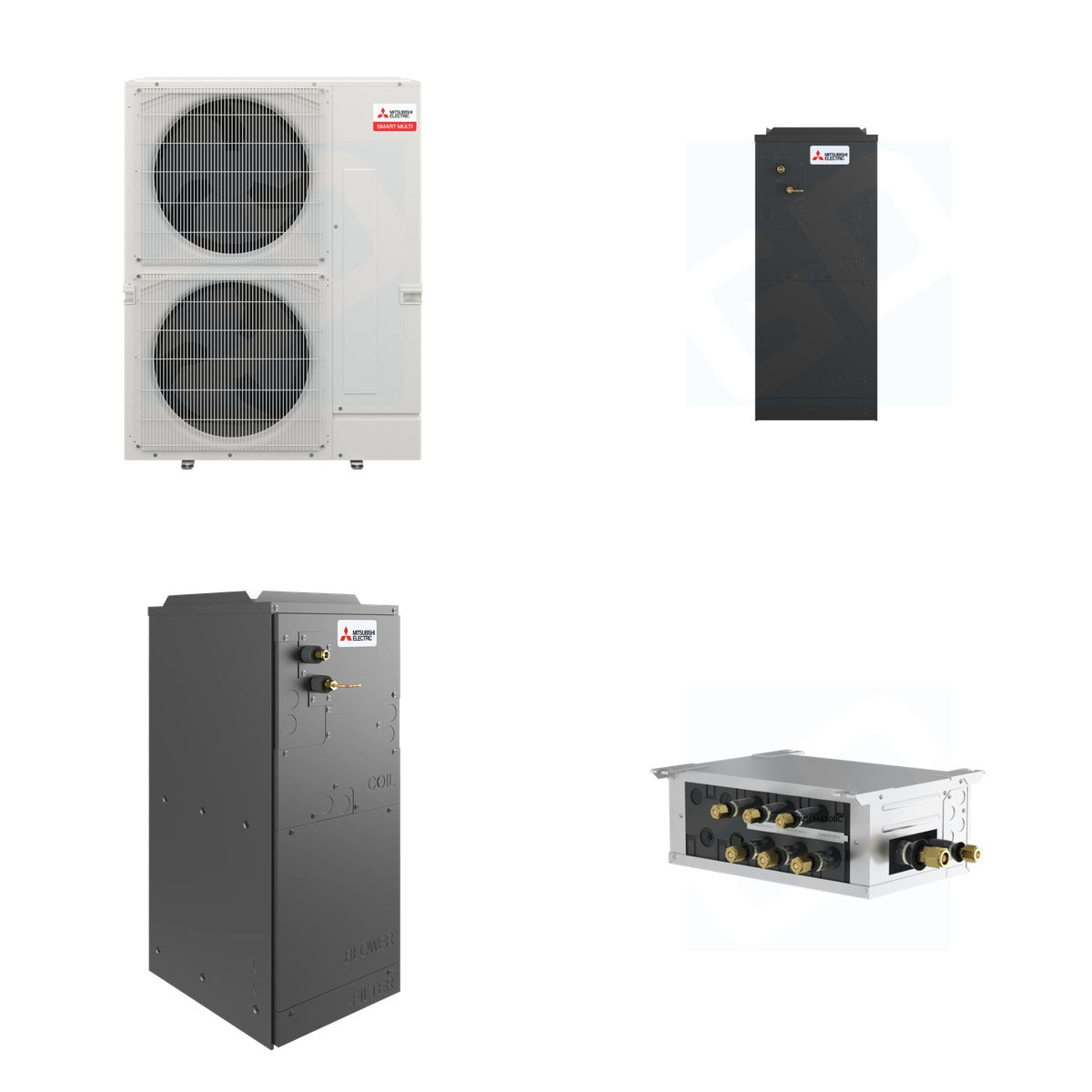

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP36NL - Mitsubishi Electric SVZ-AP36NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 36k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 461 lb (Mitsubishi 225 lb + Mitsubishi 104 lb + Mitsubishi 127 lb + Mitsubishi 5 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 18,000 BTU and 36,000 BTU
• Refrigerant Type: R454B
• SEER2 Ratings: Up to 21.50
• Heating Minimum Temperature: -24°F
• Cooling Minimum Temperature: 5°F
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): 17 x 21-5/8 x 39-13/16 and 21 x 21.625 x 43.875
• Power Supply: 208/230V

Use & Compatibility

This HVAC bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and light commercial environments. The outdoor heat pump unit can connect to multiple indoor units, providing flexibility in installation and operation. The included branch box enhances refrigerant distribution, ensuring optimal performance across all connected systems.
