Mitsubishi Multi-Zone 48000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+30K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric components, designed to deliver efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the backbone of the system, capable of supporting multiple indoor units across various zones. Paired with the SVZ-AP18NL and SVZ-AP30NL ducted air handlers, this bundle ensures optimal temperature control and airflow for larger spaces. The PAC-LMA30BC branch box enhances the system's versatility by allowing connections to multiple indoor units, ensuring balanced refrigerant distribution. Together, these components create a powerful and adaptable HVAC system that meets diverse climate control needs.

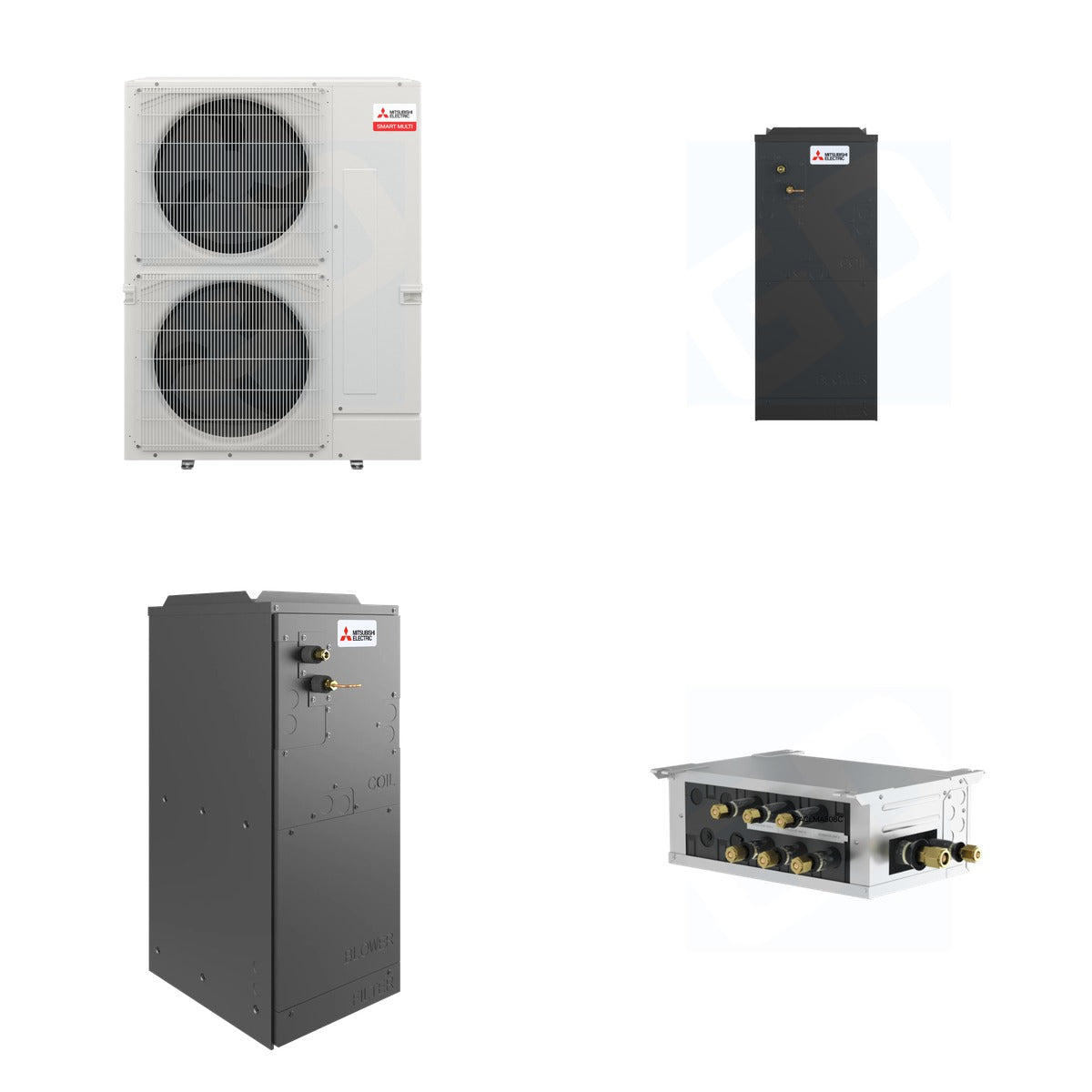

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP30NL - Mitsubishi Electric SVZ-AP30NL AP-Series Ducted Air Handler Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 461 lb (Mitsubishi 225 lb + Mitsubishi 104 lb + Mitsubishi 127 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant, up to 2000 sq ft coverage
• SVZ-AP18NL: 18,000 BTU, SEER2: 16.2, R454B refrigerant, up to 750 sq ft coverage
• SVZ-AP30NL: 30,000 BTU, SEER2: 17.8, R454B refrigerant, up to 1250 sq ft coverage
• PAC-LMA30BC: Supports 3 indoor units, R454B refrigerant, dimensions: 17.75 x 11.06 x 6.75 inches

Use & Compatibility

This HVAC bundle is ideal for both residential and light commercial applications, providing efficient heating and cooling across multiple zones. The outdoor heat pump unit is compatible with M- and P-Series indoor units as well as City Multi systems, while the ducted air handlers can be installed in various configurations to suit different spaces. The branch box facilitates seamless integration, ensuring optimal performance and temperature control.
