Mitsubishi Multi-Zone 48000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+24K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, designed for efficient multi-zone heating and cooling. Paired with the SVZ-AP18NL and SVZ-AP24NL ducted air handlers, this setup is perfect for both residential and light commercial applications. The MXZ-SM48NL supports up to 12 indoor units, making it ideal for larger spaces. The ducted air handlers offer flexible installation options and advanced features, ensuring optimal climate control. Completing the bundle is the PAC-LMA30BC 3-Port Branch Box, which facilitates balanced refrigerant distribution across multiple indoor units, enhancing system performance.

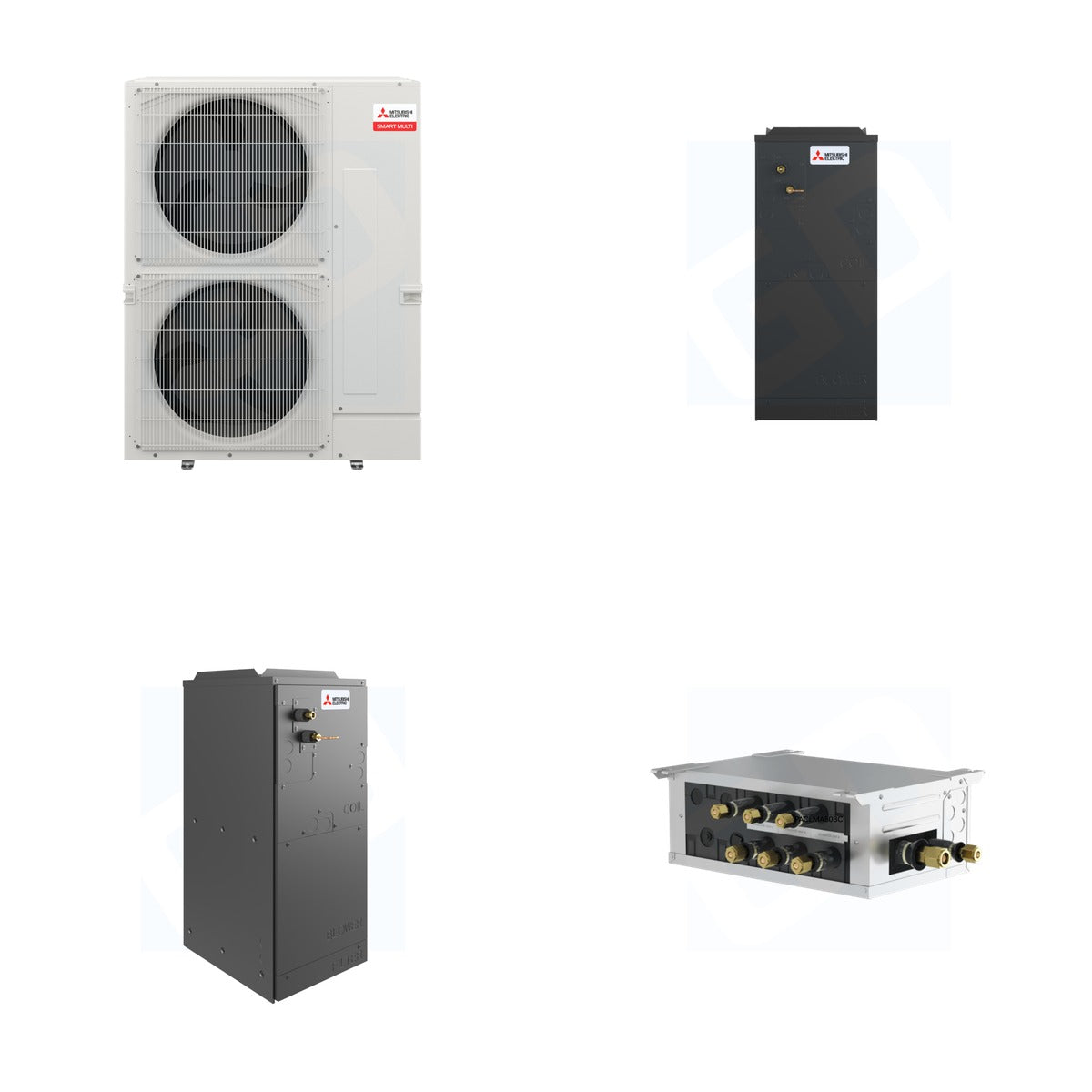

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

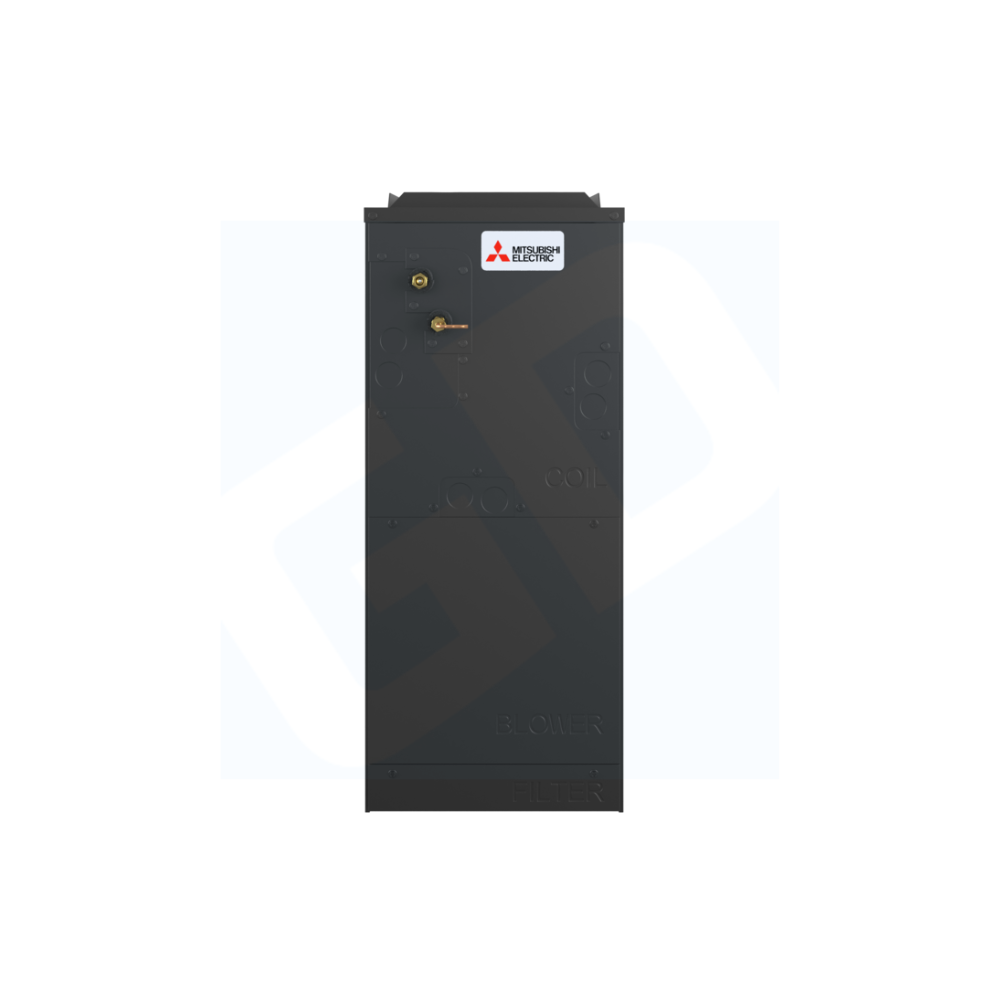

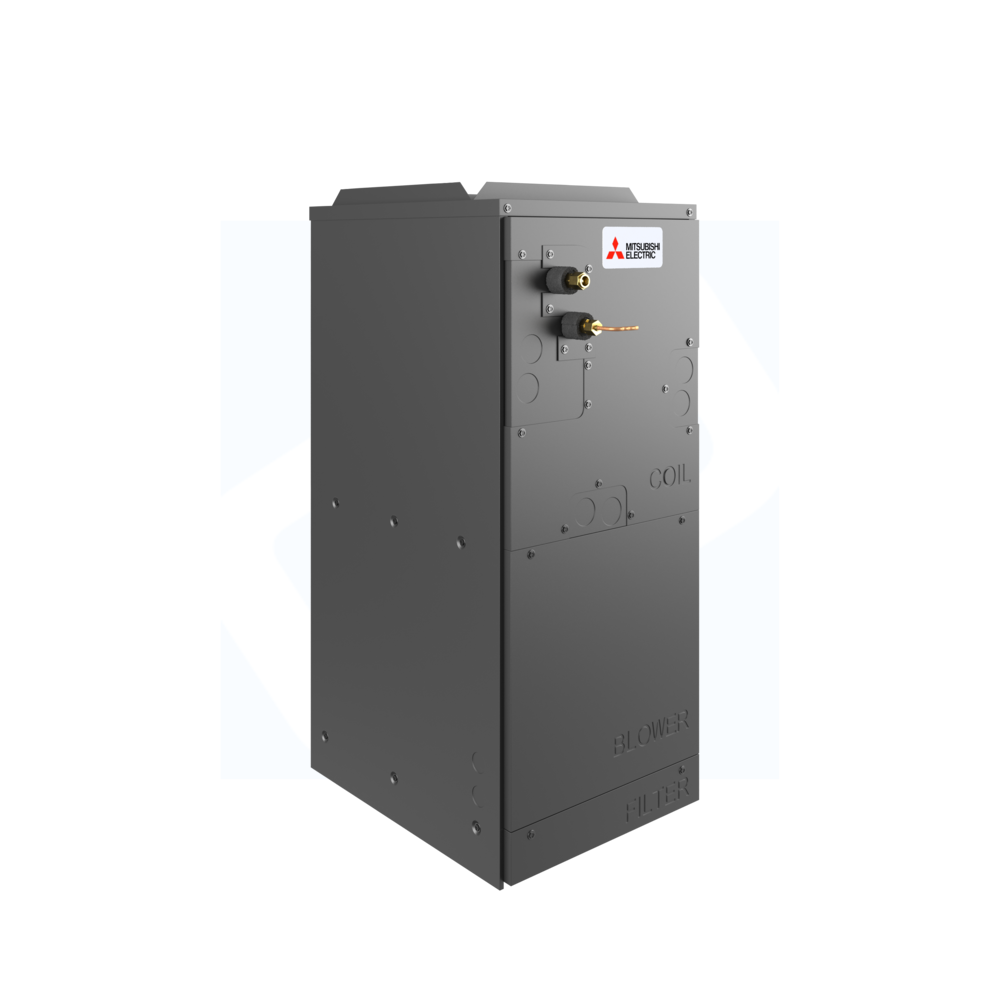

• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 438 lb (Mitsubishi 225 lb + Mitsubishi 104 lb + Mitsubishi 104 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU
• SVZ-AP18NL: 18,000 BTU, SEER2: 16.2, Heating Capacity: 23,800 BTU
• SVZ-AP24NL: 24,000 BTU, SEER2: 16.2, Heating Capacity: 23,000 BTU
• PAC-LMA30BC: Supports 3 indoor units, R454B refrigerant
• Voltage: 208/230V, Single-phase
• Dimensions: MXZ-SM48NL: 41-11/32 W x 13 D x 52-11/16 H; SVZ-AP18NL/SVZ-AP24NL: 17 x 21-5/8 x 39-13/16 inches; PAC-LMA30BC: 17.75 x 11.0625 x 6.75 inches

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications, making it suitable for both residential and light commercial environments. The outdoor heat pump unit connects seamlessly with the ducted air handlers, while the branch box ensures optimal refrigerant distribution across up to three indoor units.
