Mitsubishi Multi-Zone 48000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+36K

Description

This comprehensive bundle features top-of-the-line Mitsubishi Electric HVAC components designed for optimal performance in multi-zone heating and cooling applications. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting multiple indoor units for efficient climate control across various spaces. Paired with the SVZ-AP12NL and SVZ-AP36NL ducted air handlers, this setup ensures precise temperature management and air circulation tailored to your needs. The PAC-LMA30BC branch box enhances system efficiency by facilitating balanced refrigerant distribution among connected indoor units. Together, these components create a robust and versatile HVAC solution suitable for both residential and commercial environments.

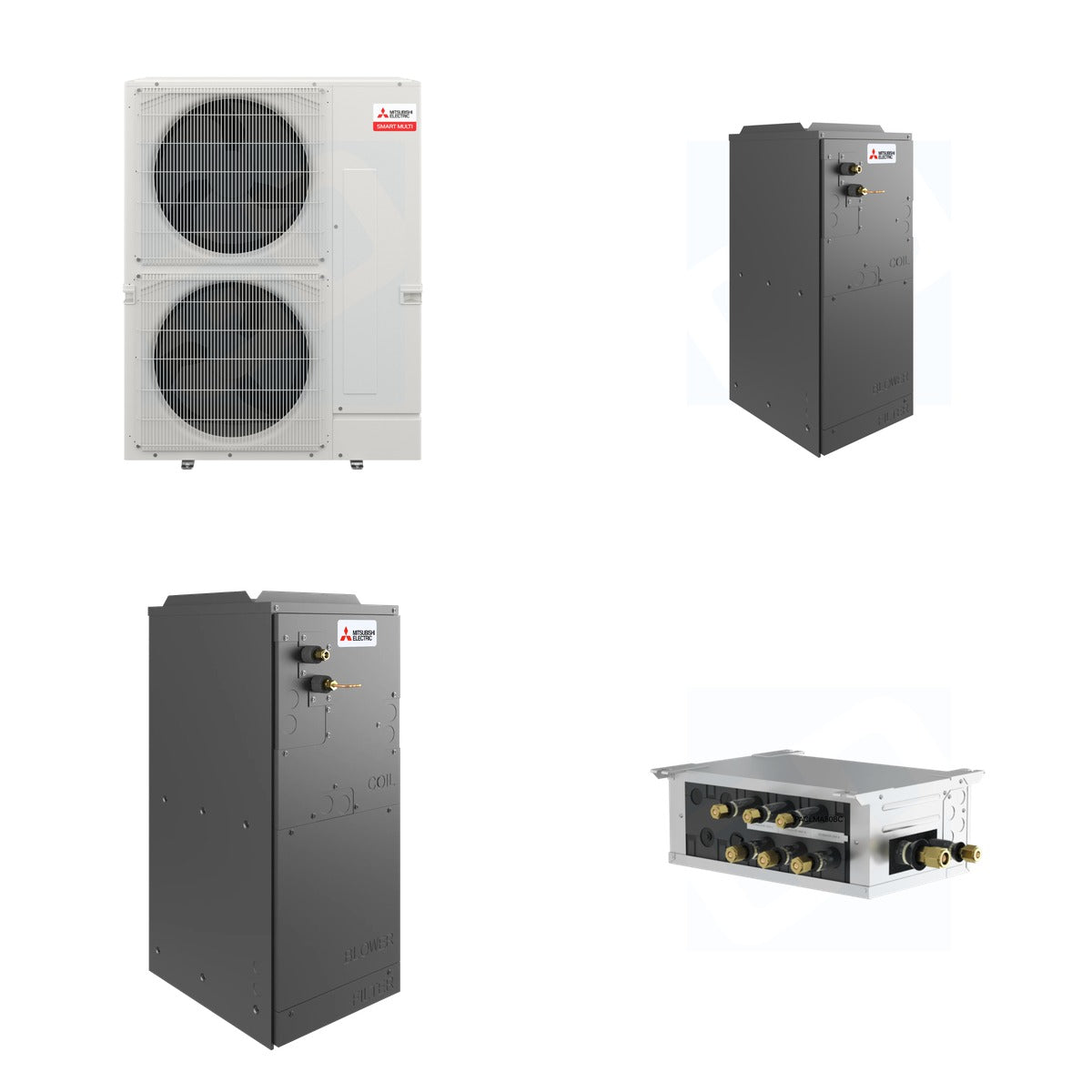

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

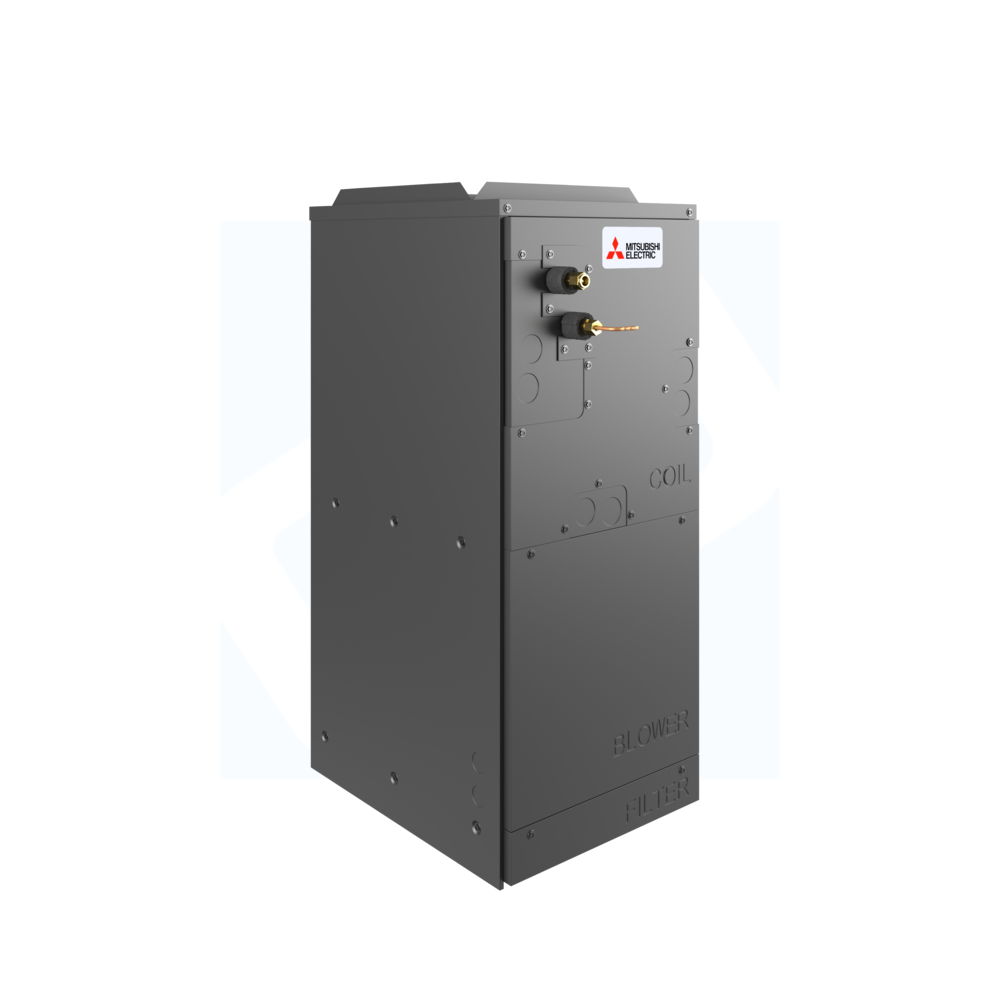

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x1)

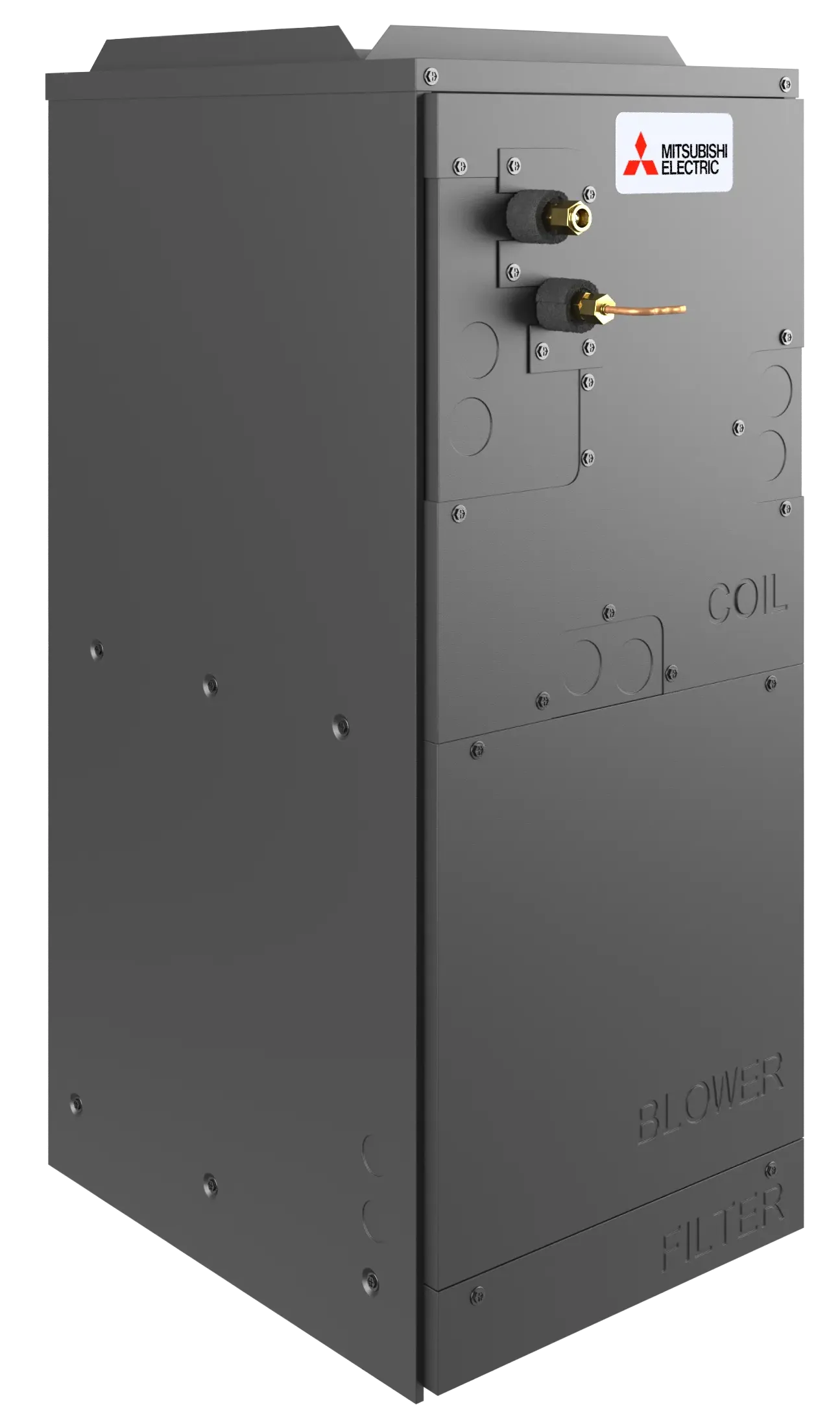

• MITSUBISHI ELECTRIC SVZ-AP36NL - Mitsubishi Electric SVZ-AP36NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 36k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 454 lb (Mitsubishi 225 lb + Mitsubishi 97 lb + Mitsubishi 127 lb + Mitsubishi 5 lb)
• Cooling Capacity: 42,000 BTU (MXZ-SM48NL), 11,400 BTU (SVZ-AP12NL), 36,000 BTU (SVZ-AP36NL)
• Heating Capacity: 48,000 BTU (MXZ-SM48NL), 15,000 BTU (SVZ-AP12NL), 37,000 BTU (SVZ-AP36NL)
• Refrigerant Type: R454B
• SEER2: 21.50 (MXZ-SM48NL), 15.8 (SVZ-AP36NL)
• Voltage: 208/230 V
• Dimensions: MXZ-SM48NL (41-11/32 W x 13 D x 52-11/16 H), SVZ-AP12NL (17 x 21-5/8 x 39-13/16 inches), SVZ-AP36NL (21 x 21.625 x 43.875 inches), PAC-LMA30BC (17.75 x 11.0625 x 6.75 inches)
• Weight: SVZ-AP12NL (97 lbs), SVZ-AP36NL (122 lbs), PAC-LMA30BC (15 lbs)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications in residential and commercial settings. The outdoor heat pump connects seamlessly with the ducted air handlers, providing efficient climate control across multiple zones. The branch box ensures optimal refrigerant distribution, making it compatible with various indoor unit configurations.
