Mitsubishi Multi-Zone 48000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+12K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, along with two concealed duct indoor units (SEZ-AD09NL and SEZ-AD12NL) and a 3-port branch box (PAC-LMA30BC). This combination is perfect for creating a multi-zone heating and cooling system that can efficiently manage temperature across various spaces in residential or commercial settings. The outdoor unit connects seamlessly with the indoor units, providing optimal performance with R454B refrigerant, while the branch box ensures balanced refrigerant distribution for consistent comfort.

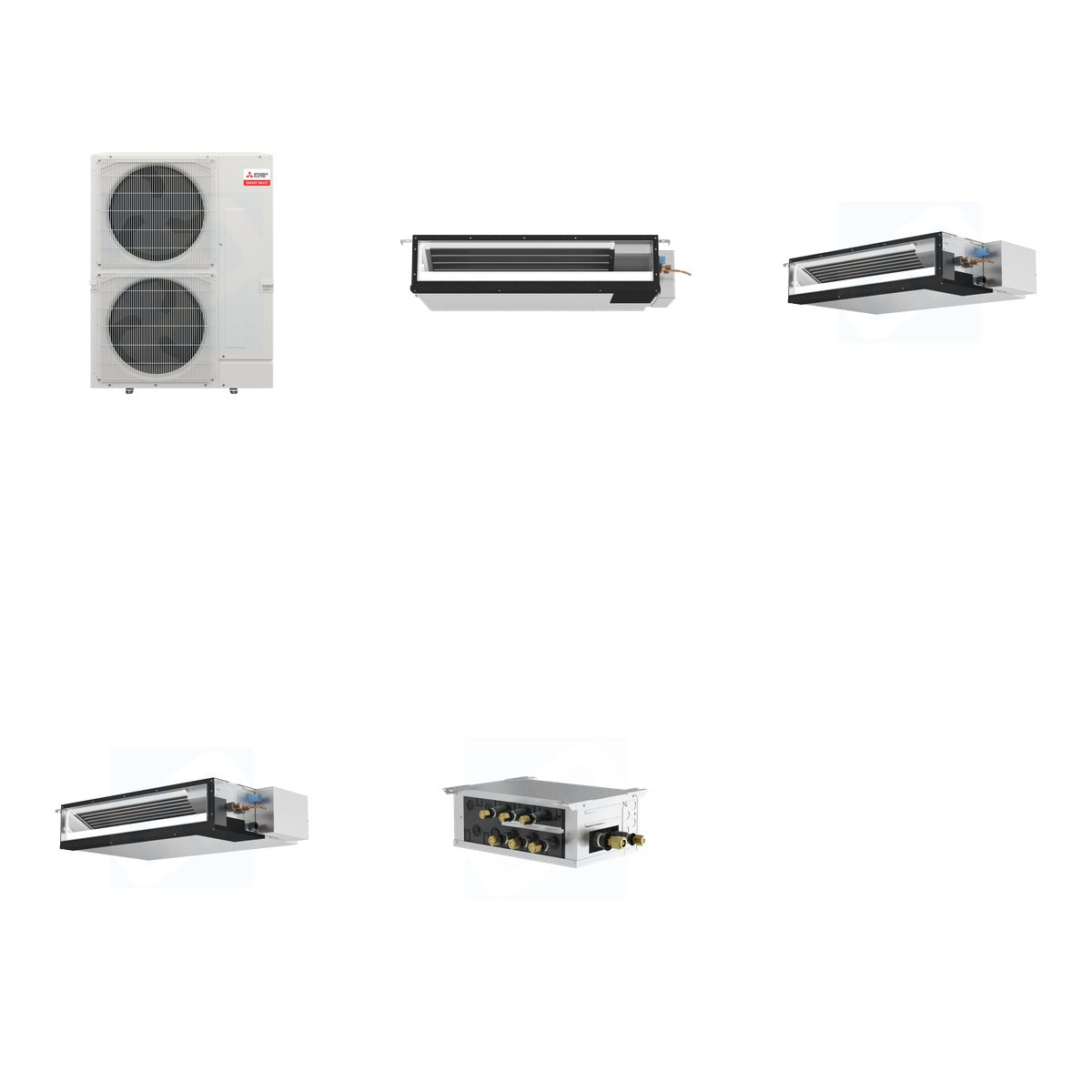

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

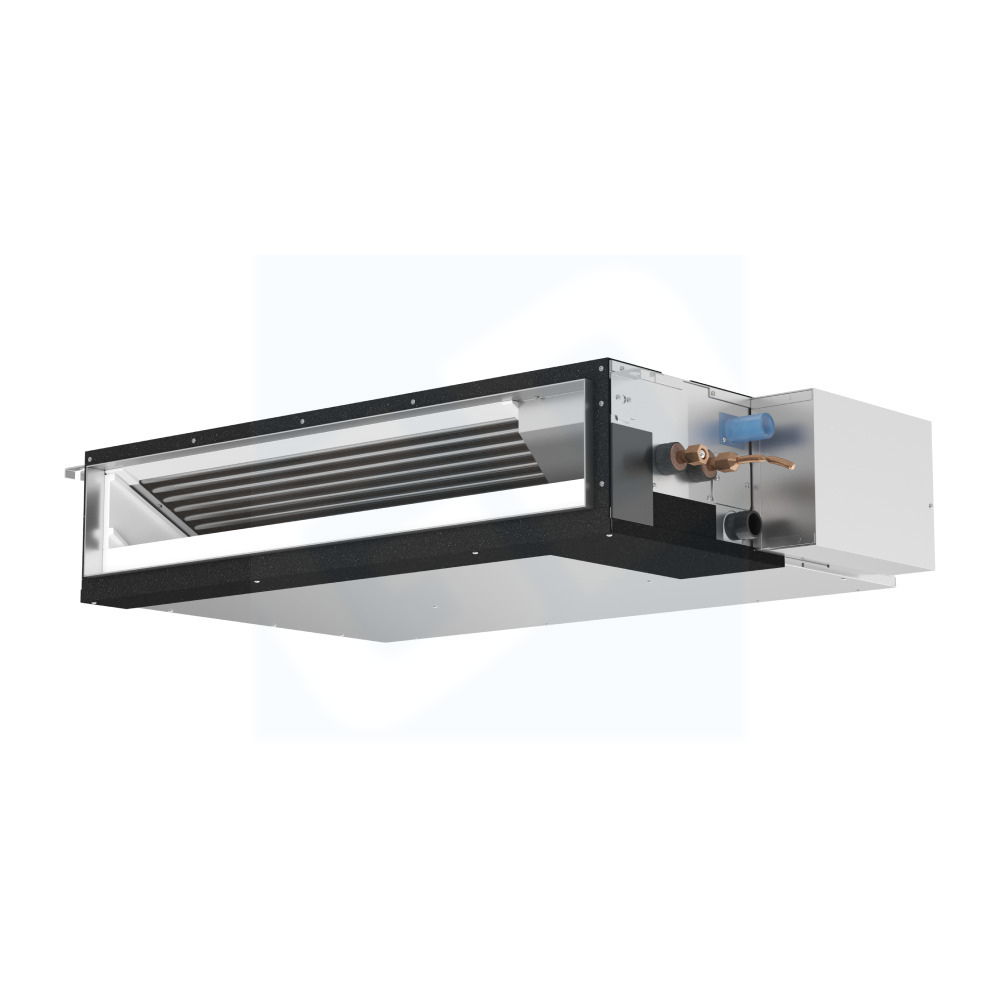

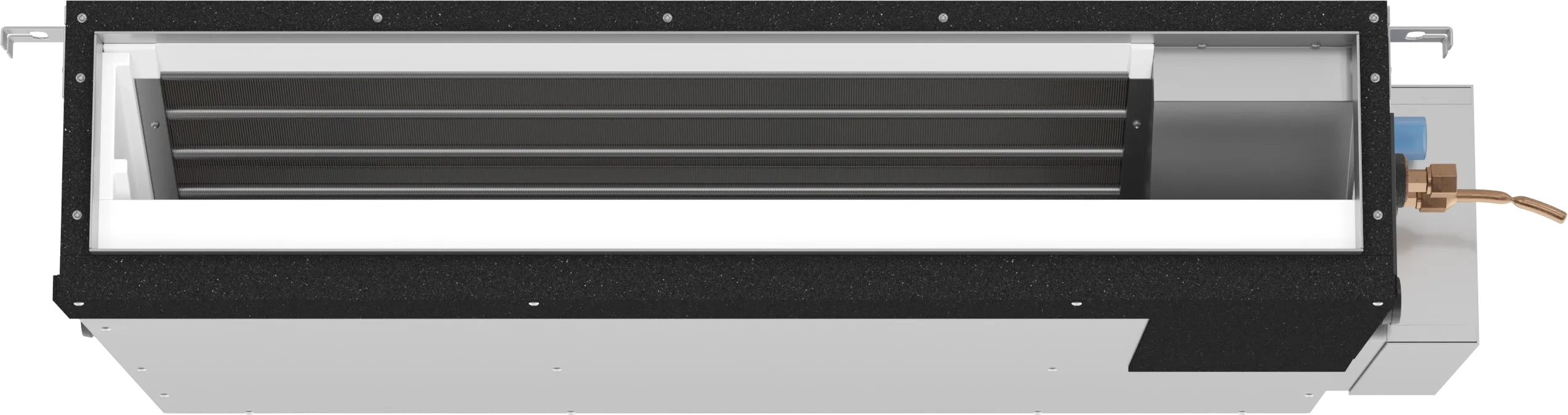

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 368 lb (Mitsubishi 225 lb + Mitsubishi 40 lb + Mitsubishi 98 lb + Mitsubishi 5 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 9,000 BTU and 12,000 BTU
• Refrigerant Type: R454B
• SEER2 Rating: Up to 21.50
• Heating Capacity: Up to 48,000 BTU
• Voltage: 208/230V
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): 7-7/8 H x 31-1/8 W x 27-9/16 D (9k) and 7-7/8 H x 39 W x 27-9/16 D (12k)
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it ideal for homes and offices that require efficient climate control across different areas. The outdoor unit is compatible with M-Series and City Multi indoor units, while the concealed duct units can be installed discreetly in various locations. The branch box facilitates the connection of multiple indoor units, ensuring optimal refrigerant flow and temperature maintenance.
