Mitsubishi Multi-Zone 48000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+15K+18K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric components designed to optimize heating and cooling efficiency across multiple zones. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse of this system, capable of connecting to up to eight indoor units, making it ideal for both residential and commercial applications. Complementing this unit are three concealed duct air handling units (AHUs) - the SEZ-AD12NL, SEZ-AD15NL, and SEZ-AD18NL - each providing discreet and effective climate control. The PAC-LMA30BC branch box ensures balanced refrigerant distribution, enhancing the overall performance of the system. Together, these components create a versatile and efficient HVAC solution tailored for diverse environments.

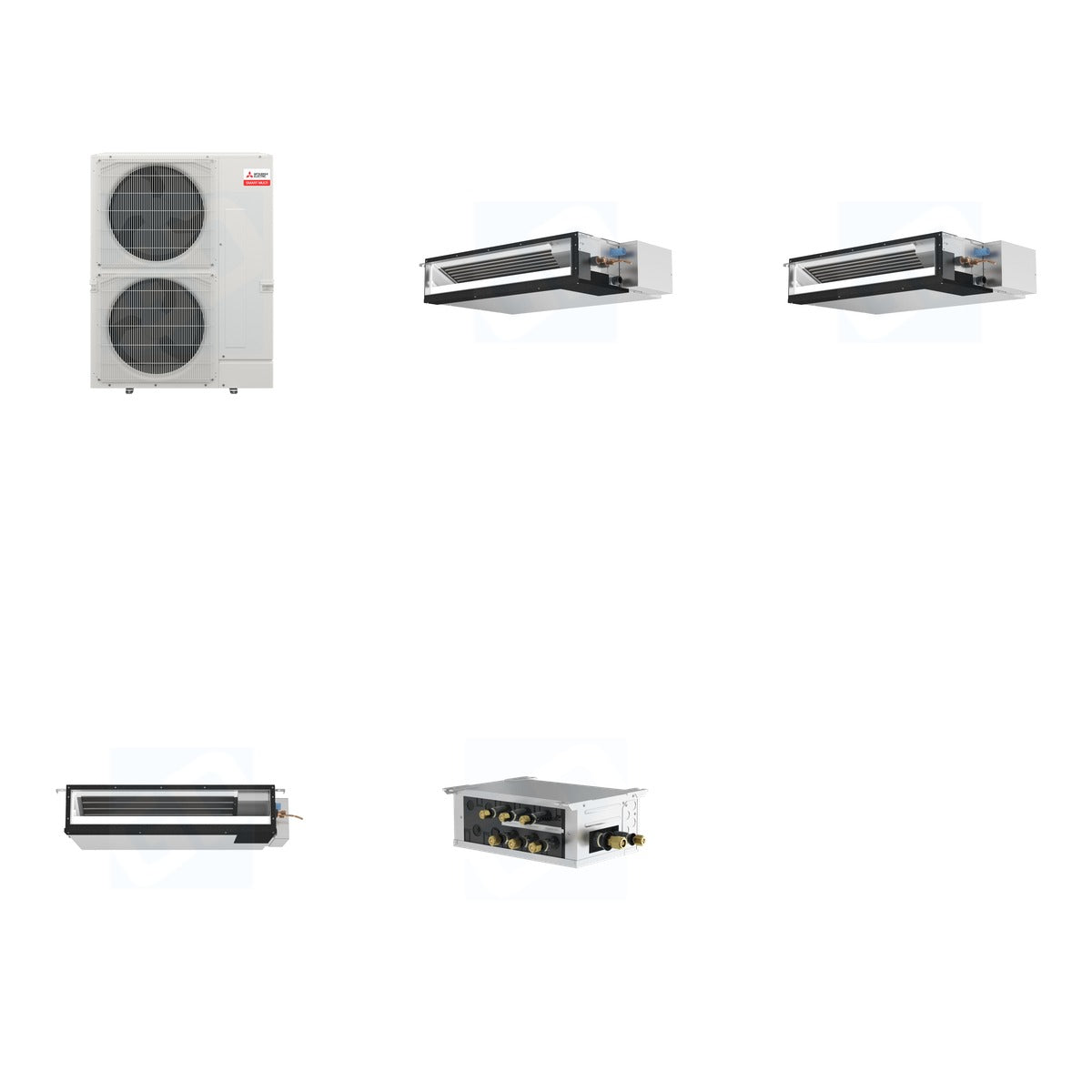

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

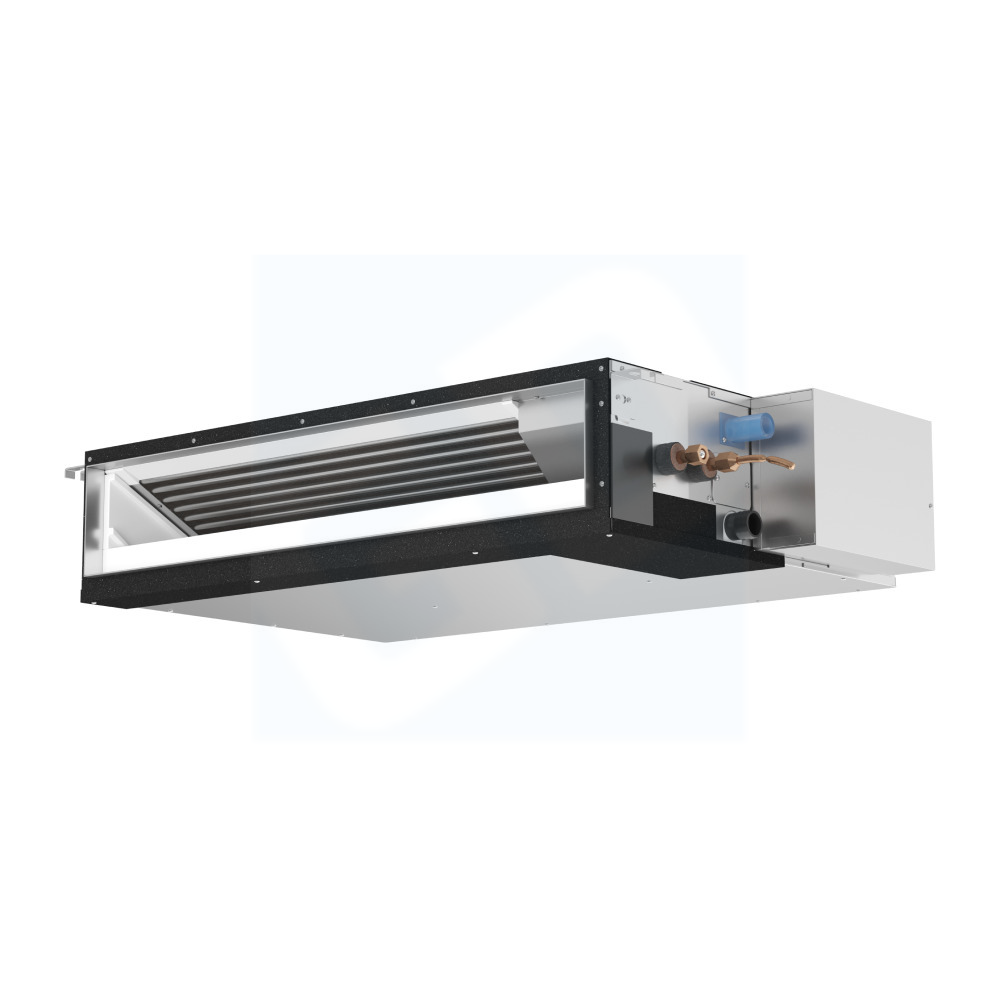

• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 455 lb (Mitsubishi 225 lb + Mitsubishi 49 lb + Mitsubishi 118 lb + Mitsubishi 58 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, multi-zone compatible, dimensions 41-11/32 x 13 x 52-11/16 inches
• SEZ-AD12NL: 12,000 BTU, R454B refrigerant, dimensions 39 x 27-9/16 x 7-7/8 inches, 208/230V
• SEZ-AD15NL: 15,000 BTU, R454B refrigerant, concealed duct design
• SEZ-AD18NL: 18,000 BTU, R454B refrigerant, dimensions 46-7/8 x 27-9/16 x 7-7/8 inches, WiFi enabled
• PAC-LMA30BC: connects up to 3 indoor units, dimensions 17-3/4 x 11-1/16 x 6-3/4 inches

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling applications, making it suitable for both residential and commercial systems. The components work seamlessly together, with the outdoor unit connecting to multiple indoor units through the branch box, ensuring efficient climate control across various spaces.
