Mitsubishi Multi-Zone 48000 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+9K

Description

This comprehensive HVAC bundle includes essential components designed to work seamlessly together for optimal heating and cooling performance in multi-zone environments. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting up to 12 indoor units, making it ideal for both residential and commercial applications. Paired with two Mitsubishi Electric SEZ-AD09NL Concealed Duct AHUs, this bundle ensures efficient temperature control across various spaces while maintaining a discreet installation. The inclusion of the PAC-LMA30BC 3-Port Branch Box facilitates balanced refrigerant distribution, enhancing system efficiency and reliability. Together, these components create a robust solution for diverse heating and cooling needs.

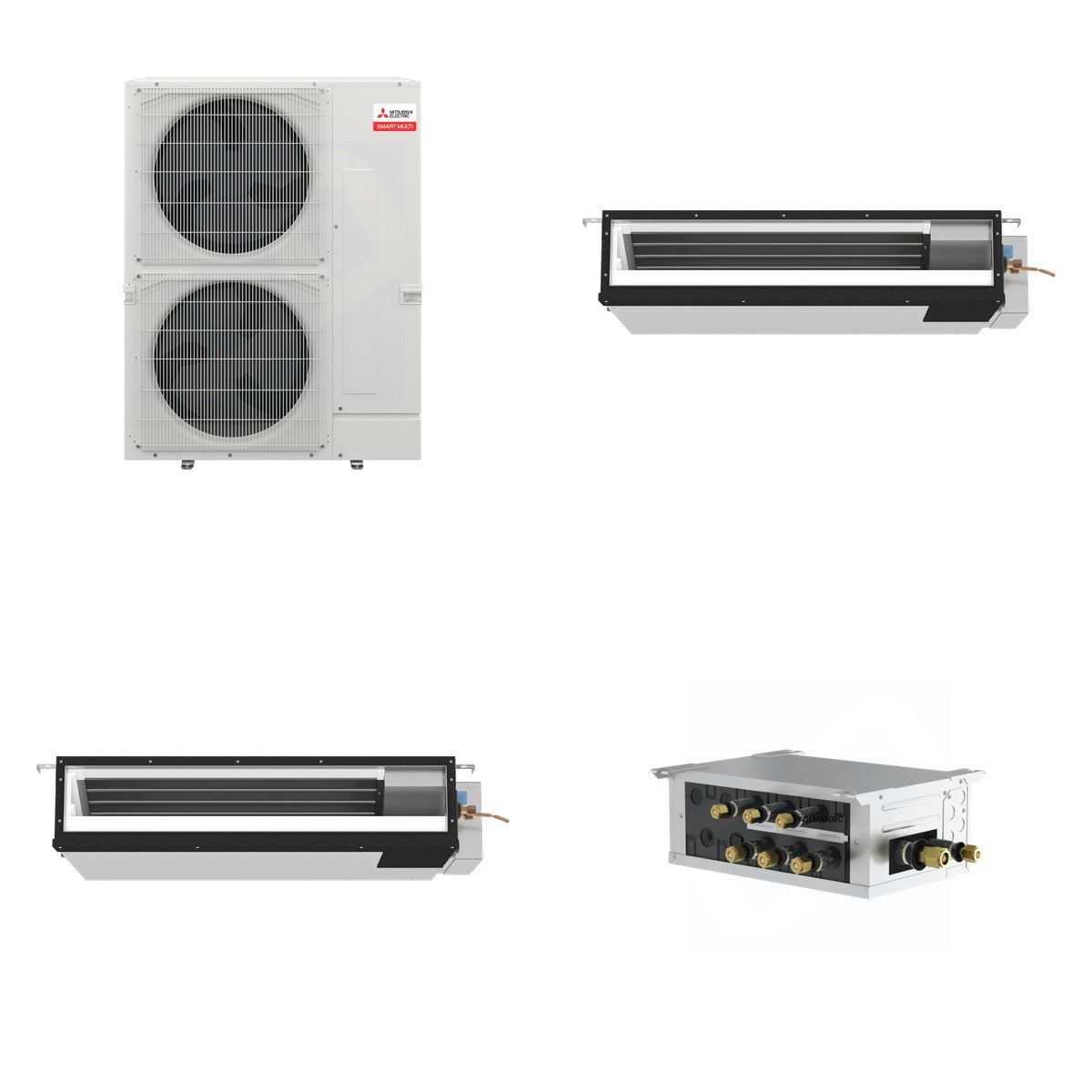

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

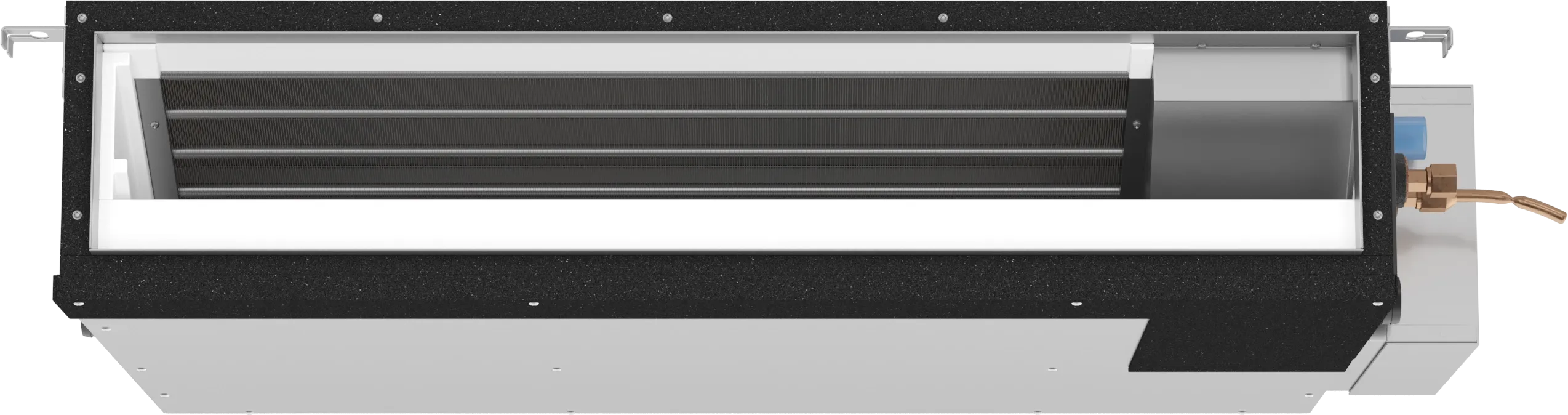

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 310 lb (Mitsubishi 225 lb + Mitsubishi 80 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• SEZ-AD09NL: 9,000 BTU, 208/230V, R-454B refrigerant
• PAC-LMA30BC: Supports 3 indoor units, R454B compatible
• Dimensions: MXZ-SM48NL - 41-11/32 W x 13 D x 52-11/16 H
• Dimensions: SEZ-AD09NL - 31 1/8 W x 27 9/16 D x 7 7/8 H
• Dimensions: PAC-LMA30BC - 17 3/4 W x 11 1/16 D x 6 3/4 H

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The MXZ-SM48NL outdoor unit is compatible with M-Series and City Multi indoor units, while the SEZ-AD09NL ducted units can be installed in various configurations. The PAC-LMA30BC branch box enhances system performance by ensuring balanced refrigerant flow among connected indoor units.
